Exhaust gas recirculation faults usually start as a nuisance and end as a drivability problem: rough idle, weaker pull, more smoke, and sometimes an emissions failure. This article breaks down what the EGR system does, how to tell when the valve is the real problem, what an EGR valve replacement involves, what it costs in the UK, and when a thorough clean is still the better move.
The decision comes down to fault type, access, and cost
- The EGR valve lowers NOx by recirculating a controlled amount of exhaust gas back into the intake.
- Rough idle, hesitation, black smoke, and an engine management light are the clues I would trust first.
- Cleaning can work when soot is the issue, but a failed actuator, split diaphragm, or stuck valve usually means replacement.
- UK prices are wide: cleaning often lands around £100-£180, while replacement commonly sits around £265-£372 and can climb above £500 on awkward cars.
- Bypassing the system is not a harmless shortcut in the UK; keep the emissions hardware intact.
What the valve does and why it clogs
The EGR valve is a controlled path between the exhaust and the intake. Under the right conditions, it feeds a small amount of spent exhaust back into the engine so combustion temperature drops and NOx emissions fall. That is useful for emissions, but it also means the valve lives in a dirty environment where soot, oil vapour, and short-trip driving can leave sticky deposits behind.
In my experience, diesel engines complain about this more often than petrol engines, mainly because soot loading is heavier and the system works harder. When the valve sticks open, the engine can run badly at idle and low speed; when it sticks closed, combustion temperatures rise and emissions go the wrong way. Once you understand that balance, the symptoms become easier to read.
That is the point where most owners start noticing a change in the way the car feels, which is why the next section matters so much.
How the fault usually shows up in real driving
Drivers often notice the problem before a scanner does. The car may idle unevenly, hesitate when pulling away, feel flat during overtakes, or start smoking more than usual under load. The engine management light can come on as well, often with flow-related codes such as P0401 or P0402, although the exact code set depends on the vehicle.
| Symptom | What it often points to | Why it matters |
|---|---|---|
| Rough idle or stalling | Valve stuck open or heavy carbon build-up | The engine is getting exhaust gas when it should be breathing clean air |
| Hesitation or weak acceleration | Valve stuck closed or flow restriction | Combustion temperature and air-fuel balance drift out of range |
| Black smoke | Poor recirculation control or a deeper fuelling issue | Emissions are already moving in the wrong direction |
| Higher fuel use | Engine compensating for poor combustion | The fault is costing money every mile |
| Emissions test failure | EGR system not doing its job | The repair has become time-sensitive |
If the symptoms are light and intermittent, I still want to confirm the fault before ordering parts. That diagnosis step saves a lot of unnecessary spending.
How I diagnose the fault before ordering parts
I would not replace the valve on guesswork. A proper check starts with the fault codes, then moves to live data so you can see whether the ECU is commanding EGR flow and whether the valve is actually responding. From there, I look for damaged vacuum hoses, loose connectors, soot blockage in the intake, and any sign that the cooler or related sensors are involved.
- Read codes and freeze-frame data.
- Check commanded versus actual EGR operation.
- Inspect hoses, wiring, and actuator movement.
- Look for intake carbon, coolant loss, or a leaking cooler on diesel setups.
- Decide whether a clean is likely to last or whether the part is mechanically worn.
The important point is this: a code tells you where to look, not always what to buy. Once you know whether the fault is soot, wiring, vacuum supply, or internal wear, the repair decision becomes much clearer.
That diagnosis tells you whether cleaning or replacement is the sensible next move.

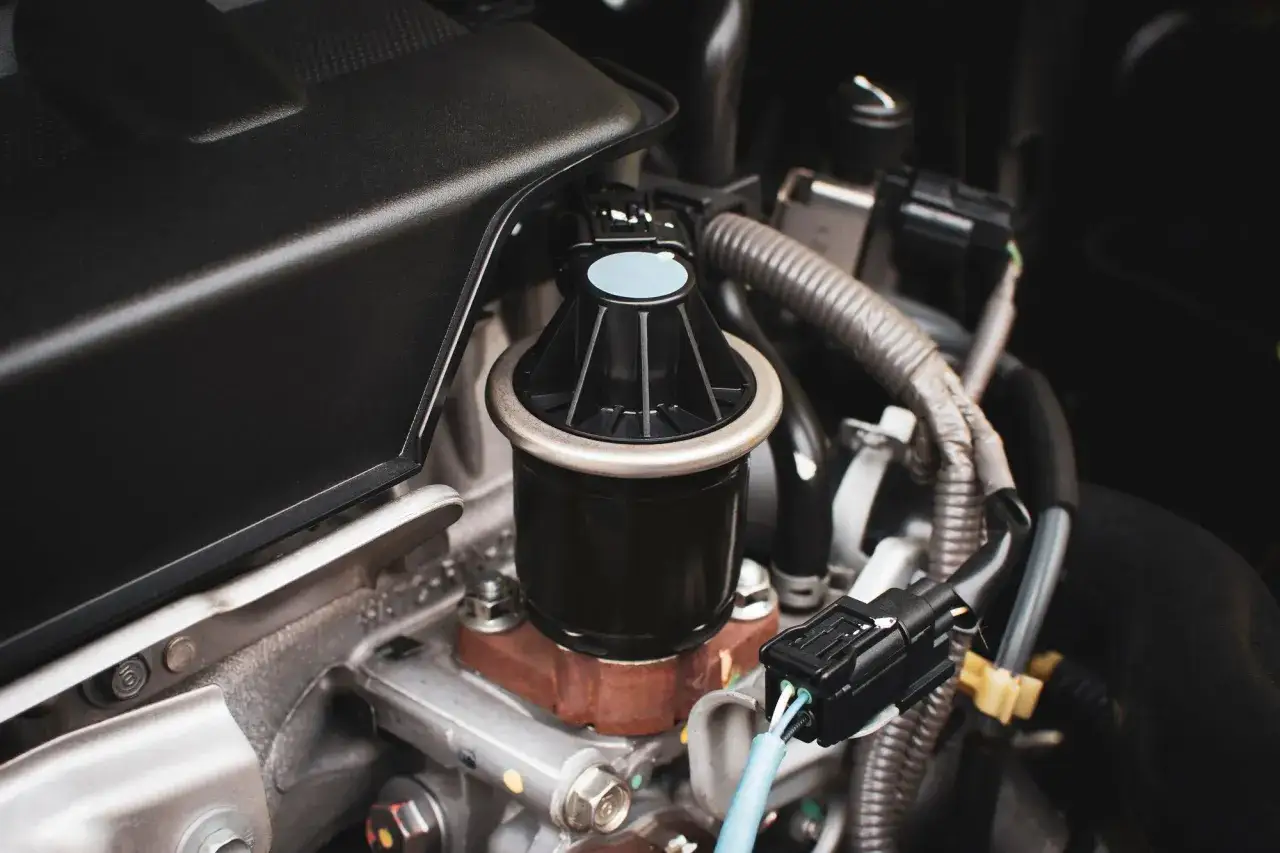

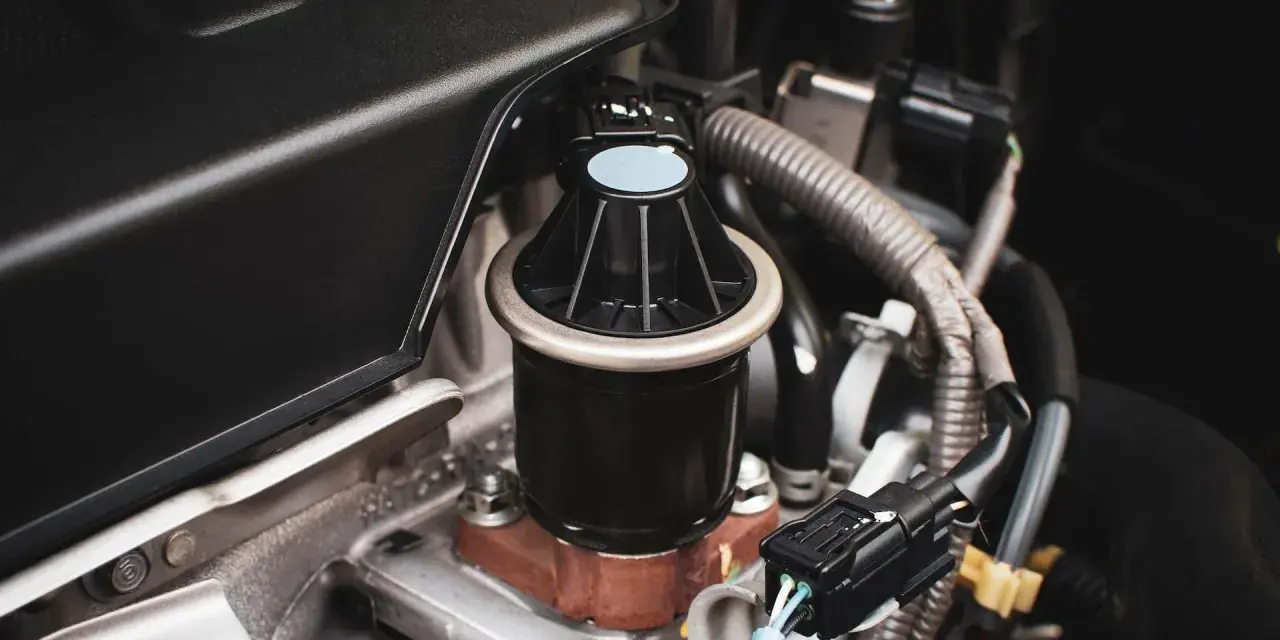

What an EGR valve replacement actually includes
On a simple engine, the job is a fairly direct swap. On a tightly packaged diesel, it can be half a day of awkward access, pipework removal, and coolant handling. The basic sequence is usually the same: gain access, disconnect the intake and electrical or vacuum connections, remove the old valve, fit a new gasketed unit, clear the codes, and road test the car.
- Remove the engine cover, ducting, or pipework that blocks access.
- Disconnect the electrical plug, vacuum line, or coolant hoses if the cooler is part of the assembly.
- Unbolt the old valve and clean the mounting face properly.
- Fit the replacement part with the correct seals and torque settings.
- Reset fault codes and, where required, run adaptation or relearn procedures.
Not every car uses a standalone valve. Some have the cooler, valve, and associated pipework bundled into a much bigger assembly, which is one reason the labour bill can jump so sharply. That leads directly to the question people really care about next: whether cleaning is enough, or whether the valve has crossed the line into replacement territory.
Cleaning or replacing the valve
Cleaning is worth considering when the problem is mainly soot and the valve still moves freely. Replacement is the better call when the actuator is weak, the diaphragm is split, the valve keeps sticking after cleaning, or the electronics no longer read correctly. I usually treat cleaning as a cost-saving test, not a magic cure.
I am also cautious about additives as a cure-all. They can help with light soot, but they will not bring a failed actuator or a damaged sensor back to life.
| Option | Best for | Typical UK cost | What it does well | Limit |
|---|---|---|---|---|
| Professional clean | Carbon build-up with a mechanically sound valve | £100-£180 | Cheaper, quicker, often enough on lightly sooted systems | Won't fix a dead actuator or worn internal part |
| Full swap | Sticking, electrical faults, repeat failures | £265-£372 on average, sometimes £150-£650 | Deals with genuine component failure | More labour and a bigger bill on difficult engines |
If the valve is buried under the inlet manifold or tied into the cooler, a clean can still cost a lot in labour because the unit has to come off anyway. That is why access matters almost as much as the part itself.
What it should cost in the UK in 2026
For a straightforward job, I would expect the repair to sit somewhere in the mid hundreds once parts and labour are added. Recent UK pricing data puts the average replacement cost around £265 to £372, with many jobs landing between £150 and £650 depending on the car, the garage, and how much dismantling is needed. On some difficult diesels, the labour alone can stretch to 5 to 6 hours.Labour rates also matter. Quoted hourly rates can be about £50-£100 in London and £35-£50 in lower-demand towns, so two otherwise similar jobs can land very different bills.
| Scenario | What usually drives the price | Typical UK range |
|---|---|---|
| Easy-access petrol or small diesel | Simple access, standalone valve, modest labour | £150-£300 |
| Average family car | Standard part cost, 1-3 hours labour | £265-£400 |
| Compact diesel with tight packaging | Cooler, pipework, and extra strip-down time | £400-£650+ |
| Example make | Average cost |
|---|---|
| BMW | £243 |
| Vauxhall | £262 |
| Nissan | £320 |
| Ford | £340 |
| Audi | £539 |
| Volkswagen | £566 |
| Honda | £701 |
Manufacturer matters too. BMW and Vauxhall examples tend to sit lower in some UK datasets, while Audi, Volkswagen, and Honda can be noticeably higher when parts and labour are both factored in. I would always compare quotes on the actual registration rather than rely on a headline average, because access, not just the badge, changes the bill.
The bill matters, but in the UK the legal side matters just as much.
Why deleting or bypassing the system is the wrong shortcut
This is the part people try to dress up as a saving, but it is usually a false economy. UK guidance is clear that emissions equipment fitted by the manufacturer should be maintained and not bypassed or tampered with. In practice, that means a delete can create legal risk, MOT problems, insurance questions, and a car that is harder to sell honestly later on.
I would also be wary of the technical downside. Removing the system may hide soot-related symptoms for a while, but it does not fix the reason the engine was producing excess deposits in the first place. If the underlying issue is intake contamination, injector wear, oil consumption, or a cooling problem, you have only masked the fault.
That is why the smartest repair is the one that restores the original system and then addresses the cause that made it fail.
What matters next is avoiding the same fault twice.
How to keep the new valve working longer
The best way to make the repair last is to stop the engine from living in the same dirty state that killed the old valve. For me, that means looking beyond the valve itself and checking how the car is actually used.
- Fix short-trip habits where possible. Diesels that never properly warm up clog faster.
- Use the correct oil and service interval, because bad oil and long intervals increase soot and sludge.
- Deal with boost leaks, faulty thermostats, and injector issues early, since all of them can raise deposit levels.
- Do not ignore the engine management light. A small flow fault is cheaper than a worn cooler or clogged intake.
- If the car mostly does city miles, give it an occasional longer run so exhaust temperatures stabilise.
When those basics are in order, a replacement valve usually behaves like a normal service item instead of becoming a repeat expense, and if the fault comes back, I would look for the cause of the soot before blaming the new part.
