Where Are Spark Plugs? Find Them Fast in Any Car Engine

Finding the spark plugs is usually straightforward once you know what you are looking at, but the exact access point changes with the engine layout. In most petrol cars, the plugs sit in the cylinder head and are hidden under coil packs, ignition leads, or an engine cover. I’ll show you the usual locations, the layouts that make them easy or awkward to reach, and the checks that save time before you start pulling parts off the bonnet side of the engine bay.

Start with the cylinder head, not the battery

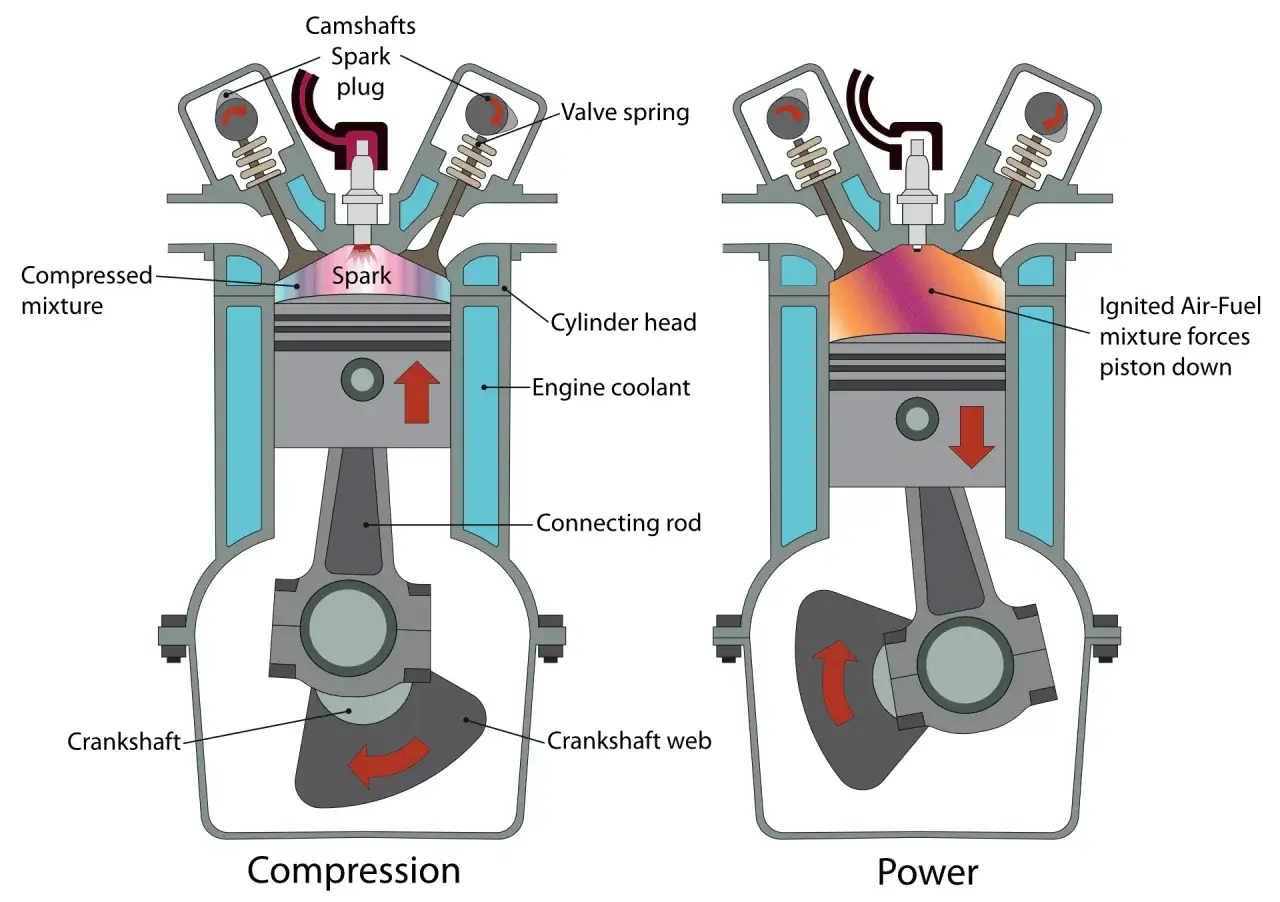

The first place I look is the top of the cylinder head. That is where the spark plugs live, because each plug has to reach directly into a combustion chamber and fire the air-fuel mixture at the right moment. On many petrol engines, you will not actually see the plug at first glance; you will see the ignition coil sitting on top of it, or a thick HT lead running to it on older cars.

That is why people sometimes open the bonnet, stare at a fairly crowded engine bay, and still miss the plugs completely. They are often tucked beneath plastic engine covers, beneath a row of coil packs, or on the side of the engine where access is tighter than it looks. In compact transverse engines, the rear bank can be especially awkward because it sits closer to the bulkhead.

The exception is important: if you are dealing with a diesel, stop looking for spark plugs. Diesel engines use glow plugs for cold starting, which is a different part with a different job. Once you have confirmed you are working on a petrol engine, the next step is to match the layout to the way the car is built.

That leads naturally to the part most drivers need next: which engine layouts make plug access simple, and which ones hide them from view.

What the engine layout tells you about access

The location is consistent in principle, but the access changes a lot depending on engine design. I always think about the layout first, because it tells you whether you are likely to see the plugs immediately or whether you will need to remove trim, a cover, or an intake component before you get there.

Engine layout	Where the plugs usually sit	What usually blocks access	What that means in practice
Inline 3, 4, or 5-cylinder petrol engine	On top of the cylinder head, in a straight row	Plastic engine cover, coil packs, air ducting	Often the easiest layout to inspect and service
V6 or V8 petrol engine	Split between two cylinder banks	Rear bank packaging, intake manifold, heat shielding	Front plugs may be easy; rear plugs can be time-consuming
Coil-on-plug petrol engine	Directly under each individual ignition coil	Coil packs and plastic covers	You often remove one coil at a time to reveal each plug
Older petrol engine with HT leads	Under the leads on the cylinder head	Lead routing, distributor hardware on very old cars	Easy to trace if the lead order is intact and labelled
Diesel engine	No spark plugs	Glow plugs sit in the cylinder head instead	Different part, different checks, different service job

That layout is the real clue. A small hatchback with an inline-four may give you clear access from above, while a V6 can hide the rear bank so well that you need patience and the right tools. In other words, the engine design tells you whether this is a five-minute visual check or a more involved service job.

Once you know the layout, the next step is to find the plugs without guessing or forcing anything.

Work through the engine bay in a sensible order

I prefer a simple sequence when locating spark plugs. It keeps the job calm and avoids the common mistake of removing the wrong component first.

1. Open the bonnet and identify the engine cover, if there is one.
2. Look for coil packs or HT leads running across the top of the cylinder head.
3. Trace each coil or lead to the point where it enters the engine.
4. Remove the plastic cover only if it is clearly meant to come off by hand or with simple fasteners.
5. If the plugs are still hidden, check whether the intake ducting or upper manifold is blocking the rear bank.
6. Confirm the exact cylinder layout in the handbook before touching a tight or unfamiliar engine.

On many modern petrol engines, the ignition coil sits directly on top of the spark plug. That design is called coil-on-plug, and it is common because it removes the need for long HT leads and gives more precise ignition control. On older engines, the lead itself is more visible, so you can usually follow it straight to the plug cap.

One practical tip I use every time: if the engine bay is dusty or covered in road grime, blow or wipe the area clean before removing anything. That keeps dirt from falling into the plug wells when the coils come out.

Once you can identify the plug positions, the next problem is making sure you are not confusing them with other ignition parts.

Avoid confusing the plugs with the coils and leads

This is where a lot of DIY jobs go sideways. The spark plug is the threaded part that sits inside the cylinder head. The ignition coil, HT lead, or coil boot is the part attached to the top of it. If you remove the visible top component and expect to see the whole plug immediately, you may think you are looking in the wrong place when you are actually only one layer away.

• Ignition coil - converts low-voltage battery power into the high voltage needed to fire the plug.
• Coil boot - the rubber sleeve that connects the coil to the top of the plug.
• HT lead - a thick high-tension cable used on older ignition systems to carry spark to the plug.
• Glow plug - a diesel starting aid, not a spark plug.

If your car uses coil-on-plug ignition, the coil normally sits directly above the plug well, so the plug itself is hidden until the coil is removed. On older systems, the lead may be the obvious topmost part, especially if the engine was built before individual coil packs became standard. Either way, the plug is the lower component in the chain.

That distinction matters because it prevents a lot of unnecessary pulling, prying, and broken clips. It also helps when you are trying to diagnose a misfire, because a weak coil and a worn plug can produce similar symptoms even though they are different faults.

Sometimes the plug location is obvious in theory, but the real problem is physical access. That is where the job becomes more demanding.

When the plugs are buried behind other parts

Some engines make access awkward enough that I would not describe the job as simple maintenance. The spark plugs may sit under an upper intake manifold, behind a cowl panel, or deep in a narrow plug well with almost no side clearance. In those cases, the location is still the same, but reaching it cleanly is another matter.

Common obstacles include:

• An engine cover clipped over the coil packs.
• A rear bank pushed close to the bulkhead in a V-engine.
• An intake manifold that sits directly over the plugs.
• Deep plug wells that hold debris and moisture.
• Seized coils or brittle boots that stick to the plug.

If you have to remove an intake component to reach the plugs, I would slow down and check the procedure before starting. That usually means replacing a gasket, keeping track of fastener lengths, and working with more care around the intake ports. It is still a normal repair on many cars, but it is no longer a casual five-minute inspection.

There is also a line where DIY stops making sense. If the engine bay is cramped, the plugs are on the rear bank, or you can see damaged wiring and corroded fasteners before you start, a garage or mobile mechanic may be the better call. The point is not to avoid the job; it is to avoid turning a small service into a broken-thread problem.

Before you buy parts or book work, there are a few details I always check first because they affect both the location and the difficulty of the repair.

Check the right details before you order parts or book a garage

Two cars can share the same badge and still have very different plug locations, access points, and service intervals. That is why I rely on the exact engine code or registration-based parts lookup rather than assuming the layout from the model name alone.

These are the details that matter most:

• The exact engine size and code.
• Whether the car is petrol or diesel.
• Whether it uses coil-on-plug ignition or HT leads.
• Whether the rear plugs sit under the intake manifold.
• Whether the service schedule calls for long-life plugs or standard plugs.

As a rough guide, traditional copper plugs can come due around 20,000 to 30,000 miles, while platinum or iridium plugs often last much longer, commonly around 60,000 to 100,000 miles depending on the manufacturer and engine. Short journeys, lots of cold starts, and stop-start city use can shorten that useful life, especially on petrol cars that spend a lot of time running cold in UK traffic.

If I were ordering parts today, I would still check the handbook before I bought anything. The right plug type matters, but so does the shape of the access route. A plug that is easy to source can still be awkward to fit if the engine bay packaging is tight.

That brings me to the small service details that make the next job easier than the first one.

The small details that make the next inspection easier

When I work around spark plugs, I treat the plug location as only half the story. The other half is the condition of the area around it. If you see oil in the plug wells, cracked coil boots, corrosion on the terminals, or coolant staining near the cylinder head, those clues often tell you more than the plug itself.

A few habits make a real difference:

• Take a photo before removing any coils or leads so you can restore the routing correctly.
• Keep each coil or lead with its original cylinder unless the layout is already clearly labelled.
• Clean the area before removal so grit does not fall into the wells.
• Use the correct torque when refitting, rather than tightening by feel.
• Replace perished seals, boots, or gaskets if you have already opened the area up.

If you remember nothing else, remember this: the spark plugs are usually in the cylinder head, but the real challenge is often the engine packaging around them. Once you understand whether your car uses coils, leads, or a buried rear bank, the location stops being a mystery and becomes a straightforward maintenance check. I would always start there, because that one decision saves time, avoids broken parts, and makes the rest of the ignition job far cleaner.
