The camshaft vs crankshaft comparison matters because these two shafts do very different jobs, yet a fault in either can leave an engine rough, noisy, or unwilling to start. I’m going to break down what each part does, how they stay in sync, what modern valve timing changes, and the symptoms that help you tell one problem from the other.
What matters most at a glance
- The crankshaft turns piston movement into usable rotation for the drivetrain.
- The camshaft opens and closes the intake and exhaust valves so the engine can breathe at the right moment.
- In most four-stroke engines, the camshaft turns at half the speed of the crankshaft.
- A slipped cambelt, stretched chain, or failed phaser can throw valve timing off and cause serious engine damage.
- Rough idle, misfires, tapping from the top end, or timing codes often point to valve-train or sensor issues rather than a dead shaft.
- For UK cars, clean oil and on-time timing-belt service do more to protect these parts than most drivers realise.

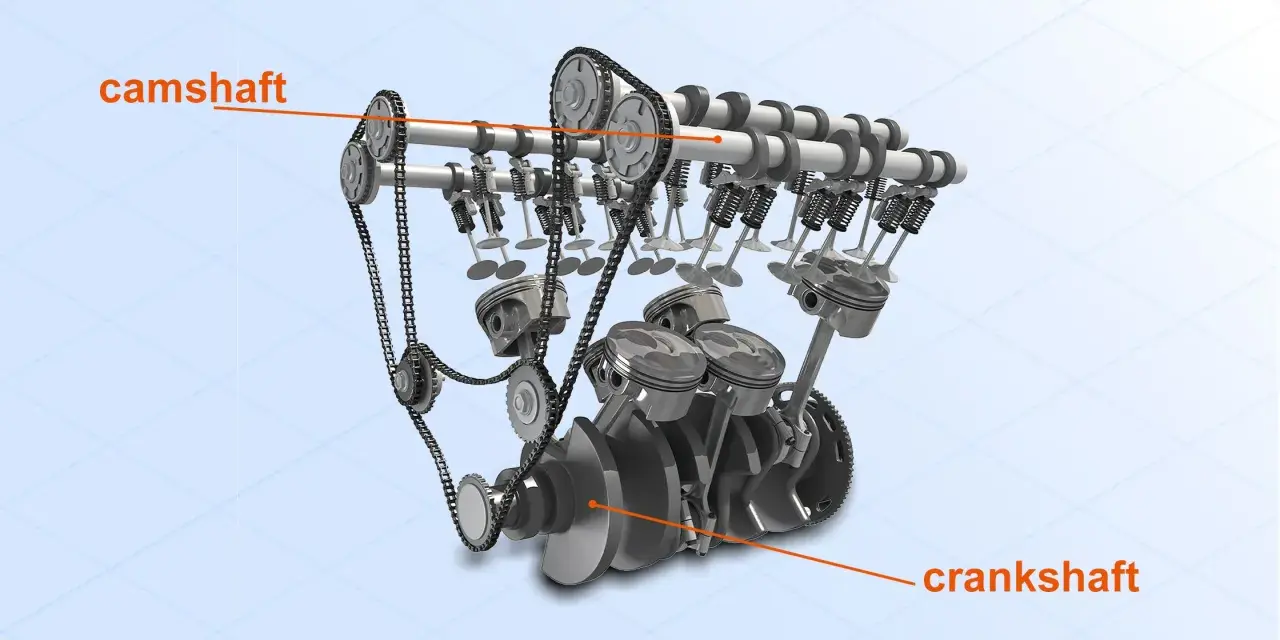

What each shaft actually does in the engine
When I explain this to drivers, I keep it simple: the camshaft manages breathing, while the crankshaft manages power output. The camshaft uses shaped lobes to open and close the valves at precise moments, which controls how much air and exhaust gas moves through the cylinders. On older pushrod engines, it works through lifters, pushrods, and rocker arms; on many modern engines, it sits in or above the cylinder head and acts more directly on the valves.
The crankshaft sits low in the engine block and converts the up-and-down movement of the pistons into rotation. That rotation goes to the flywheel, clutch or torque converter, gearbox, and eventually the wheels. In plain terms, the camshaft decides when the cylinders can breathe, while the crankshaft turns combustion into motion you can actually use.
That split sounds basic, but it explains almost every other difference between the two parts, including why timing is so unforgiving when something goes wrong.
How they differ at a glance
| Feature | Camshaft | Crankshaft |
|---|---|---|
| Main job | Controls valve timing, duration, and lift | Converts piston travel into rotary motion |
| Typical location | In the cylinder head on OHC engines, or in the block on older designs | Low in the engine block, supported by main bearings |
| What it moves | Intake and exhaust valves | Pistons through the connecting rods |
| How it is driven | By the crankshaft through a timing belt, chain, or gears | By combustion force acting on the pistons |
| Speed relationship | Usually half crank speed in a four-stroke engine | Completes two revolutions per four-stroke cycle |
| Common failure pattern | Wear from poor lubrication, timing errors, or valve-train problems | Bearing damage, oil starvation, or severe internal engine failure |
| What the driver notices | Rough idle, misfire, top-end tapping, poor breathing | Knocking, stalling, low oil pressure, no-start, major vibration |
The important thing here is not just that the parts are different, but that they are locked together by timing. The crankshaft makes the engine go round; the camshaft decides whether the valves are in the right place when that happens. That brings us to the four-stroke cycle, where the relationship becomes obvious.
How they work together in a four-stroke cycle
Most road cars and vans use a four-stroke petrol or diesel engine, and that cycle is where the whole relationship makes sense. The crankshaft completes two full revolutions during one cycle, while the camshaft completes one. That 2:1 ratio is not an interesting detail for engineers only; it is the reason the valves open exactly when the pistons need them to.
Here is the simple version. On the intake stroke, the camshaft opens the intake valve so the piston can pull air, or air-fuel mixture, into the cylinder. During compression, both valves stay shut. On the power stroke, combustion drives the piston down and turns the crankshaft. On the exhaust stroke, the camshaft opens the exhaust valve so burnt gases can leave the cylinder and move into the exhaust system.
If that timing is even slightly off, the engine loses efficiency fast. A belt that jumps a tooth or a chain that stretches can shift valve timing enough to cause misfires, poor running, or, on interference engines, valve-to-piston contact. Not every engine is interference, but the risk is serious enough that I treat any timing fault as urgent rather than cosmetic.
Once you see that rhythm, the next question is how modern engines adjust it without breaking the basic relationship.
Why modern engines make the picture more subtle
Older engines often used a fixed cam profile and fixed timing. Modern engines still rely on the same basic cam-and-crank relationship, but they add variable valve timing to improve low-speed torque, emissions, fuel economy, and high-rpm breathing. In practice, that means the camshaft can be advanced or retarded relative to the crankshaft by a phaser, usually controlled by oil pressure and an electronic solenoid.
That is where good maintenance matters more than many owners expect. Dirty oil, the wrong viscosity, or overdue oil changes can upset cam phasers and timing components long before the engine feels dramatically wrong. I see this as one of the most misunderstood areas of engine ownership: a modern engine may not have a broken camshaft at all, but it can still run badly because the timing system can no longer hold the exact position it wants.
Engine layout also changes the picture. A pushrod engine uses a very different mechanical path to open the valves than a dual overhead cam engine, but the principle stays the same. The camshaft still controls the valves, and the crankshaft still provides the base rotation that everything else follows. The layout just changes how direct or complicated that link is.
That complexity is why symptom-based diagnosis matters, because not every engine complaint points to the same part.
Signs of trouble and what they usually mean
When one of these parts or its timing system starts to fail, the symptoms usually show up before total failure. The trouble is that the signs overlap, so I would never replace a camshaft or crankshaft just because one symptom looks familiar. The smart move is to read the pattern first.
| Symptom | Often points to | Why it matters |
|---|---|---|
| Rough idle or intermittent misfire | Cam timing issue, worn lobes, phaser fault, or valve-train wear | The cylinders are not breathing at the right time |
| Top-end tapping or ticking | Camshaft wear, low oil flow, lifter or rocker problems | Valve-train parts are not being lubricated or loaded correctly |
| Deep knocking from the lower engine | Crankshaft bearing wear or oil starvation | This is often more serious and should not be ignored |
| Hard starting or random stalling | Crankshaft position sensor fault, crank trigger issue, or severe crank damage | The ECU may not know where the engine is in its cycle |
| Timing-related fault codes such as P0011 or P0017 | Cam/crank correlation problem, phaser issue, chain stretch, or belt slip | The engine timing no longer matches what the ECU expects |
| Metal in the oil or oil filter | Internal wear at the cam lobes, journals, bearings, or other moving parts | Usually a sign to stop guessing and inspect properly |
One detail that saves a lot of money is this: a fault code involving the camshaft or crankshaft does not automatically mean the shaft itself is broken. Sensors, phasers, chains, belts, tensioners, and even oil quality can trigger the same warning. That is why the next section is about what I check before anyone starts ordering expensive parts.
The checks that stop a timing fault becoming a rebuild
For UK owners, I would start with the boring stuff, because that is where the money is usually saved. First, check whether the engine uses a cambelt or a timing chain and look for the service interval in the handbook or service history. A routine cambelt change in the UK often sits around the £469 mark on average, according to RAC, which is cheap compared with the cost of repairing bent valves, damaged pistons, or a full engine strip after timing failure.
Then look at the oil. Clean oil at the correct specification matters far more on modern engines than many people assume, especially where cam phasers are involved. If the oil is overdue, thick, contaminated, or the wrong grade, the cam timing system may start to drift or stick. On chain-driven engines, I would also listen for cold-start rattle, because that can be an early sign that tensioners or guides are losing control.
- Confirm the engine is belt-driven, chain-driven, or gear-driven before assuming the repair.
- Scan the ECU, but do not stop at the fault code; check live cam and crank correlation data if you can.
- Inspect service records for oil changes and timing-component replacements.
- Ask the garage whether the fault is electrical, mechanical, or a timing correlation issue.
- If the cambelt is due, replace the belt, tensioner, idlers, and water pump together where the design calls for it.
- Do not keep driving if you hear heavy knocking, see low oil pressure, or suspect the belt has jumped timing.
If I had to leave you with one practical rule, it would be this: treat timing faults as a diagnosis problem first and a parts problem second. The crankshaft and camshaft are both vital, but most expensive failures happen when drivers replace the wrong component or delay a simple timing repair until the damage spreads.
