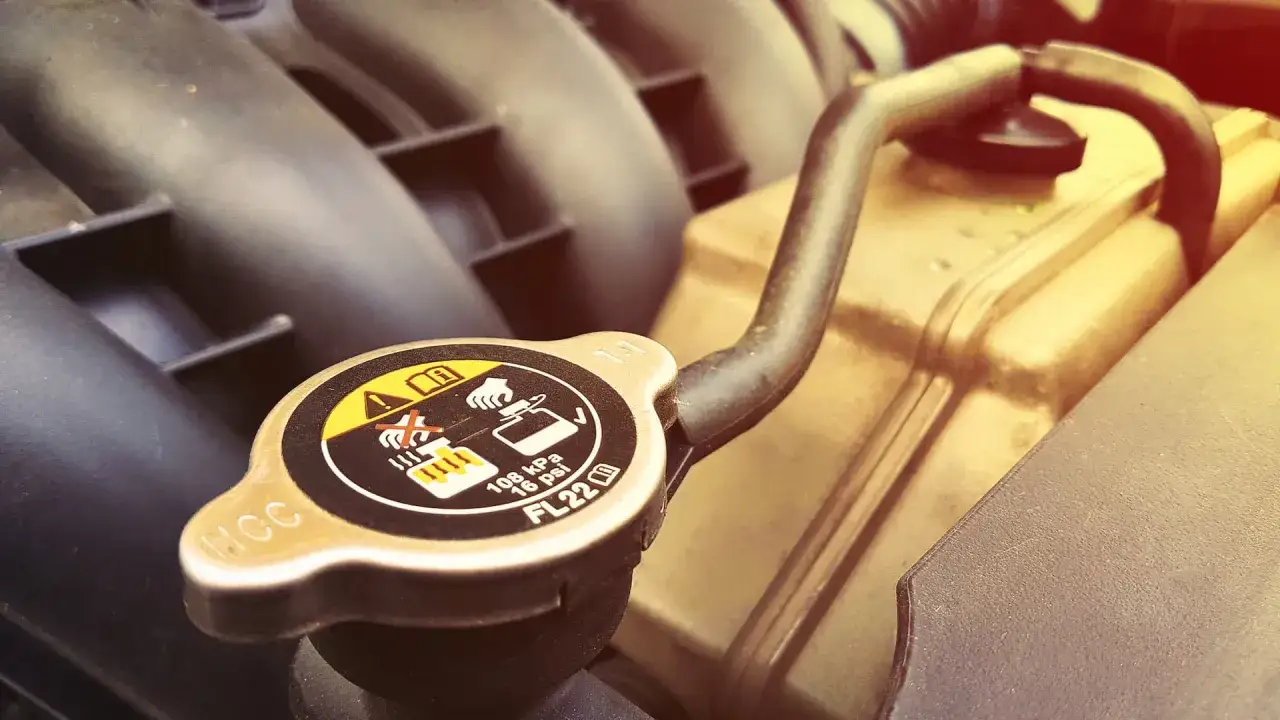

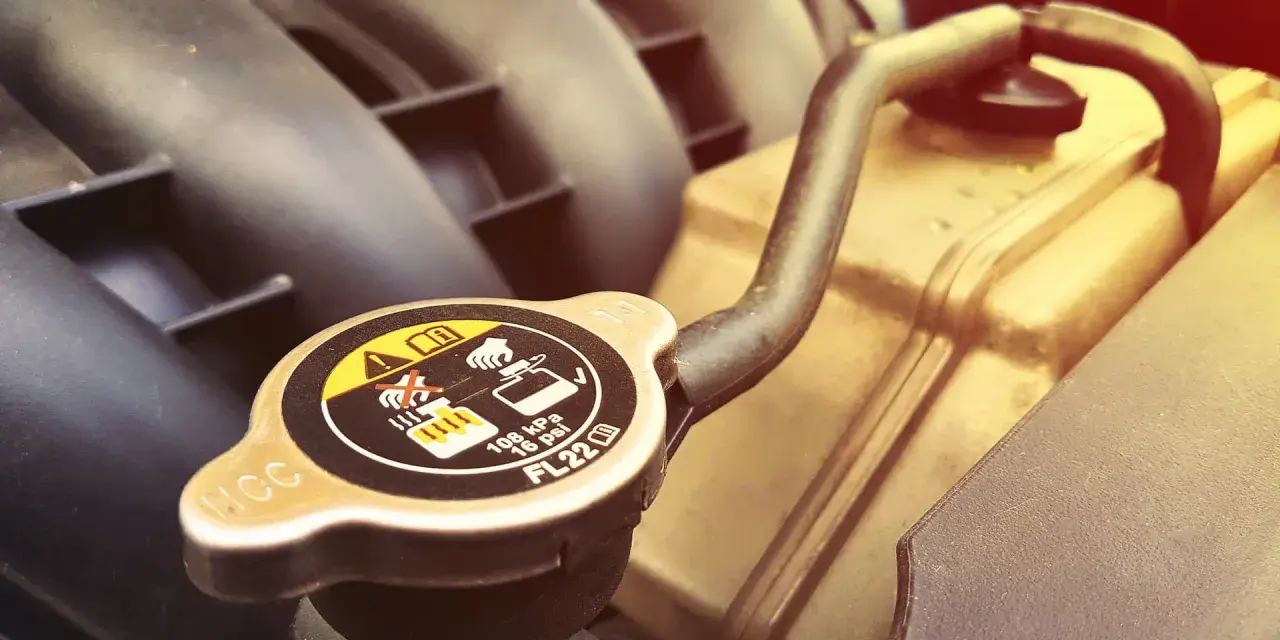

A faulty radiator cap can create a surprisingly noisy, messy cooling-system problem from a very small part. The most common bad radiator cap symptoms are usually a rising temperature gauge, coolant pushed into the expansion tank, residue around the filler neck, or a hose that looks collapsed after the engine cools. In this article I break down what those signs mean, how to check the cap safely, and when the fault is really somewhere else in the cooling system.
The quickest clues usually point to pressure loss in the cooling system
- Coolant residue around the cap usually means the seal is not holding as it should.
- Overheating in traffic can happen when the cap cannot keep the system under pressure.
- An expansion tank that keeps overfilling and then dropping often points to a faulty return valve.
- A collapsed upper hose is a classic sign that the vacuum side of the cap may be failing.
- Replacement is cheap, but only after the engine has cooled fully and the rest of the system has been checked.
The warning signs I would check first
The cap usually fails in one of two ways: it cannot hold pressure, or it cannot manage the return flow as the engine cools down. When pressure is lost, coolant boils earlier than it should, so the first clue may be a temperature gauge that climbs in traffic, not on the motorway.
| Symptom | What it usually looks like | Why I care |
|---|---|---|
| Overheating | Gauge rises at idle or in slow traffic; a warning light may appear | Weak pressure lets coolant boil too soon |
| Coolant around the cap | White or pink crust, damp filler neck, sweet smell | The seal is not holding properly |
| Expansion tank overflow | Tank looks overfilled after a drive, then low later | The cap may be venting at the wrong time or not drawing coolant back |
| Collapsed hose | Upper hose looks sucked in after cool-down | The vacuum valve may be sticking shut |
| Steam or hissing | Puff of vapour after stopping, especially after a hot run | Pressure is escaping where it should not |
One thing I watch carefully is whether the problem appears after a hill, a traffic jam or a fast motorway run, because that load pattern tells me the cooling system is being asked for more than the cap can support. That takes us into the physics behind the fault, which is simpler than most drivers expect.
Why a weak cap causes overheating and coolant loss
I think of the radiator cap as a pressure regulator, not a lid. On many passenger cars the system runs around 12 to 15 psi, roughly 0.8 to 1.0 bar, which raises the coolant’s boiling point and helps the engine stay stable under load.
- Pressure valve failure means the cap opens too early, so coolant is pushed into the overflow path before it should be.
- Seal wear lets pressure leak away, which lowers the boiling point and can create hot spots in the cylinder head.
- Vacuum valve failure means coolant does not return from the expansion tank when the engine cools, so the system can ingest air instead.
- Wrong cap rating can create the same symptoms as a worn cap, because the spring may be too weak or too strong for the vehicle.
That last point matters more than people think. A cap that is simply “close enough” can still upset the balance of the whole cooling circuit, which is why I always match the pressure rating and neck style instead of guessing. From there, the sensible next step is to test the cap properly rather than replacing parts at random.
How I check the cap safely without tearing the system apart
Start only when the engine is fully cold. If the car has been hot, I wait longer than I think necessary; a pressurised system can spit scalding coolant even after the temperature gauge drops. Never crack the cap open on a hot engine.
- Inspect the rubber seal for cracks, hardening, flattening or missing sections.
- Check the spring and locking tabs for corrosion, bent metal or weak tension.
- Look at the filler neck for crusty deposits, which usually point to a small pressure leak.
- Check the coolant level in the expansion tank and note whether it keeps changing between drives.
- Squeeze the upper hose when cold; if it feels abnormally soft or stays collapsed, the vacuum side of the cap may be suspect.
- Use a radiator-cap pressure tester if you have one, or have a garage test both the cap and the system.
If the cap looks tired, I would not overthink it. It is a low-cost wear item, and a failed seal is far easier to confirm than an intermittent overheating fault. The trouble is that a bad cap can mimic bigger faults, so the next section matters just as much as this one.
When the symptoms point to another cooling fault
The awkward part is that the cap is not the only part that can cause these warnings. A thermostat that sticks shut, a weak electric fan, a failing water pump, a blocked radiator or even a head-gasket leak can produce some of the same behaviour.
| If you see this | The cap is possible, but I would also check | Why |
|---|---|---|
| Overheating only at idle | Cooling fan, fan relay, airflow through radiator | The cap affects pressure; idle overheating often points to airflow instead |
| Constant coolant loss with no external drip | Head gasket, water pump weep hole, radiator seam | The cap can vent coolant, but it should not make fluid vanish repeatedly |
| Bubbling in the radiator after a new cap | Combustion gas in coolant, head gasket test | Air or exhaust gas can enter the system and keep pushing coolant around |
| Top hose stays cold while the engine gets hot | Thermostat stuck shut | That is a circulation fault, not a cap fault |
| Coolant stains at a hose or joint | Clamp, hose, radiator tank, water pump | Pressure will find the weakest point first |
My rule is simple: if a new cap fixes the problem, the diagnosis was probably right; if the overheating or loss returns, I move on quickly instead of treating the cap as a magic cure. That is where cost and correct fit start to matter.
What a replacement usually costs in the UK and how to choose the right one
In the UK, a standard aftermarket radiator cap is usually a cheap part, often around £5 to £11 for mainstream passenger cars, while specialist, heavy-duty or performance caps can cost more. That makes it one of the few cooling-system repairs where a cautious first guess is usually justified, provided you fit the correct rating.
- Match the pressure rating on the old cap or in the owner’s manual.
- Match the neck type and depth; a cap can look right and still not seal properly.
- Choose the correct system type; some cars use a cap on the radiator, others on the expansion tank.
- Do not fit a higher-pressure cap just to mask overheating, because it can stress hoses, the radiator and weak plastic tanks.
- Replace the cap if the seal is hard or flattened even if the car has not yet overheated badly.
If I were advising a driver in the UK, I would treat the cap as a quick, low-risk starting point, not a final diagnosis. When the part is matched properly and the symptoms stop, you have saved yourself a lot of unnecessary labour; when they do not, you have ruled out one of the cheapest possibilities and can move on with confidence.
The small check that stops a small fault becoming a big one
The pattern I trust most is this: coolant residue at the neck, erratic expansion-tank levels and overheating in traffic usually point to the cap first. If the cap is old, the seal is hard or the pressure rating is wrong, replacement is sensible before you start chasing more expensive parts. And if the new cap does not change anything, the cooling system needs deeper diagnosis rather than guesswork.In practical terms, I would check the cap when the engine is cold, match the specification exactly and then watch the temperature gauge on the next few drives. That simple sequence catches a surprising number of cooling complaints before they turn into warped heads, blown hoses or a roadside breakdown.
