A harmonic balancer sits at the front of the engine, but its job is far more important than turning the auxiliary belt. It reduces crankshaft twist, helps prevent vibration from building into damage, and keeps the engine smoother under load. In this guide I explain how it works, what goes wrong when it starts to fail, how it differs from a plain crank pulley, and what a realistic repair looks like in the UK.
The front-mounted damper does far more than drive the auxiliary belt
- It controls torsional vibration, which is the crankshaft twisting back and forth after each combustion pulse.
- Many engines use a balancer and pulley in one assembly, so the part often also drives the alternator, water pump, or power steering pump.
- Heat, oil contamination, and age can break down the rubber or fluid inside the unit.
- Warning signs include wobble, belt squeal, front-end rattles, vibration at idle, and oil seepage at the crank seal.
- Driving with a failing unit can damage belts, seals, and in severe cases the crankshaft itself.
- In the UK, a typical crankshaft pulley or damper replacement often lands around £190 to £350, with more complex jobs costing more.
How the damper controls crankshaft twist

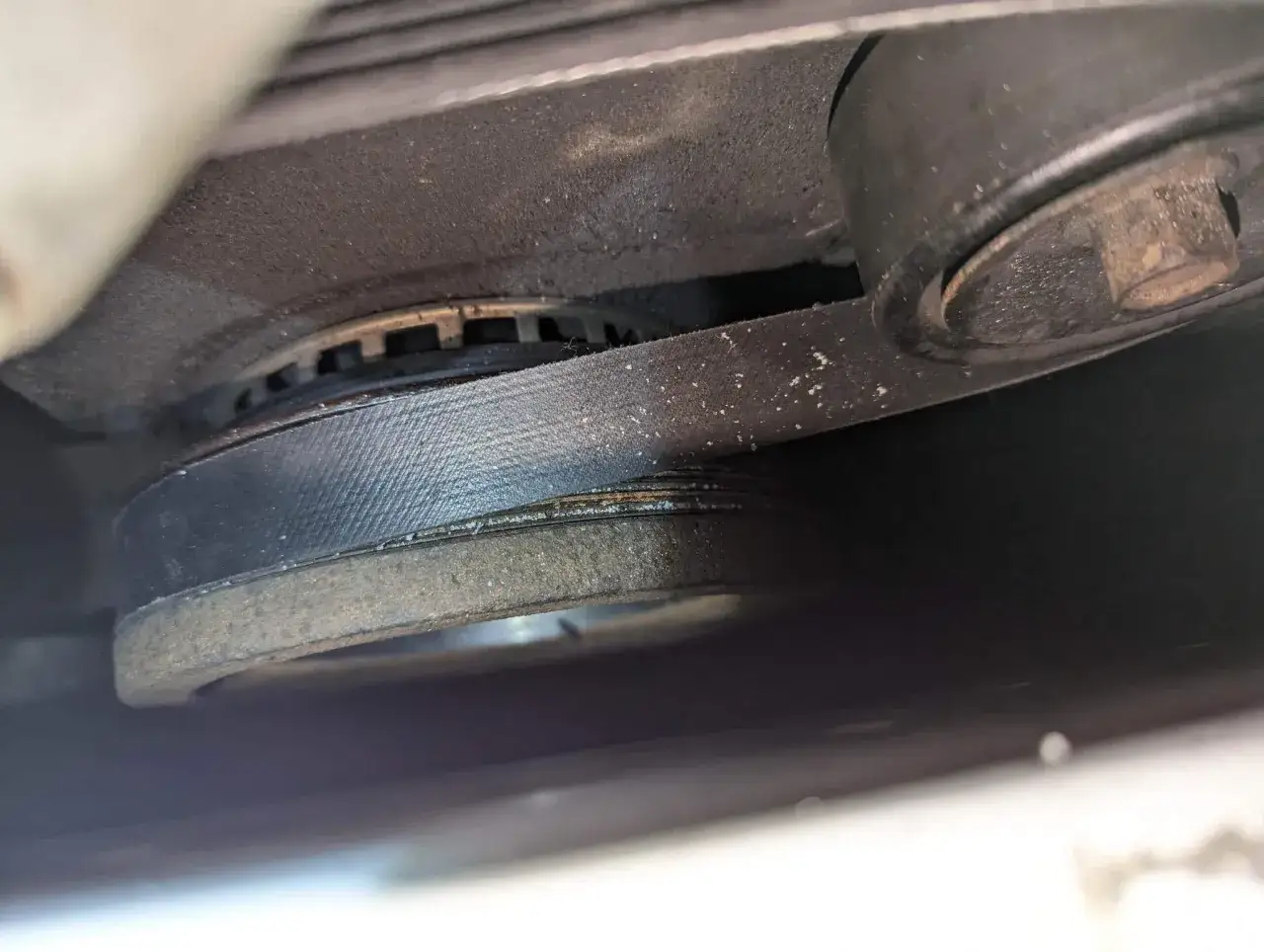

The crankshaft does not rotate in a perfectly smooth circle. Every time a cylinder fires, the combustion pulse loads the crank, twists it slightly, and then lets it spring back. That repeated twist-and-rebound motion is torsional vibration, and it is exactly what the balancer is there to tame.In simple terms, I think of it as a tuned absorber for the front of the engine. The inner hub is clamped to the crankshaft, while the outer mass and damping layer move in a way that absorbs the twist instead of passing it straight through the engine. On many road cars, the same assembly also carries the auxiliary belt grooves and timing marks, which is why the part looks like a pulley but behaves like a vibration control device.
This is also why the part is often misunderstood. It does not “balance” the whole engine in the usual workshop sense; engine balancing is a separate process. What the balancer does is protect the crankshaft from destructive vibration peaks. Once that point is clear, the common failure signs make much more sense.
What fails first and why the rubber matters
Most standard road-car dampers rely on bonded rubber between the inner hub and the outer ring. That rubber does the real work, and it is also the weak point. Heat, oil, age, ozone, and contamination all shorten its life. When the bond starts to degrade, the outer ring can shift slightly out of phase with the crankshaft, and the part stops controlling vibration properly.
The failure does not usually happen out of nowhere. I look for three patterns first:
- Cracking or bulging rubber between the hub and outer ring.
- Oil saturation around the front crank seal, which can soften the damping material.
- Ring separation or walking, where the outer section no longer sits perfectly true.
Some dampers use fluid or friction-based designs instead of bonded rubber, especially in performance applications. The principle is the same even when the construction changes: the part is supposed to absorb crankshaft vibration, not simply spin with it. That is why a healthy-looking outer face can still hide an internal problem if the damping element has gone weak.
There is a second trap here as well. A worn front crankshaft seal can cut a groove into the balancer, and once that happens, replacing only the seal often gives you a short-lived repair. In practice, the seal and the balancer need to be checked together. That leads directly to the symptoms you can actually feel or hear from the driver’s seat.
How a bad unit announces itself
A failing balancer usually gives some notice before it lets go completely. The difficult part is that the symptoms can sound like other front-of-engine problems, including belt noise, tensioner issues, or even an exhaust rattle that seems to come from the wrong place.| Symptom | What it usually suggests | How urgent it is |
|---|---|---|
| Rhythmic vibration at idle or rising with rpm | The damping layer is weakening or the outer ring is no longer tracking the crank correctly | High priority |
| Belt squeal, wandering belt, or shiny belt dust | Pulley wobble, misalignment, or ring separation | High priority |
| Knocking or rattling from the front of the engine | Loose or separated damper components | Stop and inspect |
| Oil around the front crank seal or balancer face | Seal wear, groove wear, or contamination of the damping element | High priority |
| Charging issues or overheating on belt-driven accessories | Accessory drive failure caused by pulley damage or belt slip | Do not keep driving far |
My rule is simple: if the balancer is visibly wobbling, do not keep treating it like a minor noise. A belt can come off, the crank seal can start leaking, and in the worst cases the crankshaft itself takes the punishment. Once you see that risk, the next question is whether the part you are looking at is truly the balancer or just a plain crank pulley.
Harmonic balancer and crank pulley are not always the same part
These terms get mixed up constantly, and on some engines that confusion is understandable because the assembly does both jobs. On others, the pulley and the damper are separate parts bolted together. That distinction matters because a simple-looking pulley problem can actually be a vibration-control problem underneath.
| Feature | Harmonic balancer | Plain crank pulley |
|---|---|---|
| Main job | Damps torsional vibration from the crankshaft | Drives the auxiliary belt and accessories |
| Construction | Hub, damping element, and outer ring or inertia mass | Usually a simpler metal pulley |
| Common failure | Rubber breakdown, ring movement, wobble, separation | Wear, cracks, belt tracking problems, misalignment |
| Why it matters | Protects the crankshaft, seal, and timing drive from vibration | Keeps the belt system turning correctly |
| How it appears on the car | Often looks like a pulley, especially on modern engines | Can be a separate part or integrated into the damper assembly |
For a driver, the practical takeaway is this: a pulley that only looks cosmetic may still be the engine’s vibration control point. That is why I would never diagnose the front of the engine by appearance alone. The replacement decision is the next piece of the puzzle, and that is where cost, tooling, and vehicle layout start to matter.
When repair is worth doing yourself and when I’d send it to a garage

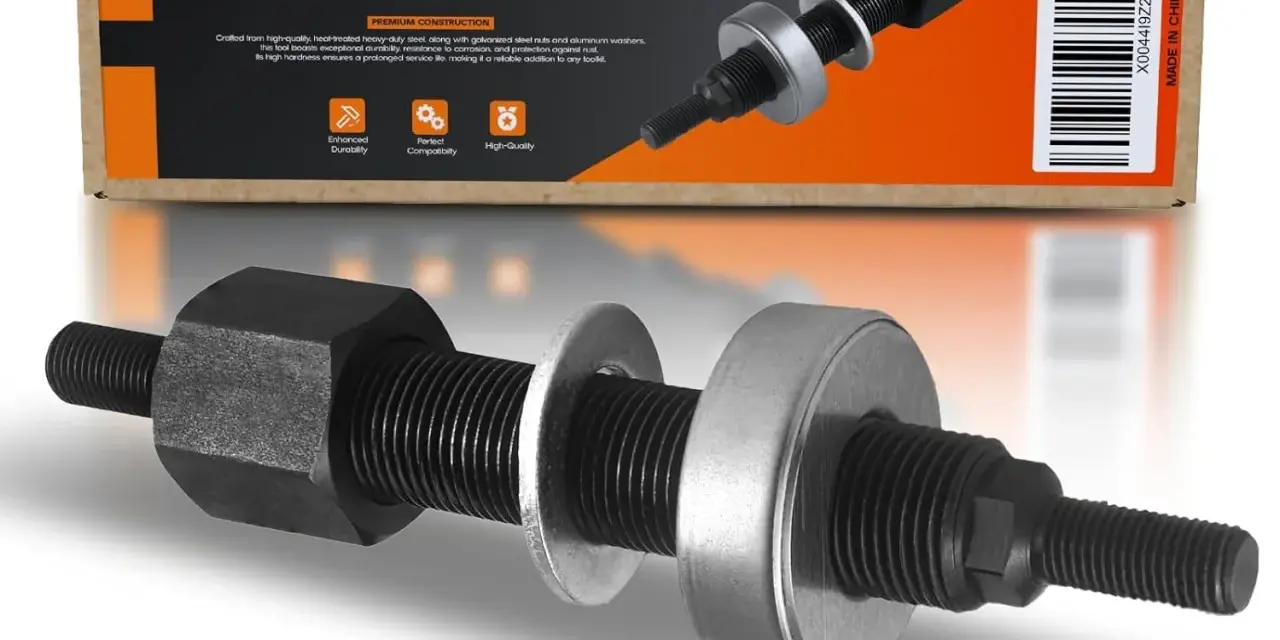

On a straightforward engine, balancer replacement is possible for an experienced DIY owner with the right puller, installer, torque tools, and a workshop manual. On a cramped modern engine bay, it becomes much less friendly because access is tight, the auxiliary belt routing can be awkward, and the part often has to be installed with a proper press-fit process rather than brute force.
ClickMechanic lists an average UK crankshaft pulley replacement cost of about £250, with a common range of £190 to £350. In London, labour rates can sit much higher than in smaller towns, so the same job can move quickly from “reasonable” to “expensive” if access is poor or the front seal and belt also need attention.As a rule, I would treat the job as garage work if any of these apply:
- The balancer uses a tight interference fit on the crank snout.
- The engine needs a special puller or installer to avoid damaging the hub.
- The front crank seal is leaking and should be replaced at the same time.
- The engine has a torque-to-yield crank bolt that must be replaced and tightened exactly to spec.
- The vehicle has limited access behind the radiator or fan pack.
For modified engines, I would be even more careful about part choice. NHRA-style performance guidance makes the same basic point: factory dampers are tuned to a specific frequency band, and once rpm or power rises enough, an uprated damper becomes the safer choice. That does not mean every road car needs a racing part, but it does mean a tuned engine should not be fitted with whatever happens to be cheapest online.
For most UK road cars, the smartest move is still to replace the damaged assembly with the correct OEM-equivalent part, then inspect the belt, tensioner, and crank seal while everything is apart. That gives you a cleaner repair and reduces the chance of doing the same job twice.
The checks I would make before calling it a pulley problem
If the front of the engine is vibrating, I start with a short, practical checklist rather than guessing. That usually tells me whether the balancer is the cause or whether it is only one part of a larger belt-drive issue.
- Look for outer-ring wobble at idle and as the engine is held at a steady rpm.
- Check for rubber separation, cracks, or a ring that appears to sit off-centre.
- Inspect the front crank seal for oil leaks or a worn groove on the balancer face.
- Watch the auxiliary belt for tracking problems, dust, or a tensioner that is bouncing excessively.
- Listen for noises with the bonnet open, because a front-end rattle is often easier to identify than from the cabin.
If those checks point to the damper, I would treat it as a repair rather than a nuisance. A healthy harmonic balancer keeps the crankshaft stable, protects the belt drive, and prevents a small vibration problem from turning into a bigger engine repair. If the front of the engine suddenly starts to feel rough, the safest next step is to inspect the balancer, the auxiliary belt system, and the front seal together instead of chasing each symptom separately.
