A heavy-duty diesel does not ask for a gentle burst of power. The real answer to how many amps to start a semi truck is that there is no single fixed number, because the draw changes with system voltage, battery health, cable quality, engine size, and temperature. In the UK, where many articulated lorries run 24V electrics, the useful question is not “what is the one number?” but “what range tells me the system is healthy?”
The practical range is higher than a car, but lower than most people guess
- A healthy heavy-duty starter usually draws several hundred amps while cranking, and some large 12V starters can spike well above 1,000 amps.
- 24V systems need less current for the same power, which is why they are common on articulated trucks and other HGVs.
- Cold weather, weak batteries, poor terminals, and long cable runs can push the current demand up and make the engine seem harder to turn.
- CCA matters more than reserve capacity for starting, because it describes how much current the battery can deliver in a cold start.
- If the truck clicks, cranks slowly, or needs repeated attempts, the problem is often voltage drop rather than the starter itself.
The starter draws a surge, not a flat number
I treat truck starting current as a peak-and-hold problem, not a single reading. A heavy-duty starter can pull a large inrush when the motor first engages, then settle as the engine begins to turn. On big diesel starters, that surge can move from the several-hundred-amp band into the low-thousands on some 12V units, which is why a car-battery mindset breaks down fast here.
That is also why starter data is usually shown as curves instead of one neat figure. One heavy-duty starter family plots current across a range from 500 to 2,500 amps, which is a good reminder that the “right” number depends on the exact starter, engine load, and electrical layout.
| Situation | What I expect | What it usually tells you |
|---|---|---|
| Healthy 24V HGV start | Several hundred amps during cranking | Normal for a well-maintained system with low resistance |
| Large 12V heavy-duty start | Higher surge, sometimes well above 1,000 amps | The starter has to do more work because voltage is lower |
| Weak batteries or cold oil | Longer crank, more sag, more stress | The current number alone will not tell the whole story |
Once you look at it this way, the next question becomes obvious: why does a 24V truck usually behave better than a 12V one?
Why 24V trucks usually need less current
Power is the part people forget. For the same starter output, higher voltage means lower current, which is why a 24V truck can often do the same job with less amperage than a 12V setup. That matters because lower current means less heat in the cables, less voltage loss, and a little more margin when the engine is cold.
In practical terms, a 24V system is not “stronger” because it uses more amps. It is usually more efficient because it needs fewer amps to deliver the same work. That is one reason 24V electrics are so common on heavy-duty trucks and buses.
| System | What happens at the battery side | What you notice on a cold morning |
|---|---|---|
| 12V | Higher current demand for the same starter output | More sensitivity to weak batteries and cable loss |
| 24V | Lower current for the same output | Usually easier on wiring and better for long cranking circuits |
That leads straight into the part that causes most real-world no-starts: temperature, cable loss, and battery condition.
Cold weather and cable loss change the answer fast
Temperature is where the neat theory breaks. As battery chemistry slows down in the cold and the oil thickens, the starter has to work harder. A cold battery also has less usable CCA, and CCA is the rating that tells you how much current a battery can supply at -17.8°C for 30 seconds while holding at least 7.2 volts.
I also pay close attention to voltage drop. If the cranking circuit is losing more than 0.5 volts total, the truck may still crank, but it will do it slowly and the batteries will look worse than they really are. In practice, bad grounds, loose clamps, corrosion, and undersized cables are often the real reason a semi feels underpowered at start-up.
- Cold oil increases mechanical drag.
- Weak batteries sag under load and make the starter work harder.
- Poor terminals waste current before it reaches the starter.
- Long cable runs make voltage drop more noticeable.
That is why I never judge a heavy truck battery bank by one number alone. The battery setup matters just as much as the starter itself.
What the battery bank should look like
For most heavy-duty trucks, I expect matched batteries rather than a random pair of old units. Many commercial Group 31 truck batteries sit around 925 to 1,000 CCA each, and that gives you a sensible starting point for a healthy diesel setup. Reserve capacity matters for cab loads and downtime, but it does not replace cranking power.Two details matter more than brand loyalty. First, the batteries should be the same age and chemistry. Second, the charging system has to suit them, especially if you are running AGM batteries for better cold-weather performance and vibration resistance.
One mistake I still see is assuming that two batteries in series magically double the cranking spec. They increase system voltage, not the battery rating on paper, so both batteries still need to be healthy and properly charged.
| What to check | Why it matters | My rule of thumb |
|---|---|---|
| Matched batteries | One weak battery drags down the whole system | Replace them as a set when one fails |
| CCA rating | This is the starting number that matters most | Look for heavy-duty ratings in the high hundreds per 12V battery |
| Reserve capacity | Useful for cab loads and waiting time | Helpful, but secondary to starting power |
| AGM or flooded | AGM usually handles cold cranking and vibration better | Choose it if the charging profile is correct |
Once the batteries are sorted, the next step is to stop guessing and check the circuit itself.
When the starter is not the real problem
Before I blame the starter motor, I always work through the circuit in order. Most no-start complaints come from a weak battery pair, a bad ground, a corroded connector, or a charging issue that never refilled the batteries after the last run.
- Test the batteries under load. A resting voltage check is not enough on a heavy diesel.
- Inspect both ends of the cables. Clean terminals and tight lugs matter more than most owners think.
- Measure voltage drop while cranking. Anything over the 0.5-volt guideline deserves attention.
- Check charging output after it starts. If the system is not recovering properly, the next start will be worse.
- Only then suspect the starter. A worn motor, tired solenoid, or damaged ring gear can still be the culprit, but it should not be the first guess.
If the engine cranks slowly but the cables stay cool and the batteries test well, I start thinking about mechanical drag or starter wear. If the cables get warm, the fault is usually resistance, not raw battery capacity.
That practical order saves time, money, and a lot of unnecessary parts swapping. It also matters when you are deciding what to carry for roadside starting.
What I would keep ready for a dependable UK roadside start
If I were setting up a truck for winter reliability in the UK, I would focus on three things: matched batteries with proper CCA, clean low-resistance cable paths, and a 24V-compatible emergency starter or charger. A serious commercial 24V portable starter can sit in the low-thousands of peak amps, which is the class you want when the batteries are too flat to help much.

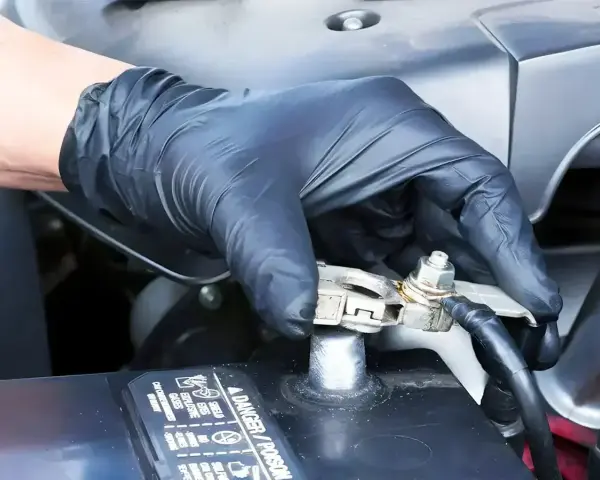

- Keep terminals clean and protected from corrosion.
- Test battery health before winter, not after the first no-start.
- Use the correct charger profile for AGM or flooded batteries.
- Carry a starter solution that actually supports heavy-duty 24V systems.
If I had to reduce the whole topic to one rule, it would be this: a semi truck does not need one magic amp number, it needs enough clean current reaching the starter without voltage loss. Get the batteries, cables, and charging system right, and the engine usually takes care of the rest.
