The p0306 code points to a misfire in cylinder 6, but that fault is only the starting point. The real job is to work out whether the problem is ignition, fuel delivery, air leakage, or internal engine wear before the misfire starts damaging other parts. In this guide I break down the symptoms, the most likely causes, a practical diagnostic sequence, and what repairs usually cost in the UK.
What this fault usually means and what to check first
- It identifies a misfire on cylinder 6, not a random engine-wide fault.
- The most common causes are a worn spark plug, a weak coil, injector trouble, a vacuum leak, or low compression.
- A flashing engine warning light means the misfire is active enough to risk catalytic converter damage.
- Swapping parts between cylinders is useful only when it is done in a controlled test, not as guesswork.
- In the UK, simple fixes are often a low three-figure job, while internal engine repairs can become much more expensive.
What the cylinder 6 misfire code is telling you
This code means the engine control unit has seen cylinder 6 fail to contribute properly during combustion. In plain English, that cylinder is not burning air and fuel the way it should, so the engine loses smoothness, power, and efficiency. The code does not tell you which part has failed, and that is the trap many owners fall into: they see one code and assume there is one obvious part to replace.
I always treat this as a direction of travel rather than a verdict. Cylinder 6 may be the problem cylinder, but the root cause can sit in the ignition system, the injector, the intake tract, or the engine mechanically itself. If other codes are present, they matter too. A P0300-style random misfire, a lean mixture code, or an injector circuit fault can change the diagnosis completely.
One more detail matters: cylinder numbering is engine-specific. The computer is not guessing; it is naming the cylinder according to that engine’s numbering scheme. Once you understand that, the next question is obvious: what symptoms should push you to investigate immediately rather than keep driving and hoping it clears itself?
Symptoms that tell me it is worth checking now
A cylinder 6 misfire can be mild at first, but the pattern usually becomes obvious if you know what to listen for. The check engine light is the starting point, not the whole story.
- Rough idle, especially when the engine is cold
- Shuddering under acceleration or when climbing hills
- Loss of power and slower throttle response
- Fuel smell from the exhaust or a stronger-than-normal exhaust note
- Poor fuel economy
- Intermittent hesitation that comes and goes under load
- A flashing warning light, which usually means the misfire is severe enough to risk catalyst damage
If the engine only feels slightly uneven at idle, the fault may still be early. If it shakes hard, hesitates badly, or flashes the warning light, I would stop treating it as a routine annoyance. The useful part is that the symptoms often point toward the fault category, and that leads straight into the list of likely causes.
The most common causes behind it
In real workshop work, I usually narrow a cylinder 6 misfire down to one of five groups. Some are cheap and quick; others are not. The table below shows how I think about them before I start replacing parts.
| Likely cause | What it usually feels like | Why it matters |
|---|---|---|
| Spark plug wear or fouling | Misfire at idle, worse under load, or after long service intervals | Very common and often the simplest fix |
| Weak ignition coil or damaged boot | Intermittent misfire that may move around when parts are swapped | One of the fastest faults to prove on coil-on-plug engines |
| Fuel injector fault or wiring issue | Rough running, lean behaviour, or a cylinder that stays dead under load | Can point to a fuel delivery problem rather than an ignition fault |
| Vacuum leak near cylinder 6 | Idle instability, lean codes, or a misfire that improves at higher rpm | Extra air upsets the air-fuel mix and can mimic other faults |
| Low compression or mechanical wear | Persistent misfire that does not move when parts are swapped | Usually the most expensive path because it points to valves, rings, or head sealing |
There are also secondary causes that are easy to overlook: damaged wiring, connector corrosion, intake gasket leaks, clogged injector nozzles, and less commonly timing or sensor issues that affect one cylinder more than the others. If the code appears with a fuel-trim fault or an injector circuit code, I would not stay focused on ignition for long. That kind of overlap is often the clue that saves time.
Once you know the likely fault families, the smartest move is to test them in order of speed and cost rather than buying parts in the dark.
How I would diagnose it without guessing
The cleanest diagnosis path starts with the scan data, then moves to simple physical checks, then into deeper testing only if the fault stays on cylinder 6. That order matters because it prevents expensive guesswork.
-
Read all stored codes and freeze-frame data.
I want to know engine speed, load, temperature, and fuel trim when the fault was set. If there is also a lean code, injector code, or random misfire code, that changes the direction of travel immediately.
-

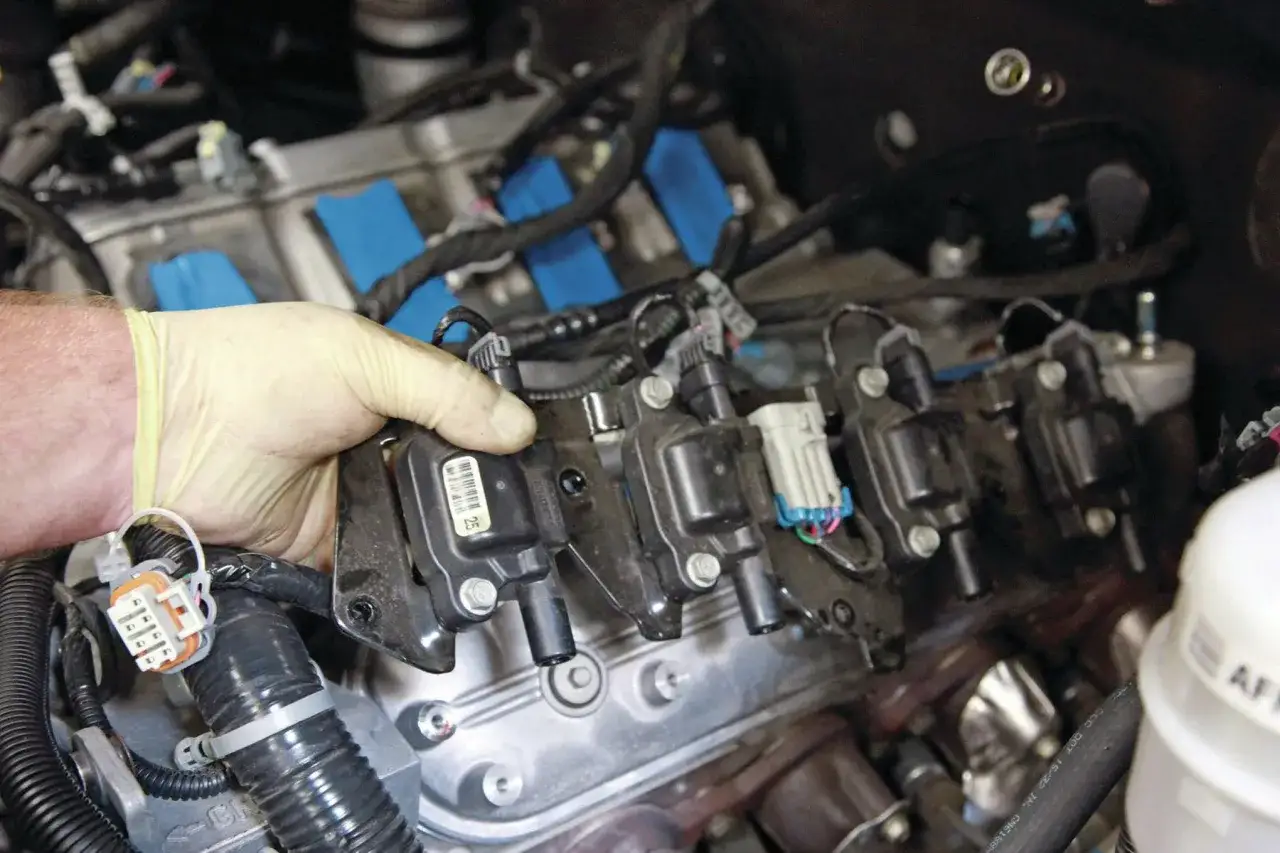

Inspect the cylinder 6 ignition hardware.
I look for a worn plug, oil fouling, cracked ceramic, carbon tracking, loose connectors, or heat-damaged coil boots. On many engines, this takes minutes and can reveal a fault faster than any test equipment.
-
Swap the spark plug or coil with another cylinder.
If the misfire follows the part, you have a strong suspect. This is one of the best low-cost tests on coil-on-plug engines because it turns a vague code into a moving fault you can track.
-
Check injector operation.
I listen for injector click, check resistance if the specification is available, and inspect the connector and loom. If there is a P0206-style injector circuit fault as well, I move this test much higher up the list.
- Look for air leaks near the intake path. Smoke testing is ideal, but even a careful visual inspection can find split hoses, brittle PCV lines, or intake gasket leaks. A small leak can lean out one area of the engine enough to trigger a single-cylinder misfire.
-
Test compression and, if needed, perform a leak-down test.
If the misfire stays on cylinder 6 after the ignition and fuel checks, I stop assuming it is a simple part failure. Low compression points toward valves, rings, head gasket sealing, or another internal issue that no plug or coil will fix.
This is the point where many DIY diagnoses go wrong: they stop after clearing the code and seeing the light go off. That only proves the computer has reset, not that the fault is gone. If the engine misfire is real, it will come back under the same conditions.
What repairs usually cost in the UK
UK repair costs vary a lot with engine access, labour rates, and whether the fault is simple or mechanical. A hard-to-reach V6 or V8 can turn a quick ignition job into a much bigger bill than the same repair on a more accessible four-cylinder engine.| Repair or test | Typical UK cost range | What drives the price |
|---|---|---|
| Diagnostic scan and basic inspection | £60 to £120 | Workshop labour time and whether live data or smoke testing is included |
| Spark plug replacement on one cylinder | £80 to £180 | Access, plug type, and whether more than one plug should be replaced at the same time |
| Ignition coil or coil boot replacement | £120 to £250 | Part quality and how buried the coil is in the engine bay |
| Fuel injector cleaning or replacement | £150 to £500 | Whether the injector can be cleaned, tested, or must be replaced |
| Vacuum leak repair | £90 to £300 | Whether it is a split hose, gasket replacement, or a deeper intake issue |
| Compression, valve, or head gasket related repair | £300 to £1,500+ | How much engine stripping is needed and whether internal parts are damaged |
Those figures are broad on purpose because misfire jobs swing from quick fixes to major repairs very easily. In the UK market, a simple plug or coil fault is often manageable, but once compression drops or the injector circuit is involved, the bill rises quickly. If you are weighing whether to repair or replace the car, the diagnosis stage is where that decision becomes clear.
When it is safe to drive and when it is not
If the engine is only slightly rough and the warning light is steady, you may be able to drive a short distance to a workshop without making things worse. I still would not treat that as normal driving. Keep the trip short, avoid heavy throttle, and do not use motorway speeds if the car is clearly missing.
If the warning light is flashing, the engine is shaking badly, or the car smells strongly of unburned fuel, I would stop driving as soon as it is safe. A serious misfire can overheat and damage the catalytic converter very quickly, and that is the kind of secondary failure that turns a modest repair into a much larger one. The same warning applies if power drops sharply or the engine starts running unevenly enough to make the car difficult to control.
The practical rule is simple: steady light and mild symptoms mean short, gentle travel only; flashing light or severe shaking means do not keep pushing your luck. That leads to the final question I ask before I open my wallet: what is the fastest triage plan that avoids unnecessary parts?
The quickest triage plan before you buy parts
If I had to narrow this fault down fast, I would use a strict order. First I would confirm the code and look for anything related, such as lean mixture or injector circuit faults. Next I would inspect the plug, coil, connector, and harness on cylinder 6, because those checks are cheap and often decisive.
If the ignition parts look suspect, I would swap them with another cylinder and see whether the misfire follows. If it does not, I would move to injector testing and then to smoke testing for air leaks. If the misfire still refuses to move, I would stop guessing and test compression. That sequence catches most real-world faults without turning the repair into a random parts swap.My practical rule is this: fix the simplest proven cause first, but do not ignore a persistent cylinder 6 misfire if the same fault keeps returning. The longer it is left alone, the more likely it is to create a second problem that costs more than the original repair.
