A starter solenoid sits at the centre of the starting circuit, but it is easy to blame it for every no-crank problem and just as easy to overlook it when the battery or cables are the real issue. In this guide I explain how the part works, what its failure looks like, how to separate it from battery and starter motor faults, and what repair choices make sense in the UK.
The starting circuit only works when control power and cranking power line up
- The solenoid does two jobs: it closes the high-current circuit and pushes the starter pinion into the flywheel.
- Rapid clicking usually points to low voltage or poor connections, not automatically a failed part.
- Modern cars often hide the component inside the starter assembly, so the cheapest fix is not always the right fix.
- A healthy 12V battery should sit around 12.6V at rest, and cranking voltage should not collapse sharply.
- On UK cars, short journeys, cold mornings, and weak earth straps are common reasons the problem keeps coming back.

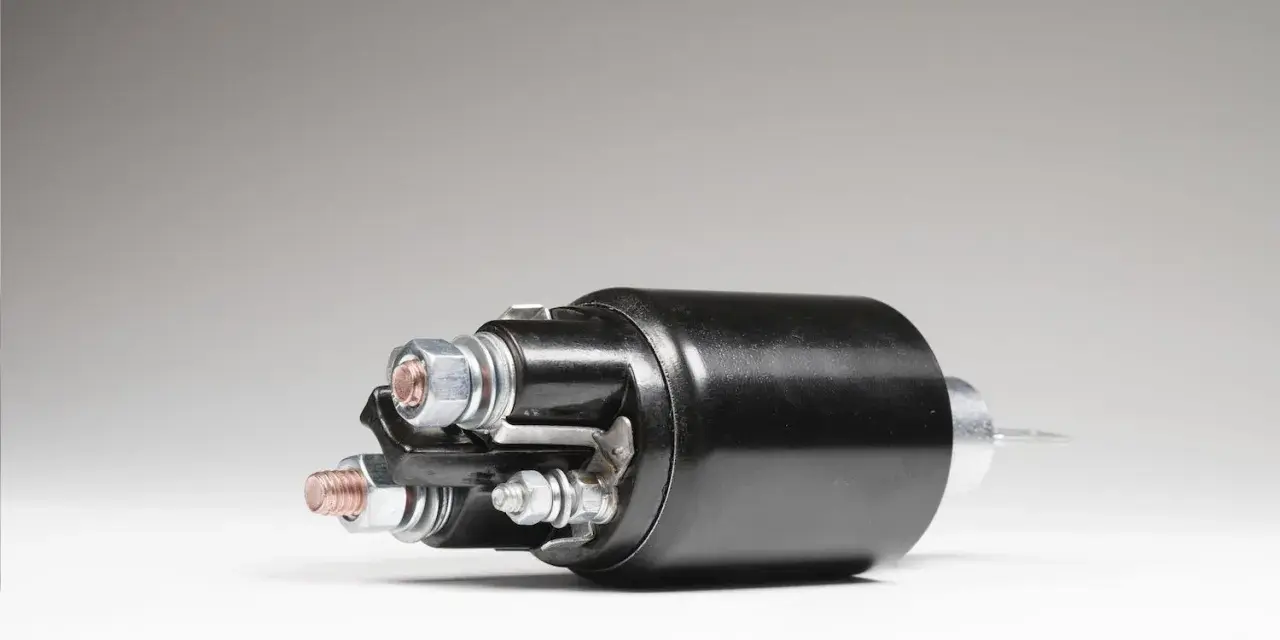

How the solenoid fits into the starting circuit
When you turn the key or press the start button, the solenoid receives a small control signal and then switches a much larger current from the battery to the starter motor. At the same moment, it pushes the starter pinion into the flywheel ring gear so the engine can turn. That is why this part matters so much: it is both an electrical switch and a mechanical actuator.
I think of it as the gatekeeper of the whole start sequence. The ignition switch is not built to carry starter-motor current directly, so the solenoid takes that burden and lets the low-current control side do the signalling. On many modern cars the solenoid is mounted on the starter itself, while some vehicles still use a separate starter relay upstream. Either way, the logic is the same: low current in, high current out, engine cranking only when everything lines up.
This also explains why a fault can feel vague at first. If the control signal never arrives, nothing happens; if the solenoid clicks but cannot pass current, the starter stays still; if the pinion does not engage cleanly, you may hear grinding instead of a smooth crank. Once you understand that sequence, the next question is why a battery that looks fine on the charger can still leave you stranded.
Why a healthy battery still may not crank the engine
A weak battery is still the first place I look, even when the solenoid seems suspicious. A healthy 12V lead-acid battery should sit around 12.6V at rest, and while cranking it should usually stay above about 9.6V; if voltage dives lower, the starter circuit may not have enough energy to do its job. The reading matters even more on stop-start cars, where an AGM or EFB battery can look “okay” in a basic test but still sag under real load.
UK driving habits make this worse than many owners expect. Short trips, cold mornings, heated screens, and repeated stop-start use all drain reserve capacity, so the solenoid may be blamed for a problem that began with undercharging or sulphation in the battery. If the engine starts normally after a jump pack or charger, I would not rush to condemn the starter hardware.
That leads straight into the symptom patterns, because the noise you hear - or do not hear - is often more useful than the warning light on the dash.
What the symptoms usually mean
The symptom pattern is usually more informative than the part number. A single solid click, rapid clicking, total silence, slow cranking, and grinding all point in different directions, even though drivers often group them together as “starting trouble.” I separate them before I touch a spanner.
| Symptom | What it usually suggests | Why it matters |
|---|---|---|
| Single click, no crank | Solenoid contacts, weak battery, or high resistance in cables | The control side is alive, but current is not reaching the starter properly |
| Rapid clicking | Low battery voltage or poor terminal contact | The solenoid is trying to pull in, then dropping out again |
| Silence | Relay, fuse, ignition switch, clutch or brake interlock, immobiliser, or dead battery | The control signal may never reach the solenoid |
| Slow crank | Battery weakness or excessive starter drag | The motor turns, but not fast enough to start the engine cleanly |
| Grinding noise | Poor pinion engagement or worn drive gear | Keep trying and you can damage the flywheel ring gear |
One useful boundary: if the engine cranks at a normal speed but will not fire, I stop blaming the starting circuit. At that point I am looking at fuel delivery, spark, or immobiliser issues instead.
The pattern that worries me most is an intermittent fault when the engine is hot. Heat can expose worn internal contacts or a tired plunger, so a car that starts perfectly cold and fails after a motorway stop is telling you something specific, not random. That is the point where a quick visual check is not enough, and a proper diagnosis saves real money.
Before moving on, I always make one safety note: do not keep cranking a struggling starter over and over. Long bursts overheat the motor and can drag a weak battery down so far that the next test becomes meaningless.
How I would diagnose the fault without guessing
I start with the battery because it is fast to rule out and because a weak supply can mimic a failed solenoid almost perfectly. If I have a multimeter, I check open-circuit voltage first, then watch what happens while a helper turns the key to start. If the battery looks healthy at rest but the voltage collapses under load, the issue may be the battery itself, the cables, or a poor earth strap rather than the starter assembly.
- Check battery voltage at rest and during cranking.
- Inspect both terminals for looseness, corrosion, and heat damage.
- Check the engine earth strap and the main positive cable to the starter.
- Listen for the click, then note whether it is single, repeated, or absent.
- Confirm that the small control wire at the solenoid gets a start signal.
- If the electrical supply is sound, test the starter on the bench or replace it as a unit.
When I do voltage-drop testing, I am looking for hidden resistance, not just whether the battery reads 12 volts. A connection can show continuity and still lose enough voltage under load to prevent the solenoid from pulling in properly. That is why a car may start after someone taps the starter, shakes the cable, or moves the battery clamp, even though the component looked fine on paper.
If you are not used to working around the starter, I would stop short of improvised jump tests with a screwdriver. Modern engine bays pack a lot into a small space, and one wrong bridge can create a serious spark, damage electronics, or weld a tool to the terminal. At that point the cheapest diagnosis is careful testing, not heroic guessing.
Once you know the battery and wiring are sound, the repair decision becomes much clearer.
What repair makes sense and what it usually costs in the UK
The right fix depends on whether the solenoid is separate, serviceable, or built into the starter motor. On older or heavier-duty vehicles you may be able to replace just the solenoid, but on many modern cars the sensible route is a complete starter assembly because the labour overlaps and the part is not worth splitting. I usually weigh parts price against access time first, because a cheap component on a buried engine can still turn into an expensive job.
| Repair route | Typical UK budget | Best for |
|---|---|---|
| Clean terminals and earth strap | £0-£80 | Corrosion, loose clamps, minor voltage loss |
| Replace starter relay or control-side fuse fault | £50-£150 | No click, no signal, but the starter itself may be fine |
| Replace solenoid only, where separate | £120-£250 | Older or serviceable starters with clear solenoid failure |
| Replace complete starter motor | £300-£500+ | Integrated units, high-mileage starters, or hard-to-reach engines |
A reconditioned starter can be a sensible middle ground: cheaper than dealer pricing, usually more reliable than trying to nurse a worn-out unit for another year, and often the best balance when the car is worth keeping. For a real-world benchmark, current UK market data from FixMyCar puts starter-motor work roughly in the low-to-mid £300s on average, with some cars lower and some notably higher. That matters because a “bad solenoid” on a modern car is often not a cheap separate fix at all; it becomes a starter replacement once labour and access are counted.
There is also a judgement call here. If the car is older, the starter is easy to reach, and the rest of the electrical system tests clean, a targeted repair can make sense. If the unit is buried under intake parts or turbo plumbing, a full replacement is often the least frustrating and most durable option.
Once the repair path is clear, the real win is making sure you do not have to repeat it six months later.
How to stop the same starting problem coming back
Most repeat starting faults are boring in the best possible way: a tired battery, poor charging, loose clamps, or an earth strap that looked fine until load testing exposed it. My maintenance rule is simple. Keep the battery charged, keep the connections clean, and do not ignore a crank that sounds slower than it did last month.
- Drive long enough to recharge the battery, or use a smart charger if the car sits for days at a time.
- Clean both battery terminals and tighten them properly; a shiny terminal is not enough if the clamp is loose.
- Check the engine-to-body earth strap for corrosion, cracking, or heat damage.
- Match the battery to the car’s specification, especially on stop-start models that need AGM or EFB types.
- Replace an ageing battery before winter if it is already struggling in mild weather.
- Do not keep pressing the start button repeatedly when the engine only half-cranks.
On UK cars, short commutes are the big silent killer. They never fully recharge the battery, and over time that puts extra strain on the starter circuit every morning. If you want one practical habit that pays off, it is to treat the first slow crank as a warning, not a nuisance.
That brings me to the simplest useful checklist I use when a car only clicks and refuses to wake up.
The checklist I use when the engine only clicks
My order is always the same: battery state, terminal condition, earth strap, relay signal, then the solenoid and starter itself. That sequence avoids the common mistake of replacing the wrong part just because it was the easiest thing to reach. If the battery passes a load test and the wiring is clean, I start to suspect the starter assembly with much more confidence.
If the fault is intermittent, note whether it happens hot or cold, after short trips, or only after the car has sat for a few days. Those details matter more than most people realise, because they tell you whether you are chasing a charging issue, a worn contact inside the starter, or a control-side problem upstream. The fastest repair is usually the one that starts with evidence and ends with the least guesswork.
