This guide shows how to test an alternator with a multimeter, what the numbers mean, and how to tell whether the fault is really the alternator, the battery, or the wiring. I keep it practical, because the expensive mistake is replacing a part before you have checked the charging system properly. If your car has dim lights, a battery warning lamp, or awkward starting, the checks below will usually narrow it down fast.
Key things to check before you replace anything
- 12.6V engine off and roughly 13.7-14.7V running is the normal ballpark for a conventional 12V system.
- Test at the battery first, then repeat under load, then use AC ripple if you need a deeper check.
- If the voltage stays near battery voltage with the engine running, the system is not charging properly.
- Above 15V on a standard system points to overcharging and regulator trouble.
- On stop-start or smart-charging cars, voltage can move around on purpose, so context matters.
- A weak battery can mimic alternator failure, so I always look at both together.
What a healthy alternator should do
The alternator has one job that matters to the driver: once the engine is running, it keeps the starter battery charged and feeds the car’s electrical demand. In a healthy car, that means the battery light stays off, the headlights do not sag at idle, and the starter battery is ready for the next restart.
When the alternator starts to weaken, the clues are usually obvious if you know where to look. Dim or flickering lights, slow windows, odd infotainment resets, a weak crank after a short trip, or a battery warning lamp are all classic charging-system symptoms. I treat that warning lamp as a system alert, not proof that the alternator itself has failed. The fault can sit in the battery, the belt drive, the earths, the wiring, or the regulator, and that is why the first test needs to be simple and measured.
Once you know what a healthy system should feel like, the next step is a basic voltage check you can do in minutes.
The simplest multimeter check to start with
A digital multimeter is enough for the first pass. I want the battery voltage before start-up, then the charging voltage with the engine running, measured across the battery posts themselves rather than the cable clamps. Corrosion and loose connections can skew the result if you probe the wrong place.
- Set the meter to DC volts, ideally the 20V range if it is not auto-ranging.

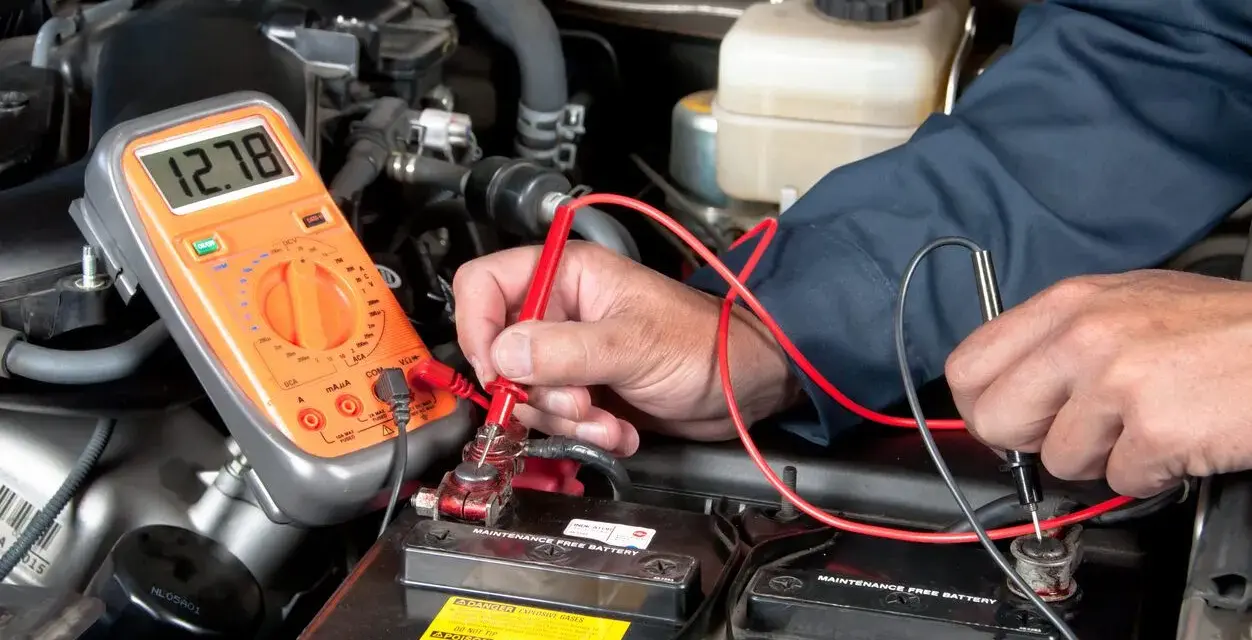

- With the engine off and the car rested for a few minutes, read the battery. A healthy, fully charged 12V battery is usually around 12.6V.

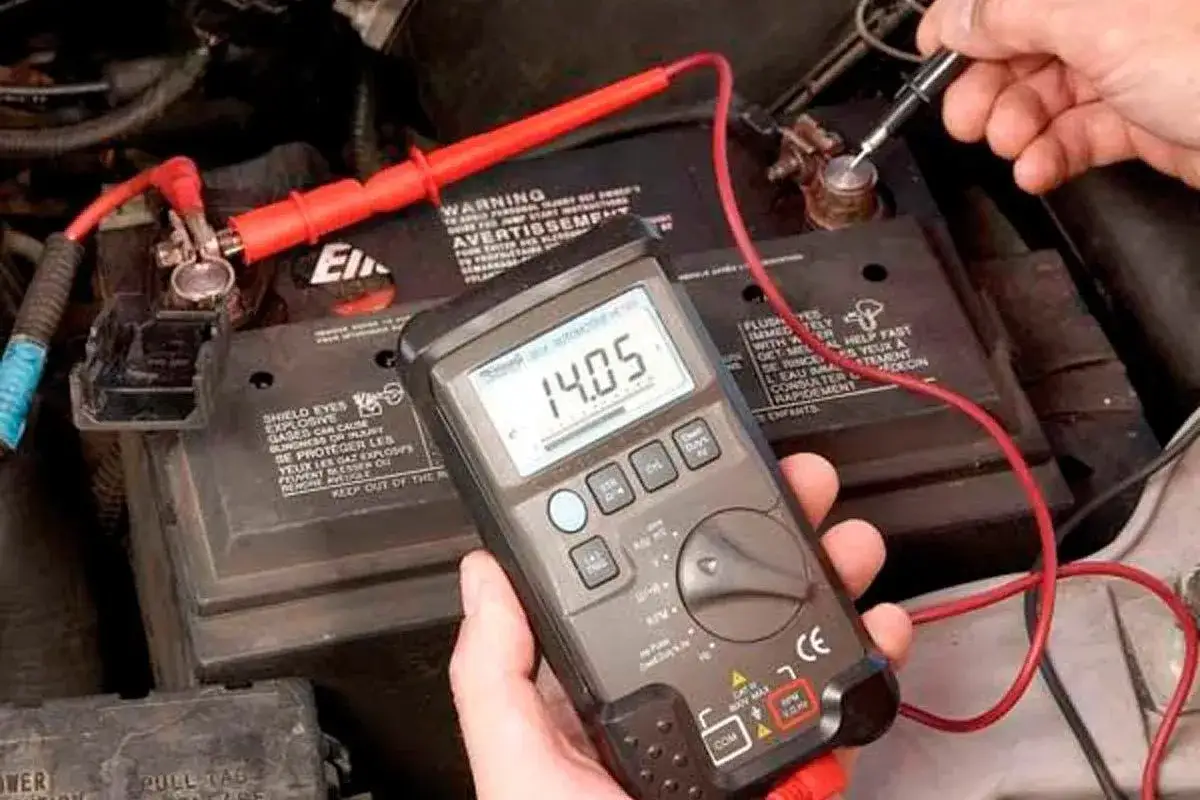

- Start the engine and measure again at the same points. On a conventional system, I expect roughly 13.7-14.7V at idle or fast idle.
- Raise the engine speed to around 1,500-2,000 rpm and watch whether the reading stays stable instead of drifting down toward battery voltage.
If the voltage stays close to 12V with the engine running, the car is not charging properly. That can mean a failed alternator, a slipping belt, a bad connection, a blown fuse, or a regulator fault. I would not disconnect the battery while the engine is running; that old trick can damage modern electronics and does not tell you anything useful anyway.
That basic check is a good start, but it only tells you part of the story. A weak alternator can still look acceptable at idle and fall apart when the electrical load rises.
Load testing tells you more than idle voltage
Idle readings can flatter a weak charging system, so I always repeat the test with the car working harder. Turn on the headlights, rear screen demister, cabin blower, heated seats if fitted, and air conditioning if it is available. Then hold the engine around 1,500-2,000 rpm for 20-30 seconds and watch the meter.
A healthy alternator should remain in the charging range and recover quickly when the load is removed. If the voltage dives toward the low 12s, the alternator may not have enough output, the belt may be slipping, or the battery may be so poor that the system is struggling to keep up. If the lights dim sharply while the number falls, I take that as a stronger clue than the reading alone.
Modern stop-start cars need a little more caution. Smart charging is normal on many newer vehicles, and the ECU may vary voltage on purpose to reduce fuel use and manage battery state. In other words, a moving voltage figure is not automatically a fault. What matters is whether the system behaves consistently and matches the vehicle’s expected charging strategy. If you know the car uses a smart alternator, I would compare the reading with the manufacturer data or live diagnostic values before condemning anything.
If the voltage still looks odd after a load test, ripple testing is the next useful step, because it can expose faults the simple DC reading will miss.
AC ripple can catch diode faults
Inside the alternator, AC output is rectified into DC by diodes. If a diode fails, some AC ripple leaks through the charging system. You will not always feel that at first, but you may get flickering lights, radio noise, or odd electrical behaviour.
For a quick check, switch the multimeter to AC volts and probe the battery posts again with the engine running. I am looking for a very low reading. As a rough rule, anything above about 0.5V AC is suspicious on a basic multimeter test, although the exact limit can vary by vehicle. A scope gives a clearer picture, but a simple AC ripple test is often enough to justify deeper diagnosis.
This test is worth doing because a charging system can show acceptable DC voltage and still be electrically messy underneath. That is exactly the kind of fault that fools people into replacing a battery when the alternator is the real problem, or vice versa.
How I read the results without guessing
Once you have the numbers, the job is to interpret them in context. I do not care about one reading in isolation; I care about the pattern across rest, start-up, and load.
| What I see | What it usually means | What I check next |
|---|---|---|
| About 12.4-12.7V engine off and 13.7-14.7V running, stable under load | The charging system is probably healthy on a conventional car | Look elsewhere if the car still struggles to start |
| Stays near battery voltage with the engine running | The battery is not being charged properly | Belt, fuse, wiring, earths, alternator output, regulator |
| More than 15V on a standard 12V system | Overcharging, often regulator or control fault | Stop prolonged driving and inspect before more damage is done |
| Normal running voltage but the battery goes flat after standing | Battery wear or parasitic drain is more likely than alternator failure | Test battery health and look for current draw when parked |
| Voltage swings around with load or wiggling cables | Intermittent connection, belt slip, earth issue, or smart-charge control behaviour | Inspect the belt, tensioner, connectors, and charging control data |
That table is how I avoid the most common diagnostic trap: assuming every starting problem is caused by the alternator. The next section covers the mistakes that create that confusion in the first place.
Mistakes that make a good alternator look bad
Most bad diagnoses come from rushed testing, not from bad parts. The alternator gets blamed when the real problem is somewhere else.
- Testing a battery that is already deeply discharged and expecting a clean charging result.
- Measuring at dirty cable clamps instead of the battery posts.
- Checking only at idle and never with lights, blower, and demister switched on.
- Ignoring corroded terminals, loose connections, and tired earth straps.
- Forgetting the belt and tensioner, especially if there is squeal or flutter under load.
- Treating a smart-charging car like an old fixed-voltage system.
One point deserves special attention: a charging system is not designed to rescue a heavily discharged battery instantly. If the battery has been flat for a while, charge it properly first and then repeat the test. Otherwise you can end up condemning the alternator for doing a job it was never meant to do in one short drive.
Once those mistakes are out of the way, it becomes much easier to separate alternator faults from the other parts of the starting system.
When the alternator is not the real problem
I have seen plenty of cars with a perfect alternator and a battery that is simply worn out. A starter battery that is three to five years old is already in the danger zone, especially if the car does mostly short trips, sits outside in cold weather, or powers a lot of accessories.
Corroded terminals and bad earth straps are just as sneaky. They can create enough voltage drop to make a healthy charging system look weak. A slipping belt or failing tensioner can do the same thing by preventing the alternator from spinning fast enough under load. And if the car uses smart charging, the ECU may deliberately alter voltage in a way that looks odd until you check the live data or the maker’s specification.
There is also the possibility of a fuse, fusible link, or main cable fault between the alternator and the battery. In those cases the alternator may be making power, but the battery never sees it. That is why I always inspect the physical charging path before I reach for a replacement part.
If the alternator test is still inconclusive after those checks, the safest move is to use a proper workshop diagnosis rather than guess.
The next move when the reading is still unclear
If the numbers are borderline, I would not replace the alternator yet. I would charge the battery fully, retest the same way the next day, and compare the result. If the voltage changes dramatically after an overnight rest, battery condition or parasitic drain becomes more likely than alternator failure.
- Clean the battery terminals and the main earth points, then repeat the test with the same meter and the same probe positions.
- Inspect the belt, tensioner, and alternator pulley for slip, wobble, or noise.
- If the car has stop-start or battery management, check live charging data rather than relying on a single idle voltage.
- Use an auto electrician or garage with charging-system diagnostics if the reading is unstable, the ripple is high, or the battery lamp keeps returning.
That is the point where I stop guessing and let the measurements decide. A clean DC reading, a stable loaded voltage, and low ripple together give me confidence that the alternator is doing its job. If one of those pieces is missing, the car is already telling you where to look next.
