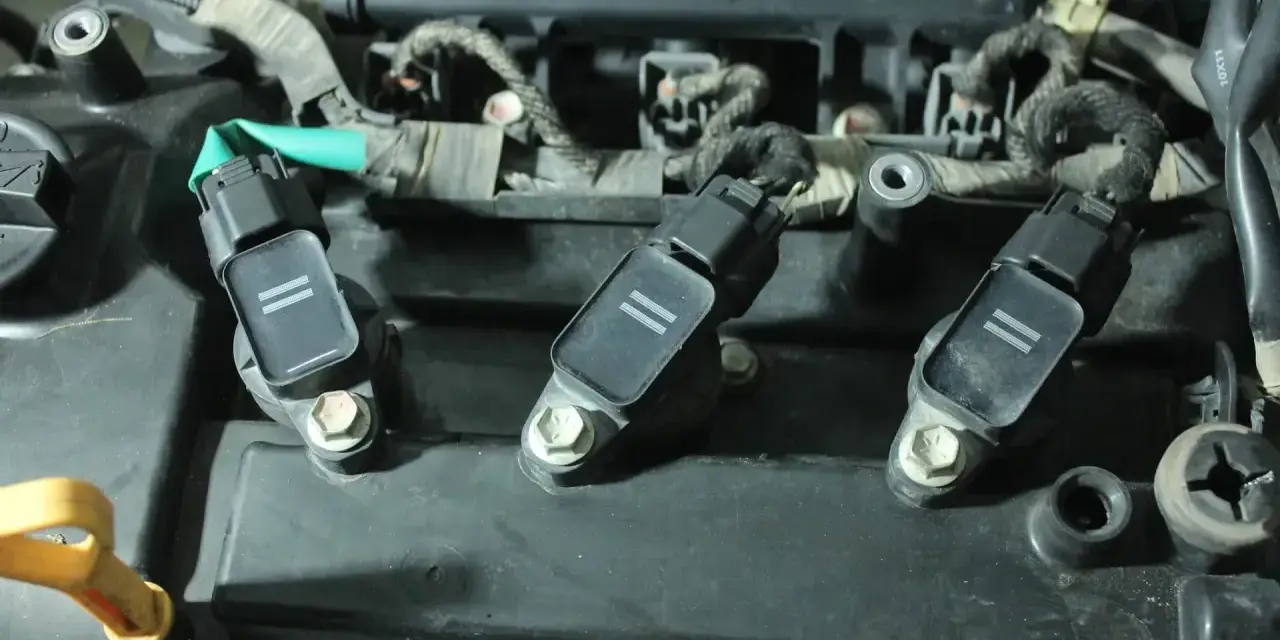

Testing an ignition coil is really about separating a weak spark from a wiring fault, a worn spark plug, or a problem elsewhere in the ignition chain. This guide walks through the checks that actually tell you something useful: what symptoms point to coil trouble, which tools are worth using, how to read resistance properly, and when a spark tester gives a clearer answer than a multimeter.
What matters most when testing an ignition coil
- Start with symptoms and fault codes, because a coil fault often looks like a misfire, not a dead engine.
- A multimeter is useful, but it mainly checks the coil’s windings and continuity, not full ignition performance.
- A spark tester is usually the better pass-or-fail check because it shows how the coil behaves under load.
- Resistance readings only mean something when you compare them with the vehicle’s factory specification.
- If the misfire moves with the coil during a swap test, the coil becomes the main suspect.
- Weak batteries, damaged plug boots, and wiring faults can mimic a bad coil and waste time if you ignore them.
How a weak coil shows up in a petrol engine
When an ignition coil starts to fail, the first clue is usually drivability, not a dramatic breakdown. On modern petrol cars, I would expect rough idle, hesitation under load, a flashing engine management light, or a misfire code such as P0300 or a cylinder-specific P0301 to P0304. If the misfire is bad enough, you may also notice a fuel smell from the exhaust, a slight popping on overrun, or a car that feels flat when you try to accelerate hard.

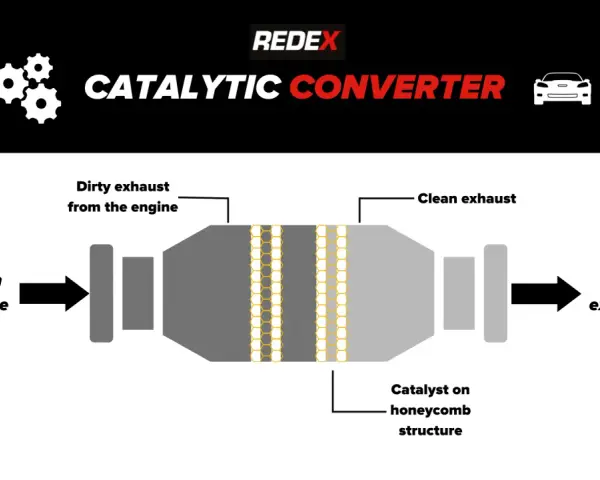

That exhaust side matters. A weak spark can leave unburnt fuel in the cylinders, which then passes into the catalytic converter. In other words, the fault is not just about starting or running badly; it can quickly become a bigger engine and exhaust problem if it is ignored. Once the symptoms point in that direction, the next step is to test the coil in a way that separates guesswork from evidence.
Set up the test properly before you touch the coil
I always start with the basics, because a surprising number of “bad coil” diagnoses are really battery, connector, or plug issues. Let the engine cool, switch the ignition off, and work with the battery disconnected for any resistance test. For a live spark test, keep hands and tools clear of the high-voltage side and make sure the vehicle is in park or neutral with the handbrake on. If the engine has been misfiring in wet weather, dry the plug wells and coil boots first, because moisture can mimic a failed coil very convincingly.
One more practical point: the battery needs to be healthy. A weak battery can reduce cranking speed and voltage, which makes a borderline ignition system look worse than it is. That is why I like to test the coil only after I know the power supply is not already dragging the system down. With the setup sorted, the choice of tool determines how much the result actually means.
The tools that tell you the most
| Method | What it tells you | Best use | Main limitation |
|---|---|---|---|
| Visual inspection | Cracks, carbon tracking, melted boots, corrosion, loose connectors | Fast first check before any electrical test | Can miss an internal fault that only appears under load |
| Multimeter | Primary and secondary winding resistance, continuity, open circuit, short to ground | Cheap screening test | Does not prove the coil can fire properly at operating voltage |
| Spark tester | Whether the coil can produce a strong spark under cranking or running conditions | More realistic functional test | Still does not show waveform quality or dwell |
| Scan tool | Misfire codes, misfire counters, freeze frame data, cylinder pattern | Finding which cylinder or condition matters most | It points you toward the fault, but does not prove the coil itself is good |
| Oscilloscope | Primary and secondary ignition waveform, dwell, burn time, firing line | Most precise diagnosis | Needs more skill and access to the right equipment |
If I had to pick only two tools for a home diagnosis, I would choose a decent digital multimeter and an inline spark tester. A scope is better, but most people do not need one to decide whether a coil is genuinely failing. The multimeter is the cheapest place to begin, so long as you read the numbers in context.
Check the coil with a multimeter the right way
For a basic resistance test, unplug the coil and compare the reading with the factory specification for that exact engine. Generic charts are only a rough guide. A lot of conventional coils will show a primary resistance somewhere around a fraction of an ohm to a couple of ohms, while the secondary circuit often sits in the several-kilo-ohm range. That said, some modern coil-on-plug units do not give you a meaningful secondary reading, so factory data beats guesswork every time.
- Set the meter to ohms and zero the leads if your meter allows it.
- Measure the primary side across the relevant low-voltage terminals.
- Measure the secondary side only if the coil design exposes a proper high-voltage terminal.
- Compare both readings with the vehicle specification, not with a random online chart.
- Watch for open circuit, dead short, or a reading that jumps around when you wiggle the connector.
- Inspect the plug boot and terminals at the same time, because corrosion can create a false failure.
The weak point of this test is that ohms only tell you about static condition. A coil can measure “in range” on the bench and still break down once it gets hot, vibrates, or has to fire across a plug gap under compression. If the resistance numbers look acceptable but the car still misfires, that is the moment to move to a live spark test rather than replacing parts on instinct.
A spark tester gives you a more honest result
A spark tester is the better functional test because it asks the coil to do real work. Instead of just measuring continuity, you are checking whether it can produce a strong, consistent spark under cranking or running conditions. That is much closer to the fault the driver actually feels. On most engines, I want to see a crisp blue spark that repeats cleanly, not a weak orange flicker or an intermittent miss.
The basic setup is simple: connect the tester between the coil output and earth, then crank or run the engine according to the tester’s instructions. If the spark is weak, erratic, or absent on one coil while the others are healthy, that is a strong clue. If you are testing a coil-on-plug system, use the tester designed for that format rather than improvising with old-school tricks and a screwdriver. Those shortcuts can be unsafe and they often tell you less than people think.
This is also where a scan tool helps. If the misfire counter points to one cylinder and the spark tester confirms a weak output on that same coil, the diagnosis starts to look solid. If the spark is good, the coil is probably not your main fault, which brings us to the part many people skip.
Why a coil can pass resistance and still fail on the road
One of the biggest mistakes I see is treating a resistance reading as a final verdict. It is not. Internal insulation can break down only when the coil gets hot, carbon tracking can leak spark outside the plug well, and a cracked boot can let the spark escape under load. Those faults often appear first in damp weather, during hard acceleration, or after a long motorway run when the engine bay is heat-soaked.
Another reason the numbers mislead people is that modern ignition systems are not all built the same. Some coil packs are easy to measure cleanly; others have integrated electronics that make the old resistance chart almost useless. That is why I treat resistance as a screening step, not a full decision-maker. If the car misfires mainly under load, on a wet morning, or after the engine is fully warm, I would trust a live spark test far more than a bench reading.
In practice, that means the question is not just “does the coil have continuity?” but “does it still fire properly when the engine demands it?” Once you think in those terms, the rest of the ignition path becomes much easier to check.
Rule out the common lookalikes before you replace the coil
If the coil looks suspicious, I still check the rest of the circuit before I order a replacement. A dead spark on one cylinder can come from a worn spark plug, a damaged connector, a poor power or ground feed, a faulty coil boot, or a wiring issue between the ECU and the coil. On a cylinder-specific misfire, a simple swap test is often very useful: move the coil to another cylinder and see whether the fault code follows the coil or stays with the original cylinder.
- If the code moves with the coil, the coil becomes the prime suspect.
- If the code stays on the same cylinder, the spark plug, injector, wiring, or compression needs attention.
- If several cylinders misfire together, check common power feeds, grounds, and engine management signals first.
- If the fault appears only when hot, look for heat-related breakdown rather than a simple open circuit.
I also pay attention to the spark plug itself, because a worn plug gap forces the coil to work harder. On a petrol engine that has been overdue a service, the coil may be the part that finally gives up, but the plug may be the real reason it failed early. That is why I do not like replacing coils in isolation when the rest of the ignition system has clearly been neglected.
The quickest route to a confident diagnosis
If I had to compress the whole process into one practical rule, it would be this: use the multimeter to screen, the spark tester to confirm, and the swap test to separate the coil from the rest of the ignition chain. That sequence avoids the usual trap of buying parts because one number looked slightly odd or one cylinder happened to misfire on a cold morning.
For UK petrol cars, that disciplined approach matters because a weak coil can affect more than drivability. It can raise exhaust emissions, damage the catalytic converter, and turn a small ignition fault into a much larger repair. When the result is clear, replace the faulty coil and then check the plugs, boots, and connectors so the next one is not working against the same problem. If the result is not clear, the fault is probably elsewhere, and that is exactly the point where a good diagnostic process saves both time and money.
