The radiator is the part of the cooling system that keeps engine heat under control. It takes hot coolant from the engine, releases that heat into the air, and sends the coolant back around the system so the engine can keep running at a safe temperature. In this guide I explain what a radiator in a car is, how it works with the rest of the cooling circuit, how it differs from the AC condenser, and which warning signs tell you it is time to act.
The radiator is the engine’s main heat exchanger
- Its job is to move heat from engine coolant into outside air.
- It works with the water pump, thermostat, fan, hoses, and pressure cap.
- Overheating, coolant loss, steam, and a sweet smell are the main red flags.
- The AC condenser is a different part, although it often sits in front of the radiator.
- Small faults are usually cheaper to fix early than after the engine has overheated.

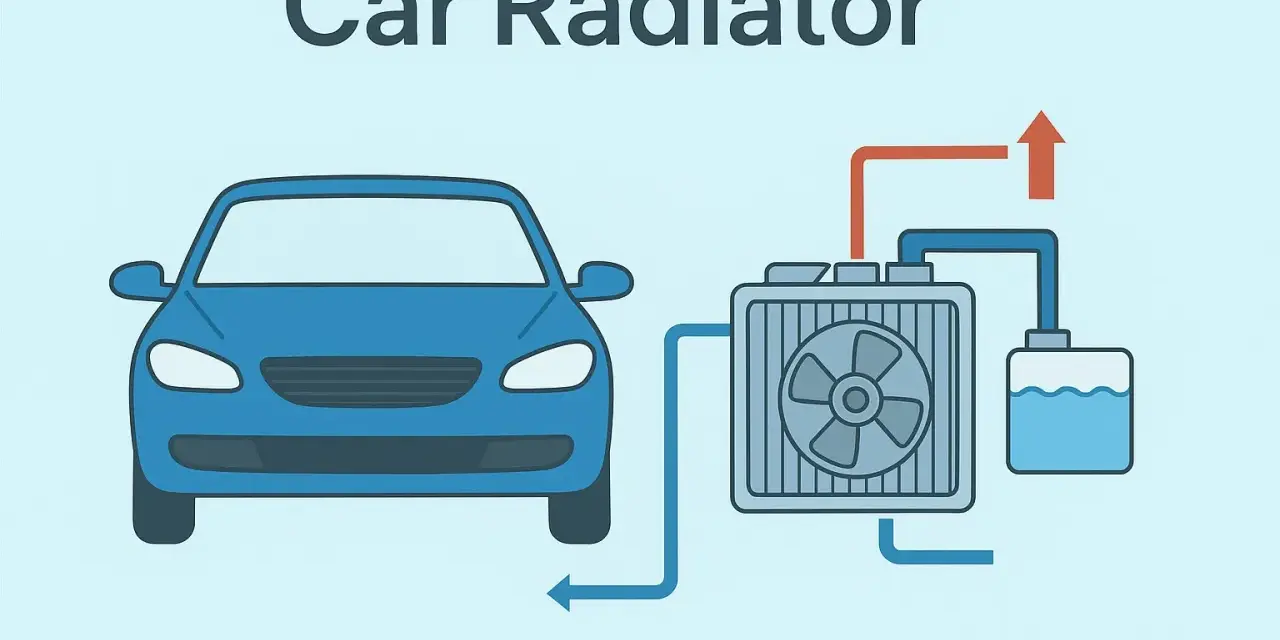

What a car radiator does
Think of the radiator as a heat exchanger rather than a storage tank. Coolant absorbs heat from the engine, travels through the radiator core, and gives that heat up through thin metal tubes and fins while air passes through the front of the car. Once the coolant has cooled down, it goes back to the engine and repeats the cycle.
The radiator itself is not what makes the engine cool down from scratch. It is part of a system, and that system depends on good coolant flow, enough pressure, clean fins, and enough airflow through the front of the car. I usually tell drivers to think in terms of the whole circuit, because a fault in one part can make the radiator look guilty when the real problem is somewhere else. That matters even more once you start looking at the pump, thermostat, and fan.

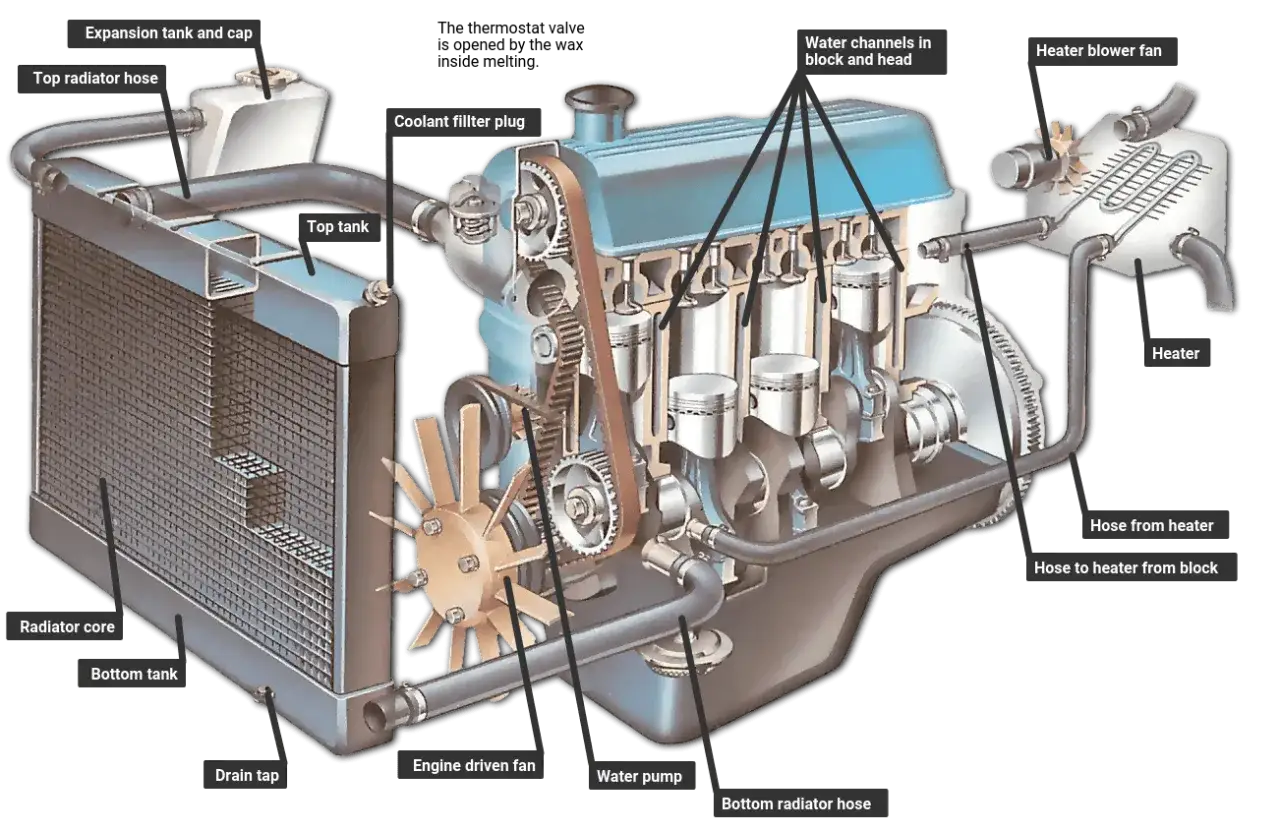

How the cooling circuit moves heat around
The radiator only does its job properly when the rest of the cooling circuit is behaving. The thermostat decides when hot coolant should leave the engine. The water pump keeps the coolant moving. The radiator fan pulls air through the core when road speed is too low to do the job by itself. The pressure cap and expansion tank manage pressure and extra coolant as temperatures rise and fall.
| Part | What it does | Why it matters |
|---|---|---|
| Water pump | Circulates coolant through the engine and radiator | Without flow, heat builds up fast |
| Thermostat | Opens and closes to control when coolant reaches the radiator | Helps the engine warm up quickly and stay stable |
| Radiator fan | Pulls air through the radiator at idle or in traffic | Stops the engine overheating when the car is not moving much |
| Pressure cap and expansion tank | Control pressure and extra coolant volume | Raise the boiling point and reduce overflow |
| Hoses | Carry coolant between components | A split hose can empty the system in minutes |
In most cars the thermostat opens only once the engine has reached its designed operating temperature, so the cooling system is not always at full flow from cold. That is normal. What is not normal is a temperature gauge that keeps climbing, especially in traffic or under load, because that usually means the system is losing control somewhere. That brings us to the difference between the radiator and the AC side of the car, which people mix up more often than they should.
Why the radiator is not the same as the AC condenser
The radiator belongs to the engine cooling system. The AC condenser belongs to the air conditioning system. They often sit close together at the front of the car, so a damaged grille, blocked fins, or road debris can affect both, but they handle different fluids and different jobs.
| Part | Fluid inside | Main job | Common symptom when it fails |
|---|---|---|---|
| Radiator | Engine coolant | Cools the engine | Overheating, coolant loss, steam, hot-running in traffic |
| AC condenser | Refrigerant | Dumps heat from the air conditioning system | Warm air from the vents, weak AC performance |
If the cabin air is warm but the engine temperature is steady, the AC condenser, compressor, refrigerant charge, or an AC-related fan problem is often the better place to look. If the engine itself is running hot, the cooling system is the priority. That distinction saves time, money, and a lot of guesswork, and it leads naturally to the warning signs that should not be ignored.
The warning signs I would not ignore
Radiator trouble usually announces itself before the engine gives up completely. The trick is knowing which symptoms are urgent and which ones are simply annoying. I treat any repeated overheating as a real fault, not a quirk of the car.
| Symptom | What it can mean | How urgent it is |
|---|---|---|
| Temperature gauge climbs in traffic | Weak fan, blocked radiator, poor airflow, low coolant, or thermostat trouble | Stop and investigate soon |
| Sweet smell from under the bonnet | Coolant leak | Urgent |
| Puddle under the front of the car | Split hose, cracked radiator tank, leaking cap, or loose connection | Urgent |
| Steam from the bonnet | Coolant boiling or spraying onto hot parts | Immediate stop |
| Cabin heater blows cold | Low coolant or air trapped in the system | Check soon |
| Rusty sludge or deposits in coolant | Contamination, corrosion, or old coolant | Check soon |
If the car has already overheated, I would not rush to open anything under the bonnet. Let it cool fully first. A sensible rule is to wait at least 30 minutes, and longer if the gauge is still high or steam is present, because pressurised coolant can scald badly. Once you know what the symptoms look like, the next step is understanding why they happen in the first place.
What usually causes radiator trouble in the UK
UK driving throws a fairly mixed set of conditions at a cooling system: cold starts, stop-start traffic, motorway runs, rain, salt, and plenty of short journeys. None of that is a problem on its own, but it does mean small weaknesses show up sooner.
- Corrosion - old coolant, contaminated coolant, or missed servicing can attack the inside of the radiator and narrow the passages.
- Blocked fins - leaves, mud, insects, and road grime reduce airflow through the core.
- Stone damage - a small impact can puncture a tube or weaken a tank and create a slow leak.
- Weak hoses or clips - sometimes the radiator is blamed when the real problem is a connection point.
- Failed pressure cap - if pressure is not held correctly, coolant can boil earlier and escape.
- Fan or thermostat faults - these do not mean the radiator is broken, but they can make it look as if it is.
In practice, I find that many “radiator problems” start as smaller cooling faults that were left too long. That is why diagnosis matters: replacing the biggest visible part is not always the smartest first move. The next section covers what to do before a breakdown turns into a bigger bill.
What to do if it starts overheating and what repairs cost in the UK
When the temperature gauge rises, the right response is usually simple and quick. Pull over safely, switch off the engine, and let everything cool before you inspect anything. If you need to check coolant, do it only when the engine is cold. Never remove the cap on a hot system. That is one of the easiest mistakes to avoid, and it can save you from a nasty burn.
- Stop driving as soon as it is safe to do so.
- Switch the engine off and leave the bonnet closed for a while.
- Check the coolant expansion tank only after the engine has cooled.
- Look for obvious leaks, split hoses, or damaged fins around the radiator.
- Book a garage if the coolant is low, the leak is visible, or the fault returns after topping up.
| Repair or check | Typical UK cost range | What that usually covers |
|---|---|---|
| Coolant leak repair | About £50 to £300 | Small leaks, hose issues, clamps, seals, or minor cooling-system work |
| Radiator repair | About £200 to £700 | Repair work that may include leak fixing or partial component replacement |
| Radiator replacement | About £400 to more than £2,000 | Full replacement, often higher on complex or premium cars |
| Cooling fan replacement | About £100 to £500+ | Faults that mainly show up in traffic or at idle |
The big takeaway here is that the radiator is not always the most expensive part of the job. Access, labour time, and whether other parts are damaged often matter more than the part itself. If the car has been overheated repeatedly, I would expect the garage to inspect the thermostat, fan, hoses, cap, and coolant condition before agreeing to a large replacement. That kind of check is also the best way to avoid paying for the wrong part.
The checks that save the most money later
If I were keeping a daily driver healthy, I would focus on a handful of checks rather than waiting for a failure. They are simple, but they catch most cooling issues early.
- Check the coolant level regularly when the engine is cold.
- Look through the front grille for bent fins, dirt build-up, or obvious damage.
- Watch whether the electric fan comes on when the car is idling or the AC is running.
- Pay attention to heater performance, because weak heat can point to low coolant or trapped air.
- Follow the vehicle’s coolant-change interval instead of topping up with random fluid.
- Fix small leaks early, because a cheap hose or cap can become a much larger overheating job if ignored.
For most drivers, the radiator does not need constant attention, but it does need respect. Keep an eye on temperature behaviour, use the correct coolant, and treat repeated overheating as a fault that deserves diagnosis rather than guesswork. That is the simplest way to keep the engine cool, protect the AC system from unnecessary strain, and avoid a repair bill that grows every time the warning light is ignored.
