The cooling system works best when heat, coolant, and airflow stay in balance
- The radiator is a heat exchanger that moves heat from hot coolant into the air flowing through the front of the car.
- Most cooling systems use a 50/50 mix of water and antifreeze, but the exact coolant should match the manufacturer specification.
- I check coolant at least twice a year, ideally before summer and before winter.
- If the engine overheats, I let it cool for at least 30 minutes before touching the cap, and longer if possible.
- Traffic-related overheating often points to airflow problems, such as a weak fan, blocked fins, or low coolant.
- Radiator problems can also reduce air conditioning performance because both systems depend on the same front-end airflow.

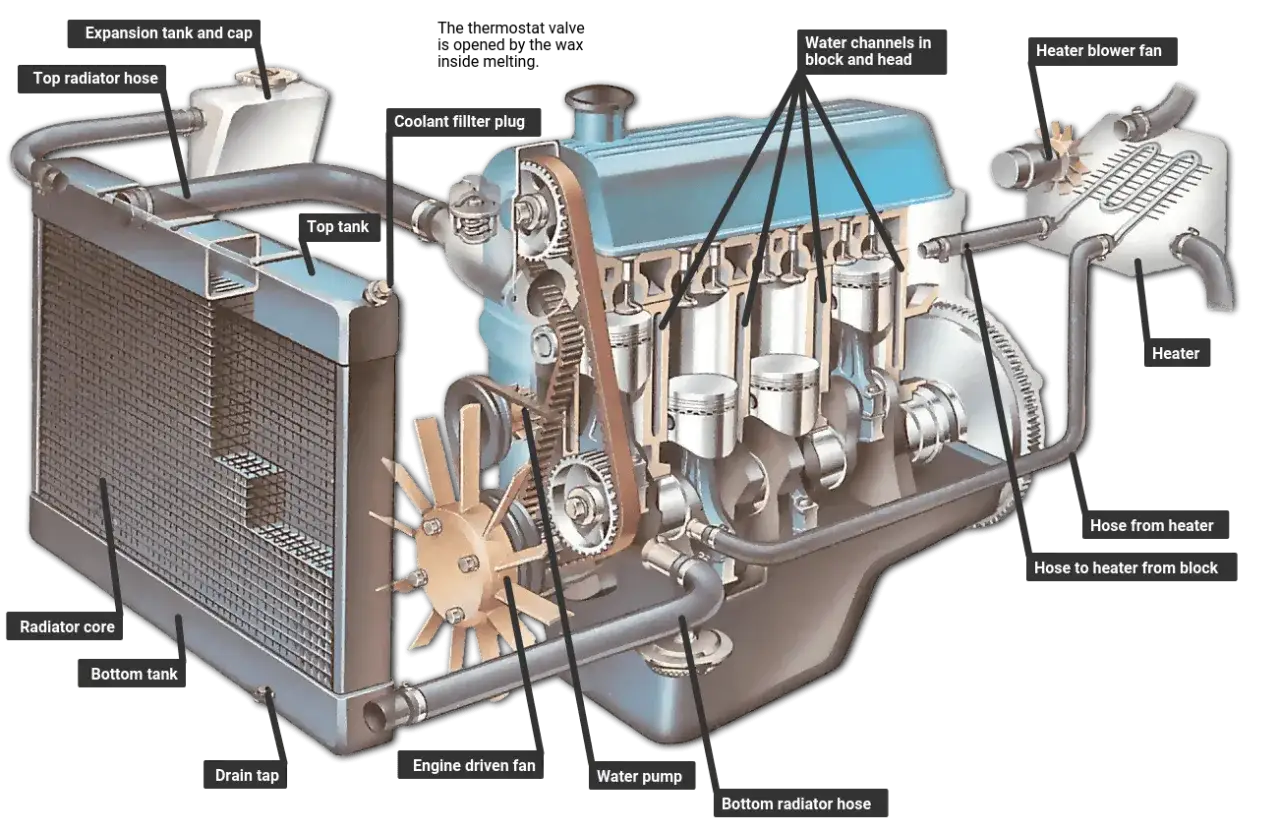

How the radiator removes heat from the engine
I think of the radiator as the last stage in the engine cooling loop. Coolant absorbs heat from the engine, the water pump keeps that liquid moving, and the thermostat decides when hot coolant is allowed into the radiator so the engine can reach operating temperature quickly. Once the hot coolant enters the radiator, thin tubes and fins transfer that heat into the air moving through the front of the car.
That is why the radiator is not working alone. It depends on three things working properly at the same time: good coolant flow, enough airflow, and a fan that takes over when the car is stationary or moving slowly. On the move, ram air does much of the work. In traffic, the electric cooling fan becomes much more important.
- Coolant carries heat away from the engine.
- The thermostat controls when coolant is sent to the radiator.
- The radiator core releases heat into passing air.
- The fan forces air through the radiator when road speed is too low to do it naturally.
Once you understand that chain, the warning signs make a lot more sense, especially the ones that show up first in slow traffic rather than on an open motorway.
The warning signs I treat as early radiator trouble
The earliest clues are usually simple: the temperature needle climbs, a coolant warning light appears, or the cabin heater suddenly goes cold. A healthy system should stay steady once the engine has warmed up, so any repeated movement in the gauge deserves attention. If the light is red, I do not keep driving and hope it settles on its own.
| Symptom | What it often points to | What I would do next |
|---|---|---|
| Temperature rises in traffic but settles at speed | Poor airflow, weak fan, or blocked fins | Check the fan and the front of the radiator, then have the system inspected if it repeats |
| Coolant smell, steam, or damp marks under the bonnet | Leak in the radiator, hose, clamp, or expansion tank | Stop topping up blindly and find the leak |
| Puddle of green, pink, orange, or blue liquid under the front of the car | Coolant loss from the cooling system | Check the level when cold and book a garage if the loss continues |
| Heater suddenly blows cool air | Low coolant or air trapped in the system | Inspect the coolant level before assuming the heater itself is faulty |
| Rusty, cloudy, or contaminated coolant | Ageing fluid, corrosion, or neglected maintenance | Plan a coolant change and system flush sooner rather than later |
If the temperature warning light is amber, that often means the coolant level is low. Red usually means the engine is overheating or the level has dropped too far to be safe. Either way, I treat it as a fault that needs checking, not as a dashboard suggestion that can wait until next week.
What to check before you blame the radiator itself
Drivers often focus on the radiator because it is the visible part at the front of the car, but several other faults can create the same symptoms. I would start with the basics, and only move toward major repairs after ruling out the smaller stuff. That saves time, money, and a lot of unnecessary parts swapping.
- Coolant level - Check the expansion tank when the engine is cold. The fluid should sit between the minimum and maximum marks, not above or below them.
- Coolant condition - Fresh coolant is usually clean and properly coloured. If it looks rusty, muddy, or oily, the system needs attention.
- Hoses and clips - A split hose or loose clamp can lose coolant faster than the radiator itself.
- Radiator cap or pressure cap - This is not just a lid. It helps maintain pressure in the system, which raises the boiling point of the coolant.
- Cooling fan - If the fan never comes on, the car can overheat in slow traffic while seeming fine at speed.
- Thermostat and water pump - A thermostat stuck closed or a failing pump can stop coolant from circulating properly.
One useful clue is hose temperature. If the engine is clearly hot but the top hose and radiator stay strangely cool, I start thinking about circulation or thermostat problems rather than assuming the radiator core itself is blocked. If coolant keeps disappearing and there is no obvious external leak, I also widen the search to the heater matrix, water pump, and, in worse cases, a head gasket issue.
Maintenance that keeps the cooling system healthy
The best radiator repairs are the ones you never need. Most cooling system trouble starts slowly, usually with old coolant, dirty fins, or a leak that was ignored because the engine still seemed to run normally. That is a bad bargain, because cooling problems escalate fast once the engine starts running hot.
| Maintenance task | Typical timing | Why it matters |
|---|---|---|
| Check coolant level and condition | At least twice a year, ideally before summer and winter | Catches small leaks and weak coolant before they become overheating problems |
| Change coolant | Follow the handbook, but many systems need it roughly every 2 to 5 years depending on coolant type | Fresh coolant protects against corrosion and helps the system stay efficient |
| Flush the system | Often around every 2 years for many cars, unless the manufacturer says otherwise | Removes sludge, contamination, and old inhibitor chemicals |
| Inspect fins, grille, and front end | At every service or after a dirty season | Leaves, bugs, and road grime reduce airflow through the radiator |
| Check hoses, clamps, and cap | At every service | Small failures here can mimic a radiator fault and drain coolant quickly |
I am also careful about coolant choice. Many modern cars use OAT coolant, and older vehicles often need a different formulation. Mixing the wrong types can weaken corrosion protection, so I would always match the handbook rather than pouring in whatever is on the shelf. When I clean the front of a car, I also pay attention to the radiator fins, because a light layer of leaves or dead insects is enough to reduce airflow more than most people expect.
There is one more link worth knowing here, because radiator health is not just about engine temperature. It also affects the air conditioning system when both components share the same airflow path.
How radiator health affects air conditioning too
On many cars, the air conditioning condenser sits in front of the radiator. That means both systems depend on clean airflow through the front of the vehicle, and both can suffer if the fan, grille, or radiator stack is blocked. If the car is fine at motorway speed but the air con gets weak in traffic, I start looking at airflow and cooling fan performance before I blame the refrigerant.
This is where the cooling and AC topics overlap in a very practical way. A weak radiator, a clogged front end, or a fan that is not pulling enough air can let under-bonnet temperatures rise, which makes the air conditioning work harder. It does not mean the AC system is broken on its own, but it does mean the two systems are affecting each other.
- If the cabin air is warm but the engine temperature is normal, the fault may be in the AC side, such as the compressor, condenser, or refrigerant charge.
- If the engine overheats first, the AC often becomes less effective as a side effect.
- If both problems show up together in stop-start traffic, airflow is one of the first things I would inspect.
That distinction matters, because it stops people from replacing the wrong part. A weak air con system does not automatically mean the radiator is bad, and a hot engine does not automatically mean the AC has failed.
When a cooling fault is no longer a quick fix
There is a point where topping up coolant and watching the gauge is no longer enough. If the engine keeps overheating, if the coolant drops below the minimum line again and again, or if you can see steam or a fresh puddle after every drive, I would move straight to proper diagnosis. A temporary sealant may help with a very small pinhole leak, but it is not a long-term answer if the system is under pressure or the leak keeps returning.

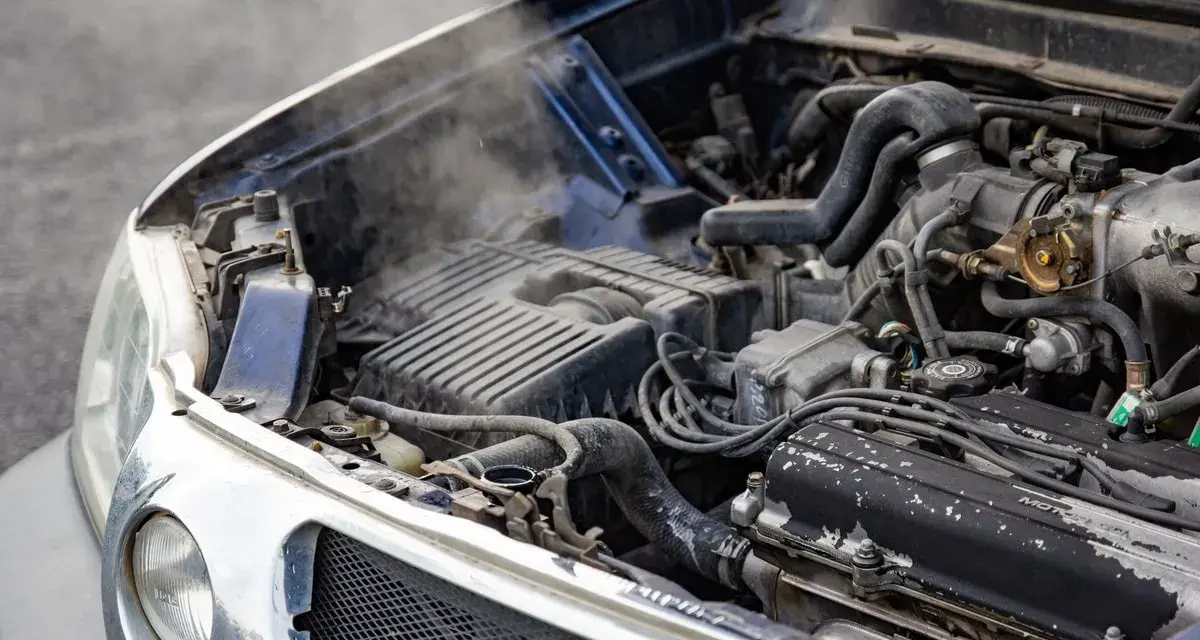

Never open a hot radiator or expansion tank cap. Let the engine cool for at least 30 minutes, and if possible wait an hour or two before doing anything. If the car has already overheated, I would not continue driving it and hope for the best. The safer move is to stop, let it cool, check the coolant level only when cold, and head to a garage if the warning comes back.
For most drivers, the smartest habit is simple: check the coolant twice a year, use the correct antifreeze, keep the front end clean, and react to the first sign of rising temperature. That is usually enough to keep the radiator doing its job and keep the rest of the cooling system out of trouble.
