A heater core replacement can turn an ordinary drive into a foggy, cold, coolant-smelling mess, and the job is rarely as simple as swapping a visible part under the bonnet. In this guide I break down what the repair actually involves, how I separate a failed matrix from a misleading symptom, and what a realistic UK price looks like in 2026. I also cover the shortcuts that look cheaper at first but usually cost more later.
Key points at a glance
- The heater matrix is a small radiator inside the dashboard, fed by hot engine coolant.
- Sweet coolant smell, damp carpets, misted windows, and weak cabin heat are the strongest warning signs.
- In the UK, a sensible 2026 budget is often £300 to £800 at an independent garage, with more complex cars costing more.
- Labour is the main cost because many cars need deep access behind the dash or into the HVAC box.
- A flush can help a blocked matrix, but a leaking one usually needs replacement, not a quick fix.

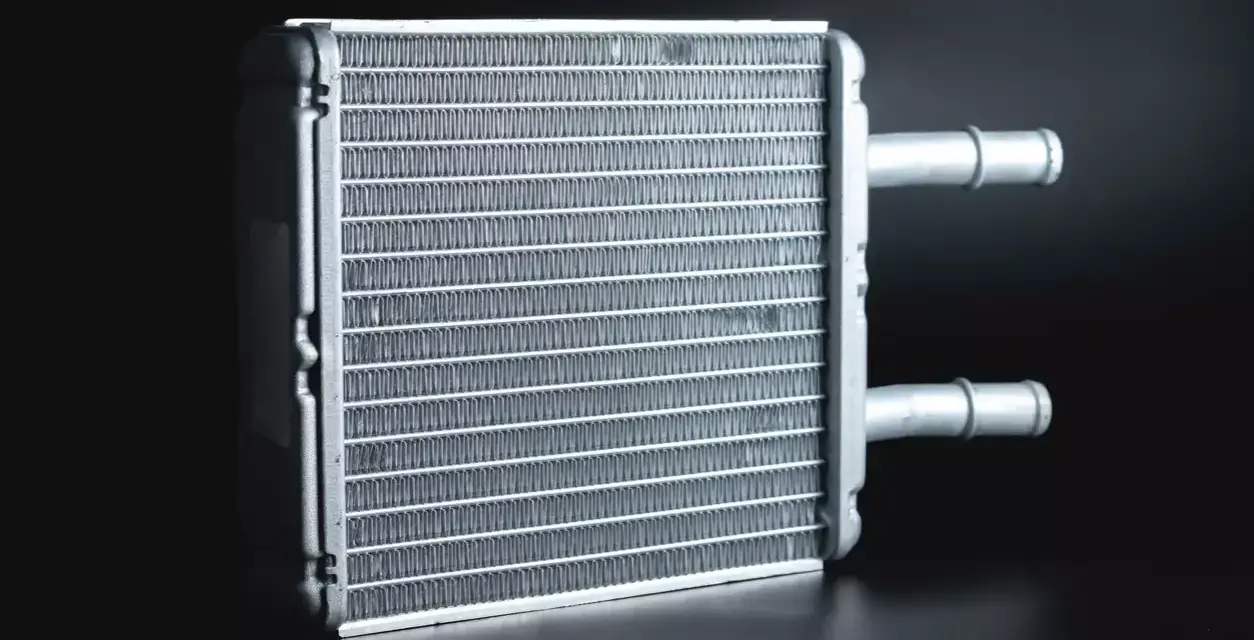

What the heater matrix does and why it fails
The heater matrix is a small radiator inside the HVAC box, which is the heating, ventilation, and air-conditioning case under the dash. Hot coolant flows through it, the blower pushes air across it, and that warm air comes out of the vents. When the part is healthy, you barely notice it; when it starts to fail, the problem usually shows up in the cabin before it shows up anywhere else.
In my experience, the failure usually comes down to one of a few things:
- Internal corrosion from old, contaminated, or mixed coolant.
- Sludge or scale building up inside the narrow tubes and restricting flow.
- A pinhole leak or cracked seam in the core itself.
- Failed seals at the hose connections where the matrix meets the bulkhead.
- Air trapped in the cooling system after recent repairs.
- A blend door or actuator fault that makes the heater seem dead even though the matrix is fine.
I also see a lot of people blame the heater matrix when the real issue is elsewhere in the cooling system. A thermostat that is stuck open, a low coolant level, or a weak water pump can all leave the cabin cold without the matrix being the root cause. Once you understand that, the warning signs become much easier to read.
That leads straight into the symptoms I check before I agree to a full strip-down.
The warning signs I look for before condemning it
The strongest clues are usually inside the car, not under it. A heater matrix fault tends to affect smell, visibility, and cabin dampness before it produces obvious engine-bay drama.
| Symptom | What it often points to | What I check next |
|---|---|---|
| Sweet smell inside the cabin | Coolant leaking from the matrix or pipe seals | Footwell carpet, screen misting, and coolant level |
| Damp passenger footwell | Matrix seepage or hose joint leak behind the dash | Hose connections at the bulkhead and the HVAC case |
| Foggy windscreen that returns quickly | Coolant vapour entering the cabin | Heater operation, smell, and any oily film on the glass |
| Weak or cold heat | Blocked matrix, airlock, thermostat issue, or blend door fault | Engine temperature, hose temperatures, and coolant flow |
| Coolant level keeps dropping | Leak somewhere in the cooling system, possibly the matrix | Pressure test and inspection of visible hoses, radiator, and header tank |
The mistake I try to avoid is replacing the part before I know the system is actually leaking through it. A bad thermostat can leave the heater lukewarm, and an airlock can make the heater seem intermittent, but neither one means the matrix itself is dead. If the coolant smell, damp carpet, and repeated top-ups all show up together, I become far less doubtful.
Once those clues line up, the next question is what the repair actually involves behind the dashboard.
How the repair is carried out on a modern car
On some cars the heater matrix is easy to reach from behind the glovebox or centre trim. On others, the dashboard has to come out or at least be shifted enough to open the HVAC case, and that is where the labour bill starts climbing. That is also why this job can feel expensive even when the part itself is not.
- Let the engine cool fully and drain the coolant safely.
- Disconnect the battery if the dash trim, airbags, or electrical connectors need to come out.
- Remove the lower dash panels, glovebox, centre trim, or other interior parts that block access.
- Open the HVAC box and disconnect the heater hoses at the bulkhead.
- Release the retaining clips or screws and remove the old matrix.
- Fit the new core with fresh seals or O-rings, which are the rubber seals that stop coolant leaks at the joints.
- Reassemble the dash, refill the cooling system, and bleed out trapped air.
- Pressure-test the system, then confirm that the heater works at idle and on the road.
One detail matters more than most people expect: some cars require the air-conditioning side of the HVAC box to be disturbed as well. If the evaporator is in the same housing, the A/C system may need to be evacuated and re-gassed, which adds time and cost. That is why one quote can look perfectly reasonable while another looks inflated for the same basic fault.
By the time the trim, hoses, seals, coolant, and test time are added together, the price starts to make sense, which brings me to the numbers.
What I would budget for the job in the UK
UK price data points in the same direction: WhoCanFixMyCar lists an average heater matrix replacement at £283.06, while Checkatrade puts typical garage labour in 2026 at roughly £40 to £80 per hour. I would treat the first figure as a useful benchmark for simpler jobs, not a promise, because a six-hour dash-out repair can swallow most of the bill before parts are even counted.
| Scenario | Typical UK price | What drives the cost |
|---|---|---|
| Diagnostic check and coolant top-up | £60 to £150 | Used when the fault is not yet confirmed or the issue turns out to be low coolant, not the matrix |
| Common car with decent access | £300 to £600 | Independent garage labour, aftermarket part, and a straightforward strip-down |
| Dash-out or premium model | £650 to £1,000+ | Extra labour, fragile trim, specialist access, and more time to bleed and test the system |
| Main dealer or very complex HVAC layout | £1,000 to £1,500+ | Higher labour rates, OEM parts, and model-specific procedures |
There are a few extra costs people forget to ask about. Fresh coolant, new clips, O-rings, a thermostat if the system has been running cold, and an A/C regas if the housing has to be opened can all add to the final invoice. I also like to check whether the quote includes pressure testing and bleeding, because those two steps are not optional if you want the repair to last.
If a quote looks unusually cheap, I would ask exactly what is included before I assume it is a bargain. The next decision is whether the job is sensible to do at home or better left to a garage.
How I decide between DIY, a garage, and a dealer
I only see DIY as realistic on older cars with obvious access, a good workshop manual, and someone who is already comfortable with cooling-system work. On a modern car, one brittle clip, one hidden airbag fastener, or one missed bleed point can turn a weekend job into a far bigger headache. That risk rises again if the A/C circuit, dash wiring, or passenger airbag trim sits close to the heater box.
| Option | Best for | Main advantage | Main risk |
|---|---|---|---|
| DIY | Older cars with clear access and a patient owner | Lowest parts bill | Air pockets, broken trim, wrong coolant, or a missed leak |
| Independent garage | Most everyday cars | Best balance of price and competence | Quote quality varies, so itemisation matters |
| Main dealer | Warranty cars, premium models, or tricky HVAC layouts | Model-specific procedures and parts support | Highest labour rate |
When I ask for a quote, I want three things to be explicit: whether the matrix alone is being replaced or the whole HVAC housing is coming apart, whether the coolant and bleed procedure are included, and whether an A/C regas is needed. If a garage cannot answer those questions clearly, I would keep looking. An itemised quote usually tells you more than a low headline price ever will.
Once the new matrix is in, the final job is making sure the whole system behaves properly rather than just producing warm air for one test drive.
What I check after the new matrix goes in
A good repair should leave the cabin warm, dry, and free of coolant smell. I want the heater to work at idle, in traffic, and at motorway speed, with no gurgling from the dash and no slow drop in coolant level after a couple of heat cycles.
- The cabin gets hot evenly, not only when the engine is revved.
- The windscreen stays clear instead of fogging up again.
- The passenger carpet stays dry after several drives.
- The coolant level settles and does not keep falling.
- There is no sweet smell from the vents or under the dash.
- The hose joints, clips, and bleed points remain dry after a pressure test.
If the old coolant came out rusty, sludgy, or contaminated, I would insist on a proper system flush rather than just refilling and hoping for the best. A new matrix can fail early if the rest of the cooling system is full of debris, and a sticky thermostat can still distort the way the heater behaves even after the repair. That is the part many owners miss: the matrix is only one piece of the cooling system, so the real win is fixing the cause, not just the symptom.
When I price this job for someone, I ask for the part brand, labour hours, coolant spec, and whether the A/C side is touched at all. That checklist usually separates a fair quote from a vague one, and it is the simplest way to avoid paying twice for the same fault.
