Keeping the cooling system at the right level is one of those small jobs that can save you from a far bigger repair later. This guide shows how to check coolant level safely, what the reservoir markings actually mean, and when a low reading is just a top-up versus a sign of a real fault. I’m also including the practical bits that matter on UK cars: where to look under the bonnet, what fluid to use, and what to do if the level keeps dropping.
The cold reservoir reading is the one that counts
- Check only when the engine is cold. A hot cooling system is pressurised and can spray scalding coolant.
- Most cars use a translucent expansion tank with MIN/MAX marks or a cold fill line.
- With the engine cold, the level should sit between the marks, not above the top line and not below the bottom line.
- If the level keeps dropping, I treat that as a leak or cooling-system fault, not normal wear.
- If the coolant is concentrate, it usually needs distilled or deionised water mixed in the ratio your handbook specifies, often 50/50.
What the coolant reading is actually telling you

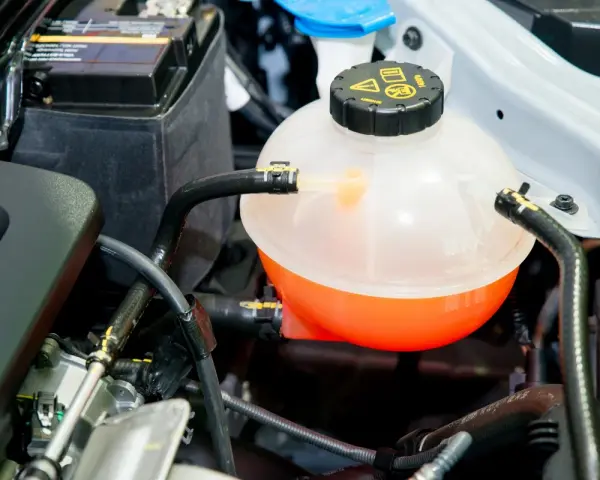

On most cars, I am not checking the radiator first; I am checking the translucent expansion tank, which is also called the coolant reservoir. The engine needs to be cold because coolant expands as it heats up, so a warm system can look fuller than it really is. That is why the handbook usually points you to a cold fill line or the MIN and MAX marks on the tank.
If your car still uses a radiator cap rather than a visible reservoir, I would follow the owner’s manual exactly and leave the cap alone unless the engine is fully cold. A pressurised cooling system can cause serious burns, and there is no advantage to guessing. Once you know where the reading comes from, the rest is straightforward.
When the level is steady and the engine warms up normally, the system is usually doing its job. Once the reading starts drifting down, the next step is a proper check rather than another quick glance.
How to check coolant level safely
- Park on level ground, switch off the engine and apply the handbrake.
- Wait until the bonnet, upper hoses and reservoir are fully cool to the touch.
- Open the bonnet and locate the coolant reservoir or expansion tank.
- Read the level against the MIN/MAX marks or the cold fill line without removing the cap.
- Use a torch if the tank is dark or hard to see through, and look for stains, crusty residue or damp patches around the cap and hose joints.
- Close the cap securely and shut the bonnet once you have finished.
That is the basic check. If the level is within range and the fluid looks clean, you usually do not need to do anything else right away. The next step is knowing how to read the result without misdiagnosing it.
How to read the marks without misreading the result
I like to keep the interpretation simple. A cold reading between the marks is normal. A reading just under MIN usually means the system wants a small top-up or has lost some fluid. A reading far below MIN is where I start thinking about leaks, trapped air or a component problem.
| Reading | What it usually means | What I would do |
|---|---|---|
| Between MIN and MAX | Normal cold reading | Leave it alone and recheck later |
| Just under MIN | Small loss or a minor top-up needed | Add the correct coolant to the upper mark and monitor it |
| Well below MIN | Likely leak, trapped air or recent loss | Top up only enough to protect the engine, then inspect the system |
| Above MAX when cold | Overfilled or the car was checked too warm | Recheck cold; do not keep adding fluid |
| Rusty, oily, muddy or milky fluid | Contamination or a deeper cooling fault | Book an inspection |
Colour alone is not a reliable diagnosis. Green, pink, blue and orange coolants can all be normal depending on the manufacturer, so I pay more attention to the specification, the level and the condition than to the colour. If the fluid looks wrong, I treat that as a warning sign, not a styling choice.
Once the reading makes sense, topping up is simple enough, but only if you use the right fluid and stop at the right level.
Top it up the right way
If the level is low, I top it up with the coolant specified in the handbook, not whatever bottle happens to be on sale. Some products are premixed and ready to pour; others are concentrate and must be diluted with distilled or deionised water, commonly at a 50/50 ratio unless the manufacturer says otherwise. I avoid tap water because the minerals can leave deposits and reduce protection over time.
- Use a funnel and pour slowly to reduce spills and air pockets.
- Stop at the MAX or cold fill line, not above it.
- Wipe off any drips from the tank, cap and surrounding plastic.
- Refit the cap firmly, then recheck the level after the engine has cooled again.
If the reservoir was nearly empty, that top-up is only the first part of the job. The system may have lost coolant through a leak, or the level may settle again after trapped air works its way out, so I like to check it again the next morning when the engine is stone cold.
When low coolant points to a fault, not a one-off top-up
This is the point where I stop treating it as routine maintenance. If the level keeps dropping, the usual suspects are a leaking hose, a tired radiator cap, a cracked expansion tank, a failing water pump or, in some cases, a heater matrix leak inside the cabin. On a UK car, a sweet smell, a damp patch under the front of the car or weak cabin heat are all worth taking seriously.
The heater matters more than many drivers realise because it depends on engine coolant. The air conditioning can still blow cold while the engine is short on coolant, which is one reason people miss the warning until the temperature gauge moves or the dashboard light comes on.
- If the temperature warning light comes on, pull over safely and switch the engine off.
- If you see steam, do not open the cap.
- If the heater goes cold while the gauge climbs, assume the system is losing coolant rather than just running warm.
- If you have to top up more than once in a short period, get the system pressure-tested.
That kind of repeat loss is the difference between a minor maintenance job and a repair that needs diagnosis. The habit that keeps it under control is simpler than most people expect.
The small checks that keep the cooling system steady
I check coolant before long motorway trips, before winter sets in and after any overheating event. I also look at the cap seal and the top hose while the bonnet is open, because a split hose or weak cap is often easier to spot than the leak it creates.
- Keep the correct coolant mix in the garage if you drive an older car or a high-mileage one.
- Make the reservoir part of your monthly visual check, alongside oil and washer fluid.
- After any top-up, note the date and recheck the level at the next cold start.
- If you are not sure the car takes premix, concentrate or a specific specification, use the handbook instead of guessing.
When the level stays steady, the engine warms up normally and the cabin heater behaves as it should, the cooling system is usually healthy. If it does not stay steady, I treat that as a fault to fix rather than fluid to keep replacing.
