When an engine climbs toward the red while the car is stationary, I stop thinking about a random sensor fault and start thinking about cooling airflow. That pattern usually points to a weak radiator fan, low coolant, a blocked radiator or condenser, or a thermostat or water pump issue that only shows itself when road speed is no longer helping. This guide explains what the symptom usually means, how I would diagnose it, what to do before the damage spreads, and what the common UK repairs tend to cost.
The fastest checks when an engine only gets hot at idle
- Idle-only overheating usually means airflow or circulation, not just "the engine runs hot".
- If the problem gets worse with the A/C on, check the radiator fan, fan relay, fuse, or condenser airflow first.
- A coolant top-up or bleed can be roughly £40-£90; a fan repair, thermostat, water pump, or radiator job is usually more.
- If the gauge hits red, steam appears, or coolant is leaking, stop driving and let the engine cool fully.
- If the car cools down once you start moving again, that is a strong clue that the fault is in the fan or airflow path.
What idle overheating usually means

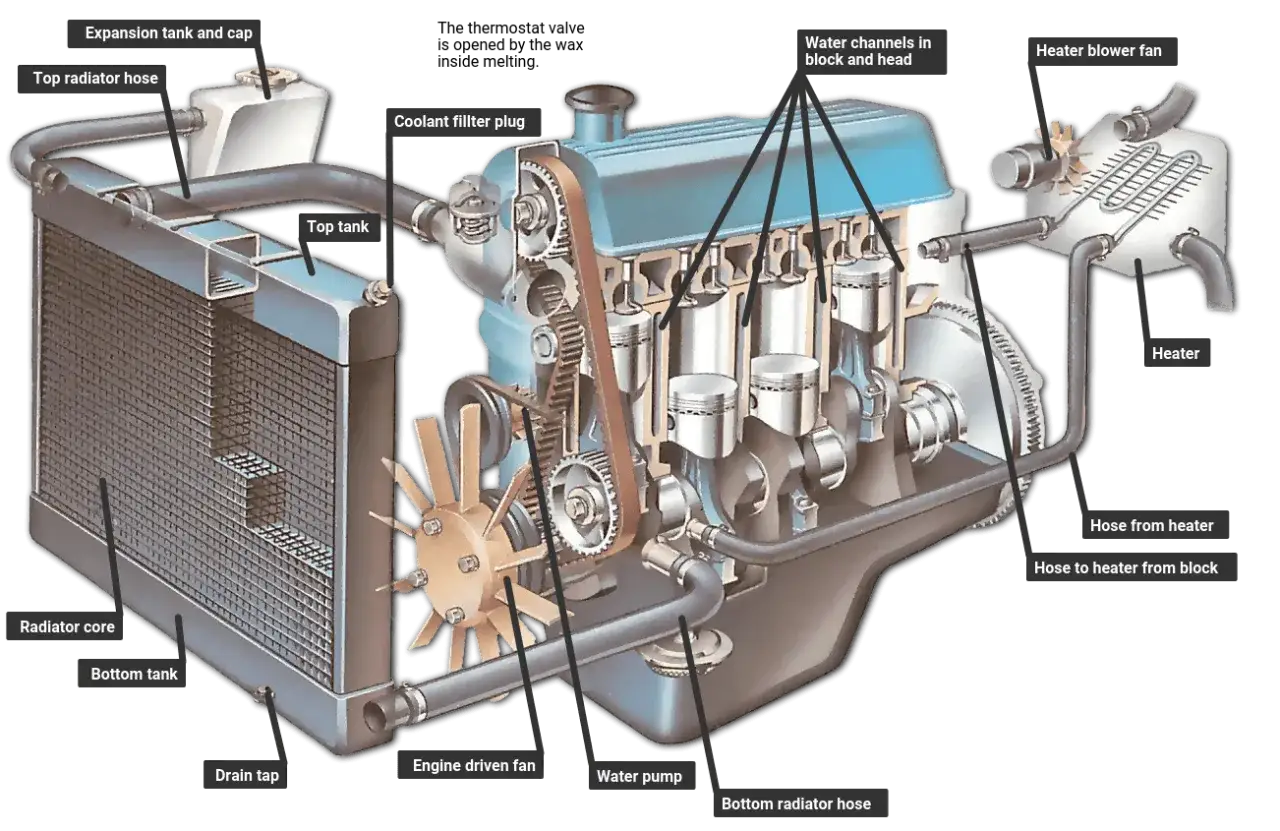

At cruising speed, air is forced through the radiator by the car's movement. At idle, the system has to rely on the electric fan to pull air through the A/C condenser and the radiator at the same time, so a weakness that is barely noticeable on the road becomes obvious in traffic. That is why a car can seem fine on the motorway and still run hot in a queue outside a supermarket.
Why traffic exposes the fault
The engine is still making heat at idle, but there is much less natural airflow to carry that heat away. If the cooling system is healthy, the fan and coolant circulation keep up. If one part is marginal, the weakness shows up first when the car is standing still, creeping forward, or idling after a long run.
Read Also: Car Air Conditioning - Fix Common Issues & UK Costs Guide
Why the A/C matters
When the air conditioning is on, the condenser dumps extra heat into the front of the car. If the fan only works at low speed, the relay is tired, or the fan motor is weak, the extra heat has nowhere to go. I usually treat that as an airflow problem first, not a compressor problem.
That clue narrows the field quickly, which is useful because the cheapest fix is often a simple electrical or airflow fault, not a major engine repair.
The faults I would check first
I like to separate the likely causes by the pattern they create, because guessing costs money. A car that overheats only at idle behaves very differently from one that overheats at any speed.
| Pattern | Most likely cause | Why it fits | First check |
|---|---|---|---|
| Only overheats when stationary, especially with A/C on | Cooling fan circuit, fan motor, relay, fuse, or control issue | There is not enough airflow when the car loses road speed | Turn the A/C on and listen or look for fan operation |
| Heat rises after a coolant top-up or recent repair | Airlock, low coolant, small leak, or weak radiator cap | Trapped air interrupts circulation and lowers system pressure | Check coolant level only when cold, then inspect for leaks |
| Heats up in traffic and the heater output drops | Thermostat stuck closed or partly closed, or poor circulation | Coolant is not moving through the system as it should | Watch hose temperature changes and inspect the thermostat area |
| Stays hot even when driving at speed | Blocked radiator, severe coolant restriction, or weak water pump | Cooling loss is no longer just an idle problem | Inspect radiator fins, hoses, and coolant flow paths |
One detail I always keep in mind: a thermostat that sticks open usually gives the opposite problem, with slow warm-up or weak heater output, so I do not blame the thermostat too quickly unless the symptom pattern fits. Once you sort the pattern, the next step is to check the car in a deliberate order instead of swapping parts at random.
How to diagnose it without guessing
If I were diagnosing this on my own drive, I would follow the same sequence every time. It keeps me from replacing parts in the wrong order.
- Check the coolant level only when the engine is completely cold. Low coolant or a fresh airlock can mimic a failed part.
- Start the engine, switch the A/C on, and watch whether the radiator fan comes in. On many cars, the fan should run or step up to a higher speed when the A/C is requested.
- Look through the grille and at the radiator and condenser stack for leaves, mud, plastic bags, bent fins, or road grime. A dirty condenser can choke the airflow before the radiator ever gets a chance to cool properly.

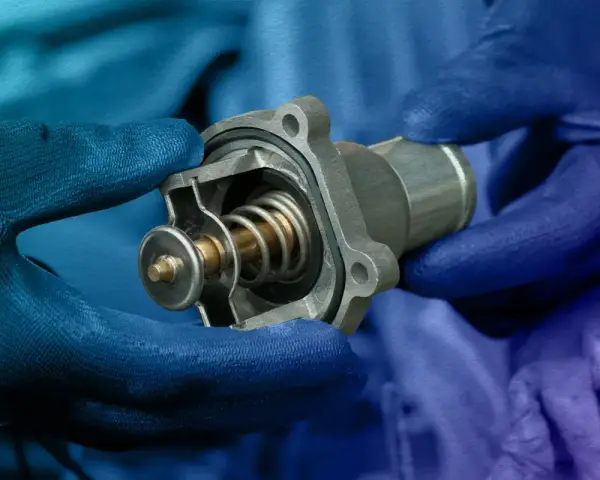

- As the engine warms, feel for a sudden change in the upper radiator hose. A thermostat that opens properly usually causes a noticeable temperature shift once coolant starts circulating.
- Look for leaks around hoses, the expansion tank, the water pump area, radiator end tanks, and heater hoses. Small leaks often leave dried pink, blue, or green residue.
- If the fan never runs, test the fuse, relay, temperature sensor, and fan motor before looking at the water pump.
If the fan works but the car still overheats at idle, I start leaning toward poor circulation, an internal radiator restriction, or a pump that is moving less coolant than it should. That is where the diagnosis gets more specific, which is exactly why the next step matters.
What to do immediately if the gauge climbs
Once the needle starts climbing, I want the driver to protect the engine first and troubleshoot second. Continuing to sit in traffic and "see what happens" is how a manageable fault becomes warped heads, cooked coolant, or a ruined gasket.
- Switch the A/C off immediately to remove load from the system.
- Set the heater to full hot and the blower to high, because the heater matrix can dump some heat out of the engine.
- Pull over safely as soon as traffic allows.
- Shut the engine off if the gauge is in the red, steam appears, or the warning light stays on.
- Do not open the expansion tank cap until the engine is fully cool.
If the car cools down and then overheats again as soon as you return to idle, I treat that as confirmation that the fault is not just "it was a hot day". It is a system that cannot shed heat at low speed, and that needs proper repair rather than repeated roadside resets. Once you know that, the repair cost question becomes the next sensible one.
What repairs usually cost in the UK
In the UK, the price depends on how far the fault has spread. A simple top-up or bleed is much cheaper than a fan assembly or a radiator replacement, and I would rather spend money on diagnosis than replace the wrong part.
| Repair | Typical UK cost | What it usually solves |
|---|---|---|
| Coolant top-up, bleed, or change | £40-£90 | Low fluid, trapped air, or stale coolant |
| Cooling fan repair | £140-£200 | Failed fan motor, relay, fuse, or control fault |
| Thermostat replacement | £95-£215 | Stuck or sluggish thermostat |
| Water pump replacement | £115-£375 | Weak circulation, leak, or noisy pump bearing |
| Radiator repair or replacement | £150-£350 | Blocked, leaking, or corroded radiator |
The spread is wide because make, model, and access all matter. Timing-belt-driven water pumps often cost more in practice because the labour overlaps with other work, and a car with tightly packed cooling hardware can take longer than a simpler setup. If the fault is still unclear after the basic checks, a proper cooling-system pressure test and fan-circuit test usually beats guessing at parts. Once the repair is done, the real value comes from making sure it does not return.
How to keep the same fault from coming back
Once the fault is fixed, I would not leave the cooling system on autopilot. Most repeat overheating cases I see come from maintenance that was delayed, not from one dramatic failure.
- Check the coolant level periodically when the engine is cold.
- Use the coolant specification the manufacturer calls for, not just whatever is on the shelf.
- Keep the radiator and condenser faces clear of leaves, insects, and road film.
- Pay attention if the temperature rises only with the A/C on or only in slow traffic; that is usually the first warning of a fan or airflow problem.
- Fix small leaks early, because a tiny drip can turn into an airlock and a bigger repair later.
I also like to test the fan after any service work that involved draining coolant or removing the front bumper. A system can be filled to the correct level and still overheat at idle if the fan circuit was left unhappy. That is the sort of thing that saves a second visit when it is caught early.
The clue that usually separates a fan fault from a deeper cooling problem
The quickest rule I use is simple: if the car overheats only at idle or with the A/C on, I suspect airflow first; if it overheats at idle and at speed, I move toward circulation, restriction, or coolant loss. That one distinction prevents a lot of wrong repairs. A fan circuit fault, dirty condenser, or low coolant can often be fixed without drama, but repeated overheating should never be shrugged off because the cost rises fast once the head gasket, hoses, or radiator start to fail too.
So my order is always the same: confirm coolant level, confirm fan operation, check the condenser and radiator face, then work outward to thermostat, pump, and radiator condition. Start there and the diagnosis stays practical, which is exactly what you want when the gauge is climbing in traffic.
