OBD is the car’s built-in diagnostic language: it monitors engine and emissions systems, stores fault information, and gives you a structured way to find problems instead of guessing at parts. For UK drivers, it matters whenever the engine management light appears, when a car runs poorly, or when an emissions-related fault needs a proper diagnosis. In this guide, I explain what OBD means, how the system works, what the codes really tell you, and how to use the data without chasing the wrong fix.
The short version of what OBD does and why it matters
- OBD stands for On-Board Diagnostics, the vehicle’s self-checking system for engine and emissions faults.
- It watches sensors and control modules, then stores diagnostic trouble codes when something moves out of range.
- The 16-pin diagnostic port lets a scan tool read live data, freeze-frame data, pending codes, and stored codes.
- A code is a clue, not a verdict; the same fault code can have several possible causes.
- In the UK, OBD is especially useful for emissions-related diagnosis and for understanding an engine management light before a garage visit.
What OBD means in a car
In plain English, OBD is the system that lets a car monitor itself. Modern ECUs compare sensor readings with expected behaviour, and when something looks wrong for long enough, the system logs a fault and may switch on the warning lamp on the dashboard. That warning light is often called the check engine light, but in the UK you will also hear engine management light or MIL, the malfunction indicator lamp.
The important part is not the light itself. It is the data behind it. OBD gives the vehicle a way to report which system needs attention, whether the fault is current or pending, and whether the problem is likely in fuel delivery, ignition, emissions control, or communication between modules. Most cars expose that information through a standard 16-pin diagnostic connector, usually tucked under the dash near the steering column.
In Europe and the UK, you will sometimes see the term EOBD, which is the emissions-focused European version of the same idea. The naming changes a little, but the job is the same: help the car report faults before they become bigger problems. Once that is clear, the next step is understanding why this system matters so much in day-to-day diagnostics.
Why it matters for diagnostics
I treat OBD as a starting point, not a conclusion. That distinction saves a lot of time and money. A good scan can tell you that a misfire is present, that a catalyst efficiency monitor has failed, or that the car has a communication fault between modules, but it will not tell you the exact broken part without further checks.
That is still valuable. OBD often catches a problem before the driver feels a major symptom. A weak coil pack, a failing oxygen sensor, a small vacuum leak, or an EVAP issue can sit quietly for a while before the car starts running badly. If you read the data early, you can focus on the right circuit instead of replacing parts in the dark.
It also helps separate serious faults from less urgent ones. For example, a constant warning light may point to an emissions issue that needs attention soon, while a flashing light can suggest an active misfire that may damage the catalyst if the car keeps running that way. In other words, OBD does not just tell you something is wrong; it helps you judge how quickly you need to act. From there, the real value lies in knowing how to read the information properly.
How the codes are read and what they mean
When a scanner plugs into the port, it can pull out several layers of information. The most obvious is the diagnostic trouble code, or DTC. That code is usually only the label, not the whole story. A professional diagnosis often also looks at freeze-frame data, which is a snapshot of engine conditions at the moment the fault was recorded, and live data, which shows how sensors are behaving right now.
| Code family | What it relates to | Typical example | What it usually points to |
|---|---|---|---|
| P | Powertrain | P0300 | Engine, ignition, fuelling, transmission, emissions-related faults |
| B | Body | B00xx | Airbags, climate control, comfort systems, interior electronics |
| C | Chassis | C00xx | ABS, steering, suspension, brake-related systems |
| U | Network | U0100 | Communication faults between modules on the vehicle network |
The first letter tells you the system family, and the numbers narrow the fault type. A generic code such as P0xxx is broadly standardised, while manufacturer-specific codes can depend on the brand and sometimes need a better scan tool to interpret correctly. That is why a code like P0420 often gets blamed on the catalytic converter too quickly. I have seen the same code caused by an exhaust leak, a tired oxygen sensor, wiring damage, or fuelling problems upstream of the catalyst.
Two details matter here. First, a pending code may appear before a fault becomes fully confirmed, so it can be useful when the problem is intermittent. Second, freeze-frame data can save a diagnosis if you read it before clearing the codes, because it shows engine load, temperature, speed, and other conditions at the time the fault appeared. That leads naturally to the question of what kind of scanner you actually need.

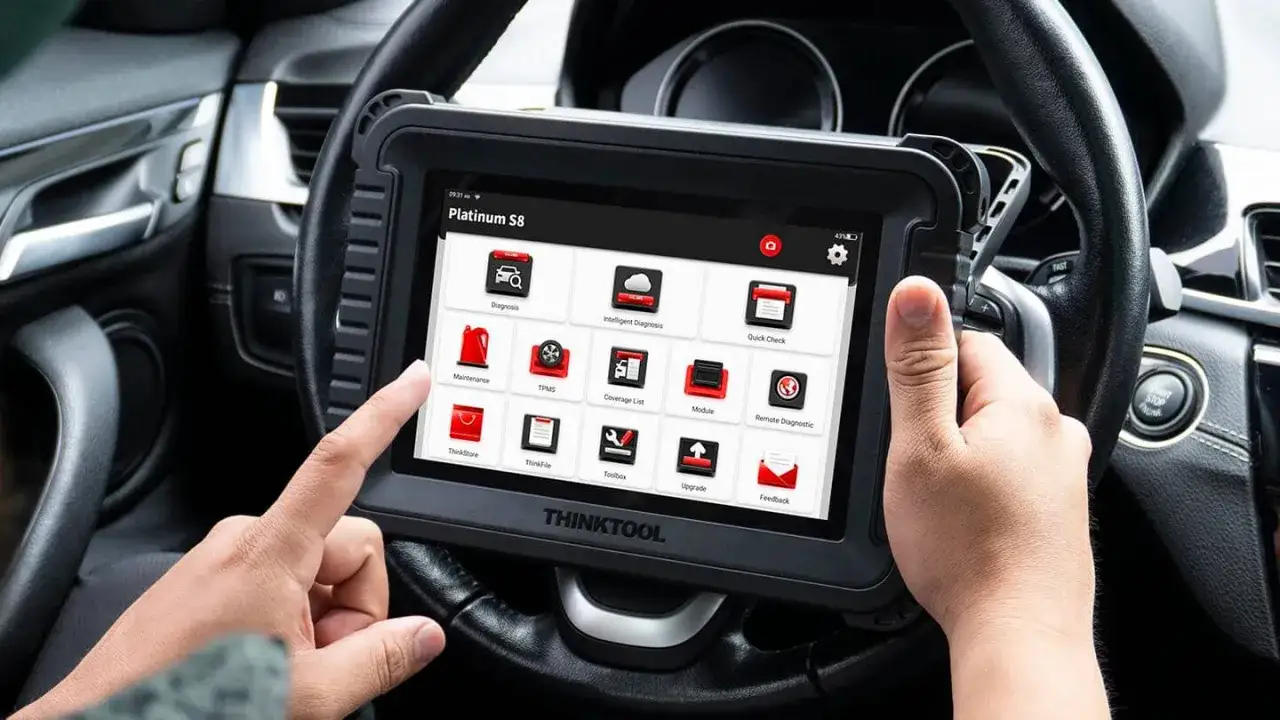

What scanners can and cannot tell you
Not all OBD tools are equal. Some are fine for a quick driveway check, while others are built for deeper diagnostics and workshop use. If I were choosing a tool for a home car owner, I would think about how much of the vehicle I want to see, not just whether the scanner can turn off a light.
| Tool type | Best use | What it usually reads | Main limitation |
|---|---|---|---|
| Basic code reader | Quick fault check | Stored emission-related codes, sometimes pending codes and a few live values | Limited system access, little or no guided testing |
| Bluetooth OBD dongle with app | Regular DIY monitoring | Codes, live data, graphs, readiness status, basic sensor trends | App quality varies and data depth depends on the vehicle |
| Professional scan tool | Workshop diagnosis | Multiple control modules, live graphs, adaptations, bidirectional tests | Higher cost and a steeper learning curve |
Bidirectional testing is worth explaining because it is where serious diagnostics start to feel different. It means the scan tool can command a component to do something, such as cycle a valve or switch on a fan, instead of only reading what the car reports. That does not automatically fix the fault, but it gives you a much better way to prove whether the ECU, wiring, or component is doing its job.
The biggest mistake I see is people clearing codes too early. If you erase the fault before checking freeze-frame data or live readings, you may remove the exact clue that would have pointed you to the cause. A scan tool should narrow the problem, not hide it. That matters even more in the UK, where OBD data sits alongside emissions and roadworthiness checks.
How OBD fits the UK MOT picture
In the UK, OBD is closely tied to emissions control, which is why it comes up so often around the MOT. The system helps identify faults that affect how cleanly the engine runs, and it can support the testing process by revealing whether the vehicle’s own monitors are ready and whether a fault is still present. It is useful, but it is not a replacement for a proper inspection or a tailpipe test where those checks are required.
That distinction matters. A car can sometimes feel acceptable to drive and still have an emissions-related fault stored in the ECU. Equally, a recently cleared code may disappear from the dash while the underlying issue remains unresolved. If a battery has been disconnected or the codes have just been erased, the readiness monitors may need time and a proper drive cycle before they show that the systems have rechecked themselves.
For UK owners, the practical takeaway is simple: if the engine management light is on, or if a garage says an emissions monitor is not ready, OBD gives you a reasoned starting point. It helps explain whether the problem is current, historical, or still waiting to be confirmed. Once you know that, the next step is deciding what to check first.
What I would check before replacing parts
When a fault appears, I work from the simplest, most evidence-based checks first. That keeps diagnosis honest and avoids throwing parts at the car. A code only tells you which system to investigate; the actual failure can sit one step away from the obvious suspect.
- Record the symptoms - note whether the lamp is steady or flashing, whether the engine runs rough, and what the car was doing when the light appeared.
- Read the stored and pending codes - do this before clearing anything, and save the freeze-frame data if the tool shows it.
- Check the easy causes first - loose connectors, damaged wiring, split vacuum hoses, oil contamination around sensors, and, on some petrol cars, EVAP-related issues such as a poor fuel cap seal.
- Look at live data - fuel trims, coolant temperature, oxygen sensor behaviour, and misfire counters often reveal more than the code label itself.
- Decide whether the fault is safe to keep driving - a flashing warning lamp, heavy misfiring, or a strong fuel smell deserves immediate attention.
That process sounds basic, but it works. It is also where OBD becomes genuinely useful rather than just impressive. If the car gives you a code and the basic checks line up with the symptoms, you are on the right path. If the code points one way and the live data points another, you have probably found the reason the first assumption was wrong. The final step is keeping that knowledge for the next time the car misbehaves.
The habit that makes the data useful
The most useful OBD habit is simple: keep a small record of the code, mileage, date, and repair outcome. I do this myself because patterns matter. A fault that returns after 200 miles tells a different story from one that never comes back after a connector is reseated or a hose is replaced.
After a repair, do not just clear the light and forget it. Recheck the vehicle after a proper drive, confirm that the warning does not return, and make sure the readiness monitors complete again if the car needs to be tested. That one extra step often separates a temporary reset from a real fix.
Used properly, OBD gives you the shortest route from a warning light to a sensible decision. It will not replace mechanical inspection, but it will make that inspection sharper, faster, and far less guesswork-driven. That is the real value of on-board diagnostics in everyday car care.
