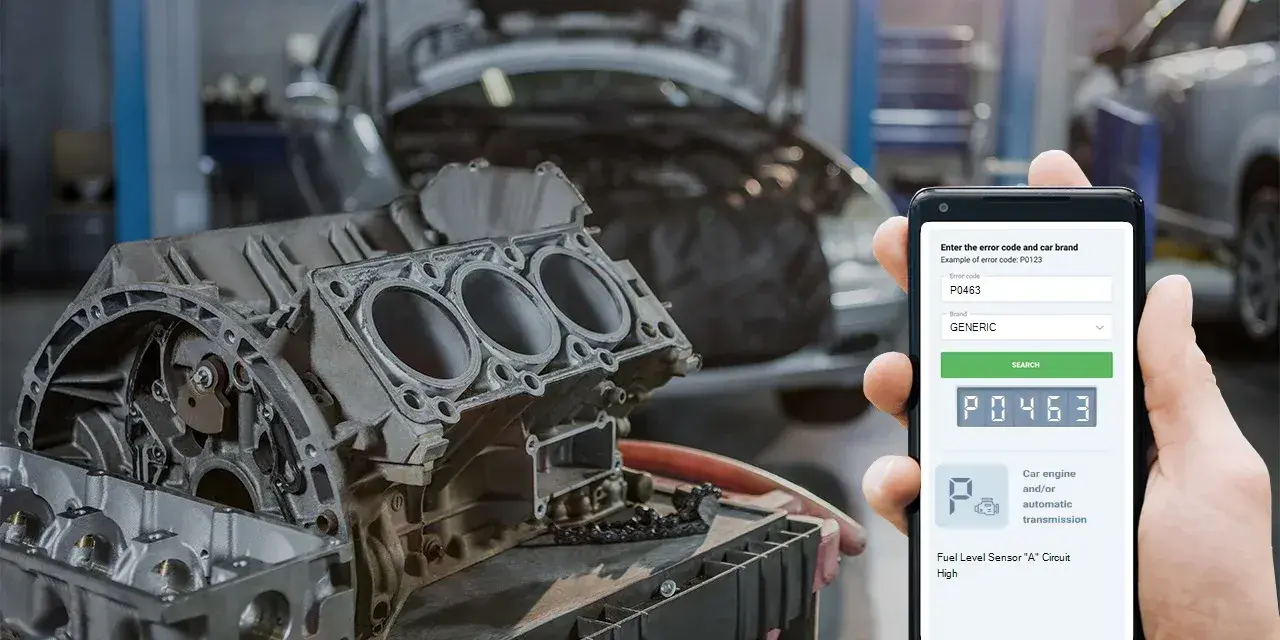

The p0463 code usually points to a fuel level signal that is reading too high, which is why the gauge can stick on full, jump around, or behave as if the tank has a mind of its own. I treat this as a circuit problem first, not a dashboard problem, because the cheapest fixes are often hidden in the connector, ground, or harness rather than the gauge cluster itself. This article breaks down what the fault means, the symptoms to watch for, the most likely causes, a practical diagnostic sequence, and the repair costs you can expect in the UK.
The essentials at a glance
- This fault usually means the fuel level sender circuit is reporting an abnormally high signal, often because of an open circuit, poor ground, or damaged wiring.
- The gauge may read full, empty, or erratically even when the fuel in the tank is normal.
- I would check the tank-top connector, harness, and earth path before replacing the sender or instrument cluster.
- UK diagnostic pricing is often in the £50 to £180 range, with dealer-level work usually sitting at the upper end.
- Many repairs are straightforward, but if the sender is integrated into the fuel pump module, labour can climb quickly.
- If the warning lamp stays on, it is worth fixing sooner rather than later, especially before an MOT.
What the fault is actually telling you
On most cars, the fuel level sender is a variable resistor attached to a float arm in the tank. As the fuel level changes, the resistance changes, and the control module turns that into a gauge reading. When the circuit goes high, the module sees a signal that is above the expected range, so it assumes the sender circuit is open, disconnected, or otherwise not behaving normally.
That is why this fault can look strange from the driver’s seat. In some vehicles the gauge snaps to full, in others it drops to empty, and on a few it wanders around as the circuit opens and closes intermittently. I always remind people that the dashboard is only showing the result of a measurement. The real issue is usually in the sender, the wiring, the earth point, or the module interpreting the signal.
There is one detail that catches people out: the fuel gauge problem may be the only symptom. The engine can run perfectly while the fuel level reading becomes unreliable, which is exactly why this code is easy to ignore for too long.
The symptoms that usually show up first
| Symptom | What it usually suggests | What I would check first |
|---|---|---|
| Gauge stuck on full | Open circuit, disconnected plug, or sender fault | Tank connector, harness, and sender resistance |
| Gauge reads empty all the time | Signal interpretation issue or a failed sender path | Ground path and signal wire continuity |
| Needle jumps around | Loose connection, corroded terminal, worn sender track | Wiggle test and live data while the car is stationary |
| Fuel warning lamp or range estimate is wrong | The module cannot trust the sender input | Related codes and module data |
| Check engine light stays on | The fault is stored in powertrain memory | Confirm whether the code returns after clearing |
In the UK, that illuminated warning lamp matters for more than convenience. As gov.uk notes, the malfunction indicator lamp is checked on many vehicles during the MOT, so a fault that keeps it lit can become a test-day problem as well as a fuel-gauge annoyance.
What I look for next is whether the problem is constant or intermittent. A hard failure usually points to wiring, a connector, or a dead sender. An intermittent one often turns out to be corrosion, vibration, or a harness that only opens when the tank moves or the car hits a bump.
The causes I would check in order
I do not start by blaming the fuel pump module. That is the expensive part, and it is not the first thing I want to touch unless the evidence points there. The order below saves time and usually saves money too.
| Likely cause | Why it triggers a high-input fault | Why it matters |
|---|---|---|
| Open signal wire | The module sees no valid sender signal and interprets the circuit as too high | Common after corrosion, repair work, or a damaged loom |
| Loose or corroded connector | Resistance rises or the circuit opens briefly | Very common on older cars and vehicles used in wet, salty conditions |
| Failed sender unit | The resistor track or float arm no longer gives a stable reading | Often shows up as erratic gauge movement before complete failure |
| Bad earth connection | The circuit cannot complete properly, so the signal floats high | One of the easiest faults to miss if you only scan codes |
| Damaged tank or harness | Impact, road debris, or poor prior repair work can damage the wiring | Important if the fault appeared after underbody work or a minor collision |
| Instrument cluster or control module fault | The sender may be fine, but the reading is being misread or misprocessed | Less common, but it becomes more likely after wiring checks pass |
One pattern I see often is a car that had a fuel pump replacement, then develops a fuel level issue afterwards. That does not automatically mean the new part is bad. It can be a pinched wire, an unplugged connector, or a poor earth left behind during the job. The repair history matters.
A sensible diagnostic routine
- Confirm the complaint with the actual fuel level. If the tank is nearly full, do not trust a gauge that says empty. If the tank is near empty, do not assume full means the sender is healthy.
- Scan all relevant modules, not just the engine computer. On some cars the fuel level signal is handled by the instrument cluster, body module, or fuel pump control module.
- Look for related codes. Codes such as P0460, P0461, P0462, and P0464 can help narrow the fault to a general sender problem, a range issue, a low input, or an intermittent connection.
- Inspect the connector and wiring at the tank. This is where I find the most obvious damage: green corrosion, loose terminals, rubbed-through insulation, or a connector that was never fully seated.
- Check the earth path properly. A quick visual look is not enough. A high-resistance ground can behave like a bad sender even when the part itself is fine.
- Watch live data while moving the harness. If the reading jumps when you wiggle the loom, you have probably found the area of concern.
- Test against manufacturer specifications. The resistance values vary by vehicle, so I never assume a universal reading is correct. A wiring diagram and a multimeter matter more than guesswork.
- Only then consider tank removal or module replacement. If the tests point to the sender inside the tank, that is the point where the job becomes more involved.
The biggest mistake I see is parts swapping. A new sender will not fix a broken ground, and a new cluster will not fix a corroded connector. A ten-minute inspection and a proper resistance test are usually worth more than a quick code read.
What the repair bill usually looks like in the UK
RAC currently lists a flat diagnostic fee of £99, which is a useful benchmark for a straightforward code investigation. In the real world, most UK garages will price this fault by labour time, not by the code itself, because the final bill depends on how easy the sender and wiring are to reach.
| Repair or test | Typical UK cost | What affects the price |
|---|---|---|
| Initial diagnostic scan and inspection | £50 to £180 | Garage type, region, and whether live data testing is included |
| Connector cleaning or minor wiring repair | £40 to £150 | Access to the tank-top connector and amount of corrosion |
| Ground repair | £60 to £180 | How easy it is to reach the earth point and whether the loom is damaged |
| Fuel level sender replacement | £150 to £400 | Whether the sender is separate or built into the pump module |
| Fuel pump module replacement | £300 to £900+ | Tank access, part quality, and whether calibration or coding is needed |
| Instrument cluster or module repair | £150 to £600+ | Vehicle make, coding requirements, and whether the unit can be repaired rather than replaced |
Those numbers are not random. They reflect the reality that a simple wiring repair can be quick, while a sender that is integrated into the fuel pump may require tank lowering, fresh seals, and more labour than the part itself. If the car needs dealer-level coding afterwards, the cost climbs again.
My practical rule is simple: if the diagnosis is still unclear after a basic wiring inspection and a proper scan, pause before ordering expensive parts. That is where owners often spend money twice.
Whether it is safe to keep driving
Most of the time, this fault does not stop the car from running, so the immediate safety risk is lower than with a brake or cooling-system failure. That said, I would not dismiss it. A wrong fuel reading can leave you stranded, and a circuit fault that started as a gauge issue can be the first sign of a loom or connector problem that will get worse.
If the gauge is unreliable, I would keep the tank topped up more conservatively and avoid running the fuel level too low until the problem is fixed. That is especially true on vehicles where the fuel pump relies on being submerged for cooling. If you also have a fuel smell, wet underbody area, stalling, or hard starting, stop treating it as a simple warning-light issue and inspect it properly.
For an MOT, the warning lamp itself is enough reason to sort the fault out in advance. Even if the car drives normally, a lit MIL is not something I would leave until the test appointment.
The quickest route to a reliable fix
If I were working through this fault in a workshop, I would start at the tank connector, the harness, and the earth point every single time. That order is boring, but it works. It finds the cheap problems first and protects you from replacing a sender, pump module, or cluster before the evidence justifies it.
The cleanest repair path is usually this: confirm the gauge error, inspect the wiring, test the sender, and replace only the part that fails the test. Once the repair is done, clear the code, road-test the car, and check that the gauge behaves across a full tank cycle. That final step matters more than people think, because some faults only reappear when the tank level changes.
When the fault is handled properly, the fuel gauge becomes boring again, which is exactly what you want from it.
