A speedometer not working is more than a dashboard nuisance: it can point to a failed sensor, a wiring break, a cluster fault, or a network problem between modules. In this guide I break down the symptoms, the quickest diagnostic checks, the parts that usually fail, and what the repair typically costs in the UK. I’m keeping it practical, because the fastest fix is usually the one that follows the signal path instead of guessing at parts.

What the fault pattern usually tells me

The first thing I do is separate a complete failure from an inaccurate reading. Those two problems often look similar to the driver, but they usually come from different places in the system. A dead gauge, an erratic gauge, and a speedometer that reads the wrong speed are not the same fault, even if the road symptom feels identical.

That distinction matters because it tells me whether I should start at the dash or at the sensor. Once the symptom pattern is clear, the rest of the diagnosis becomes much more efficient.

How I narrow the fault without guessing

My preferred order is simple: confirm the symptom, read the codes, compare live data, and only then start pulling trim or replacing parts. Modern speed signals are often shared between the instrument cluster, the ABS system, the transmission, and the ECU, so one bad connection can create a chain of apparently unrelated faults.

1. Check whether other gauges still work. If the fuel gauge, rev counter, and warning lamps are also dead, I look harder at cluster power, earth, or internal failure.
2. Read the fault codes before clearing anything. P0500, P0501, P0502, and P0503 are all useful clues, and wheel-speed or ABS codes can point you in the same direction.
3. Look at live vehicle speed on the scanner. If the live data moves but the dash does not, the signal is reaching the car and the problem is more likely in the cluster or its communication path.
4. If live data is missing or flatlined, I work backwards from the sensor and wiring.
5. Do a light wiggle test on accessible looms and connectors while watching live data. If the reading flickers, you’ve probably found an intermittent connection.
6. Check whether the fault appeared after wheel work, a battery change, water ingress, or an aftermarket radio install. Those are common trigger points for wiring and communication issues.

One useful rule of thumb: if the dash is wrong but the scan tool shows a correct road speed, the cluster deserves attention before anything else. If the scan tool cannot see speed at all, I stop looking at the needle and start looking at the signal source.

The main causes and how they behave

Most speedometer faults fall into a small number of categories. I find it helpful to think in terms of the signal chain: sensor, wiring, module, cluster, and network. When any one of those breaks, the dash can go blank, become erratic, or display a speed that makes no sense.

• Failed vehicle speed sensor - Common on older cars with a transmission-mounted sender. If it dies completely, the speedometer and odometer may stop together, and the ECU may store a speed-sensor code.
• Wheel speed sensor fault - Very common on newer vehicles where speed is derived from the ABS system. If one sensor goes noisy or open-circuit, the speed reading can drop out and ABS or traction control lights often join in.
• Damaged wiring or connectors - Broken insulation, corrosion, moisture, and stretched looms can cause a fault that comes and goes. I always pay attention to symptoms that appear after rain, potholes, or recent repairs.

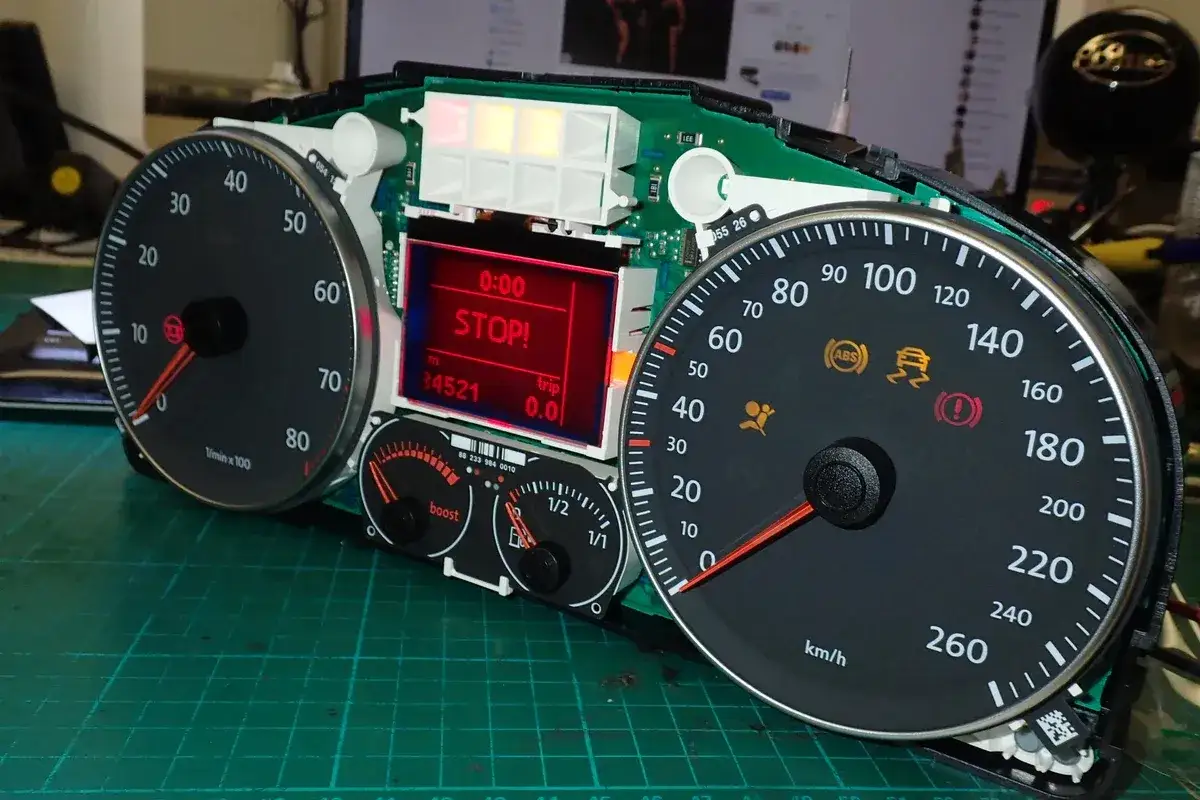

• Instrument cluster failure - The gauge motor, circuit board, or internal solder joints can fail. This is especially likely if several gauges misbehave together or the cluster lights up but the speed needle stays dead.
• Reluctor ring or tone wheel damage - If the ring the sensor reads is damaged, dirty, or moving out of alignment, the signal can be erratic even when the sensor itself is fine.
• CAN bus or module communication issue - On some cars the data is present, but the cluster never receives it properly. That is less common, but it is where a lot of people waste money by replacing the wrong component.

In practice, the biggest mistake is assuming the dash is the fault just because the dash is the thing you can see. Sometimes that is true, but I want proof before I say so. The next section covers the checks I am happy for an owner to do at home before booking a garage.

Checks you can do at home

There is plenty you can verify without specialist tools, and the goal is not to repair everything yourself. The goal is to collect enough evidence to avoid random parts swapping. If the fault is electrical, small clues matter more than a guess.

• Confirm battery and charging voltage - With the engine off, a healthy battery is usually around 12.4V to 12.7V. With the engine running, you normally want roughly 13.5V to 14.8V. If the car is outside that range, chase charging or low-voltage issues first.
• Check fuses properly - Do not rely on a quick visual check alone. A fuse can look intact and still fail under load. If you are unsure, test both sides of the fuse with a meter or test light.
• Inspect connectors and earth points - Look for green corrosion, bent pins, water staining, or a connector that does not lock firmly. A slightly loose plug can create a fault that appears random for weeks.
• Note when the fault happens - If it fails only in the wet, after a bump, or once the car is warm, that pattern is useful. I would trust a well-observed symptom more than a vague description.
• Use a basic OBD scanner if available - Even a simple reader can tell you whether speed-related codes are stored. If you have live data, compare the scanner’s speed reading with the dash.
• Watch the ABS and traction lights - If they come on with the speedometer fault, I would look hard at wheel sensors, hubs, and tone rings before I think about the instrument cluster.

These checks are cheap and often revealing, but they have limits. If the fault is intermittent or hidden inside the cluster, home testing may only take you part of the way. That is where repair cost becomes the next practical question.

What the repair usually costs in the UK

Pricing varies by model, access, and whether the fault sits in a sensor, a connector, or the cluster itself. For 2026 planning, these are the ranges I would use in the UK before getting a quote from a garage.

Those figures are planning numbers, not quotes. What changes the bill most is whether the garage has to diagnose first, whether the part needs coding, and whether the fault lives in an awkward place such as a gearbox, hub, or sealed dash unit. I would rather pay for a proper trace than replace a cluster that was never the cause.

Why you should not leave it for later

I would not treat a failed speedometer as a minor inconvenience. In the UK, GOV.UK states that the MOT checks the speedometer and that a clearly non-working one can be a major defect. The legal requirement is also stricter than many drivers realise: most motor vehicles must be fitted with a speedometer capable of indicating speed, and for a driving test the car must have an officially fitted mph speedometer.

There is also a practical safety side to this. On many modern cars, the same speed signal feeds cruise control, transmission shift logic, stability systems, or driver-assistance functions. If the speed signal disappears completely, the car may not just lose the needle; it may also throw warning lights or change how it drives. A phone app can help you limp along temporarily, but it is not a proper repair and it is not a substitute for a working fitted speedometer.

So if the fault is persistent, I would treat it as a proper diagnostic job rather than a cosmetic one. The longer you drive without fixing it, the more likely you are to miss a related fault that is already building in the background.

The last checks I would make before ordering parts

When I get to the point of ordering parts, I want the fault narrowed to one of three buckets: signal source, wiring and communication, or cluster output. That saves money and prevents the common mistake of replacing the most visible component first.

• Document the failure - Does it fail cold, hot, wet, or after a bump? That detail can point straight to a connection or sensor problem.
• Keep the codes before clearing them - A stored speed or ABS code is often the best evidence you will get from the car.
• Compare live speed with the dash - If live data is correct but the gauge is wrong, I suspect the cluster or its coding. If live data is missing, I move back toward the sensor and wiring.
• Check for recent modifications - Aftermarket radios, remote starters, alarms, and even poorly routed accessories can interfere with the speed signal or the bus network.
• Ask for the test path, not just the part number - A good garage should be able to explain why the sensor, loom, cluster, or module was blamed.

That is the approach I trust: identify the pattern, verify the signal, then replace the part that actually failed. If you do those steps in order, a faulty speedometer usually becomes a manageable repair instead of an expensive guessing game.
