A blown fuse usually means one circuit drew more current than it should, and the real job is to find out why. In this guide I break down the symptoms that actually point to a fuse issue, the checks I would make first, and the signs that tell me the problem is deeper than a quick swap. I’m keeping it practical for UK drivers, with enough detail to separate a cheap fix from a circuit fault that needs proper tracing.
What matters most before you touch the fuse box
- A fuse is a safety device, not the root cause of the fault.
- One dead accessory usually points to a local circuit problem, not a whole-car electrical failure.
- If the replacement fails again, I start looking for a short, moisture ingress, or an overloaded add-on.
- Never fit a higher-amp fuse just to keep the circuit alive.
- In the UK, a basic diagnostic scan is often around £30-£60, while a fuller electrical investigation is commonly £80-£150+.
What a fuse actually protects and why it opens
I like to start with the simple part: a fuse is designed to fail before the wiring does. When the circuit draws more current than the fuse rating allows, the metal link inside heats up and opens the circuit, which cuts power and reduces the chance of melted insulation or a fire. That overcurrent can come from a genuine overload, a short to ground, or a component that is beginning to seize and pull too much current.
In modern cars, the small plastic blade fuses do most of the work. The colour helps, but I still read the printed amperage on top before replacing anything, because the vehicle chart is the only reference that matters. The same family of fuse can protect a radio, a power socket, a heater motor, or a control circuit, but the rating must match the car's design, not a guess.
| Typical rating | Often used for | What I would think about during diagnosis |
|---|---|---|
| 5A | Interior lighting, sensors, small control circuits | Small loads, so a repeated failure often suggests a pinched wire or corrosion. |
| 10A | Radio, some lighting, control modules | Accessory faults and damaged connectors are common suspects. |
| 15A | Wipers, heated seats, some sockets | Motor start-up current can be high, so a weak motor may trip the fuse. |
| 20A | Power outlets, infotainment, some pumps | Aftermarket chargers and adapters can push these circuits too hard. |
| 30A | Blowers, heavy accessories, auxiliary equipment | If this keeps opening, I assume there is a real wiring or load problem. |
The important part is this: the fuse is the messenger. If it opens once, that may be a one-off. If it keeps opening, the circuit is telling you something is wrong upstream, and that is where the diagnosis has to go next.
The signs that point to a fuse fault and the ones that do not
I always ask what stopped working, and whether the failure is neatly contained in one circuit. A fuse problem is usually local. One window stops working, the radio goes dead, the 12V socket dies, or one lamp stops lighting while the rest of the car behaves normally. That pattern is very different from a weak battery or charging issue, where the car tends to feel generally unhealthy rather than losing one isolated feature.

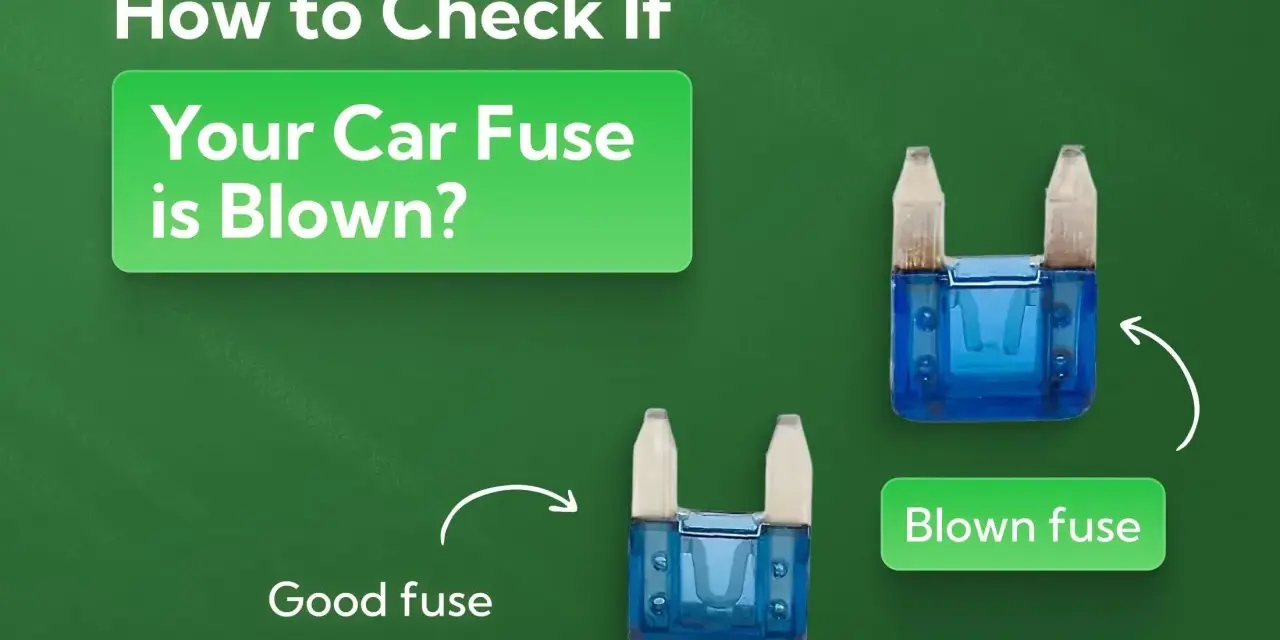

A visual check helps, but I do not rely on it alone. A fuse can look fine and still have poor contact, a cracked leg, or a damaged socket. On the other hand, a fuse that looks cloudy, blackened, or has a broken strip inside has usually done its job and opened because the circuit pulled too much current. If there is burning plastic, melting, or smoke, I treat that as a serious warning and stop using the car until the fault is checked.
| What you notice | What it usually suggests | What I would check next |
|---|---|---|
| One accessory dead, everything else fine | Local fuse, relay, switch, or wiring issue | Inspect the fuse, then test the circuit under load. |
| The fuse looks fine but the circuit still does not work | Power supply, relay, socket, or wiring fault | Check for voltage on both sides of the fuse and at the load. |
| The same fuse fails again immediately | Short circuit or severely overloaded component | Isolate the component and inspect the wiring harness. |
| Several unrelated systems fail together | Battery, charging, earth, or body control issue | Move away from the fuse and check the broader electrical system. |
| Burning smell or hot plastic near the fuse box | Heat damage or a high-resistance connection | Stop driving and inspect for melting, corrosion, or loose terminals. |
That distinction saves time. A fuse that keeps opening is not the same thing as a dead circuit, and a dead circuit is not always a fuse at all. Once I know which pattern I am dealing with, the next step is a proper trace rather than a parts guess.
How I trace the fault step by step
When I diagnose this properly, I do not start by replacing parts. I start by identifying the exact circuit, because modern cars often have more than one fuse box and the fuse map changes with trim level, engine type, and option packs. The owner's manual or the fuse chart on the cover is the right reference, not a generic diagram from the internet.
- Find the fuse chart for the exact car and identify the circuit that matches the failed feature.
- Confirm the symptom under the same conditions. An intermittent fault often only appears with vibration, heat, rain, or load.
- Remove the fuse and inspect the element, the blades, and the socket. A damaged socket can mimic a failed fuse.

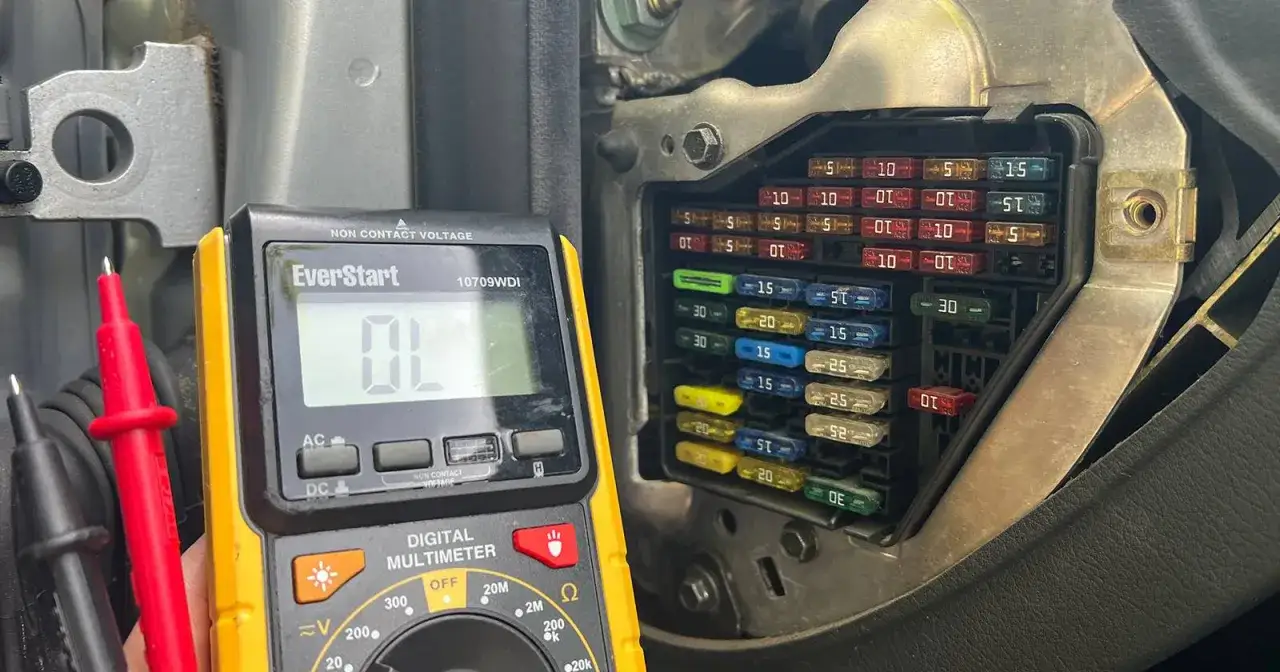

- Test for continuity or use a test light or multimeter to check whether the fuse is actually carrying power.
- Replace it only with the same amperage and the same physical type.
- Re-test the circuit immediately. If it fails again, I stop treating it like a simple fuse change.
- Isolate add-ons and recent repairs, including dash cams, phone chargers, tow-bar wiring, LED conversions, and aftermarket alarms.
There is one technical point I find useful here: a short to ground means current is escaping into the bodywork or chassis before it reaches the load. That is why a fuse can fail instantly the moment power is applied. If the replacement also fails instantly, I assume the short is still present and trace the harness, connectors, and component one by one.
I also stay cautious around safety systems. If the fuse relates to airbags, ABS, steering assistance, or another high-priority circuit, I do not turn that into a casual DIY job. Those systems deserve proper fault-finding equipment and a more careful approach.
When replacement is enough and when it is not
Some faults really are one-off events. A cheap charger can overload a power socket, a wet connector can trip a circuit once, or a tired accessory can momentarily draw too much current. In those cases, replacing the fuse and removing the cause may solve the problem completely. That is the good outcome, and it does happen.
What I do not accept is repeated failure with no explanation. If the same fuse opens again, I assume one of three things: the circuit is overloaded, a component is internally failing, or the wiring has a short or a damaged section. At that point, the work moves from replacement to diagnosis.
| Situation | My read on it | Practical next step |
|---|---|---|
| Fuse failed after using a known heavy accessory | Likely temporary overload | Replace the fuse, reduce the load, and monitor the circuit. |
| Fuse fails immediately after replacement | Likely short circuit | Inspect the wiring, connectors, and component before trying again. |
| Fuse fails after rain, washing, or damp weather | Possible moisture ingress or corrosion | Check seals, connectors, and the fuse box area for water damage. |
| Fuse fails only when a motor or heater is switched on | Possible failing load component | Measure current draw and test the motor or heater element. |
| Fuse fails after recent aftermarket work | Installation or wiring problem | Inspect the added circuit before blaming the factory loom. |
For UK drivers, the money side matters too. A basic diagnostic scan is often in the £30-£60 range, while a fuller electrical investigation is commonly £80-£150+ depending on the garage and the vehicle. A basic OBD reader starts at roughly £20, and a small assortment of replacement blade fuses is usually only a few pounds. That gap is why I do the simple checks first, but it is also why I do not waste time when the fault is obviously deeper.
The small habits that prevent repeat electrical faults
After I have fixed a fuse-related issue, I always think about prevention. The easiest habit is to keep the right spare fuses in the car, along with a small fuse puller and, if possible, a compact test light. That does not make you a technician, but it does make the next check faster and less messy when a circuit dies on a wet evening in a car park.
- Keep a small assortment of the fuse types your car actually uses.
- Write down which circuits are important before you forget the layout.
- Check aftermarket accessories for their own inline fuse and proper wiring.
- Avoid overloading one socket with splitters, chargers, and heated gadgets.
- Look for corrosion or moisture if a fault appears after rain or washing.
- Never bypass a fuse with foil, wire, or a higher rating.
The pattern I trust most is simple: one circuit, one failure, one real cause. Once the same fuse keeps opening, I stop thinking like a parts changer and start thinking like a fault finder. That shift usually saves the most time, avoids repeat breakdowns, and keeps a small electrical problem from turning into a much bigger repair.
