Lithium Jump Starter - How It Works & Why It Matters

A lithium jump starter is one of those tools that looks simple until you need it to rescue a flat battery on a cold morning. The real story is more interesting: a compact lithium pack, a control board, and a set of protected clamps work together to deliver a short, controlled burst of starting current to the vehicle. In this article, I explain how that process works, what the safety electronics are doing, where these units excel, and where they still have limits.

What a lithium jump starter is actually doing

At the simplest level, the unit gives the vehicle battery and starter circuit a temporary lift. It does not “repair” a dead battery and it does not keep the engine running by itself. Once the starter motor turns the engine over and the engine fires, the alternator takes over and begins recharging the vehicle battery in the normal way.

That is why I think of a lithium jump starter as a high-current bridge, not a charger. The goal is to supply enough instant power for cranking, ignition, and engine management long enough for the engine to start. In a healthy 12V system, that window is measured in seconds, not minutes.

What the pack does	What it does not do
Delivers a short burst of current to help crank the engine	Fully recharge a deeply discharged vehicle battery on the roadside
Support the vehicle long enough for the alternator to come online	Fix an internal battery fault, starter fault, or charging-system problem

That distinction matters because many disappointed owners expect the pack to behave like a portable charger. It is not built for that job. Once you separate “starting assistance” from “battery charging”, the rest of the technology makes a lot more sense, and the chemistry inside the pack becomes the next piece of the puzzle.

Why lithium chemistry can deliver a start from such a small box

The compact size is the main reason these units took off. Lithium-based cells store a lot of energy for their physical size, and they can release that energy very quickly when the design allows it. That quick release is the part most people miss. A jump starter is not just a battery with clips attached; it is a battery selected and built for high discharge.

I usually separate the numbers people see on the box into four different ideas:

Spec	What it really means
mAh	How much energy is stored, not how strong the starting burst will be
Peak amps	The short burst available for cranking
C rating	How aggressively the cells can discharge and recharge
Temperature range	How well the pack performs when the weather works against it

This is why two packs with the same advertised capacity can feel very different in the real world. A larger mAh number does not automatically mean stronger starting performance. In practice, cell quality, internal resistance, and the way the pack is assembled matter just as much. I would rather trust a well-designed unit with honest output than a flashy number that only looks good on a spec sheet.

Clore Automotive’s discussion of lithium jump starters makes the same point: a higher C rating means the pack can deliver more starting power, and capacity alone does not tell the whole story. That is the technical reason some small units can crank a car while bigger-looking packs struggle. Once you understand that, the next question is safety, because high discharge and safety have to coexist in the same housing.

The protection electronics are what keep the unit useful instead of dangerous

The brain of the jump starter is usually a battery management system, or BMS, plus clamp electronics that decide when power can flow. The BMS watches for conditions that would damage the lithium cells or the vehicle, such as over-discharge, over-current, over-temperature, and reverse polarity. If the pack senses a bad connection or an unsafe condition, it should refuse to energise the clamps.

In plain terms, the safety logic is there so the clamps are not simply “live” all the time. Modern units often behave like a gated power source: they check the connection first, then enable output only when the polarity and voltage look acceptable. That is a much better design than the old brute-force approach, because it reduces sparking and protects sensitive vehicle electronics.

• Reverse polarity protection stops current flow if the clamps are connected the wrong way round.
• Short-circuit protection limits damage if the clamps touch or the circuit collapses.
• Over-current protection prevents the pack from dumping more power than it can safely handle.
• Thermal protection keeps the electronics from overheating under load.

That logic is not magic; it is usually implemented with transistor-based blocking and control circuitry. The practical result is simple: the pack only behaves like a power source when the connection is sane. Some models also include a bypass or boost mode, but I treat that as a last resort and only if the manufacturer explicitly allows it. Once the electronics are doing their job, the usage side becomes straightforward.

How I would use one without wasting the first attempt

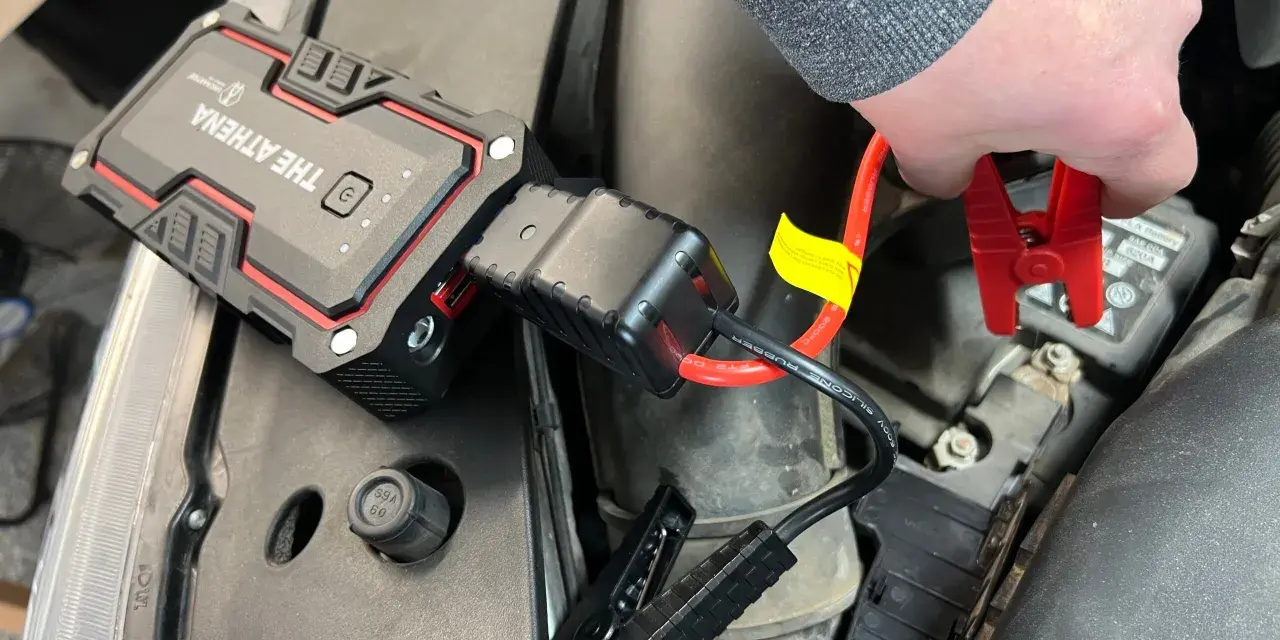

The connection sequence is simple, but it needs to be done in the right order. If the vehicle has a manufacturer-recommended remote jump point, use it. If not, connect to the battery terminals as instructed by the vehicle and jump starter manuals. The goal is a secure, clean connection with no movement in the clamps.

1. Make sure the vehicle is in park or neutral, the ignition is off, and unnecessary accessories are switched off.
2. Check that the jump starter has enough charge. I like to see at least 75% state of charge before I rely on it.
3. Attach the red clamp to positive and the black clamp to the correct ground or negative point.
4. Wait for the ready light or safety indication before cranking.
5. Crank the engine in short bursts, then stop if it does not catch quickly.
6. Once the engine starts, disconnect the unit and let the vehicle charge itself normally.

That last step matters more than people think. The jump starter is there to get the engine running, not to sit on the battery while the engine idles. After a successful start, I prefer to recharge the pack as soon as practical, because a partial state of charge reduces its next starting performance.

Antigravity Batteries says the same thing in its manuals for emergency restart features: use them for the emergency, then recharge immediately. That advice is sound for any lithium jump starter, because you want the pack ready for the next real problem, not left half-empty in the boot.

Where lithium jump starters still struggle

These units are excellent for a normal flat 12V battery, but they are not a cure-all. A jump starter will struggle if the vehicle battery is physically damaged, frozen, internally shorted, or so deeply discharged that the protection logic will not allow output. That is not a flaw so much as a limit of physics and safety design.

Cold weather is a second hard limit. Lithium cells can still work in low temperatures, but output usually falls as the temperature drops. That is one reason a pack that seems generous in summer can feel underpowered on a frosty morning. Diesel engines and larger petrol engines also ask for more cranking current than a small hatchback, so matching output to engine size still matters.

• Very flat or damaged battery may be beyond what a jump starter can revive.
• Frozen battery is a no-go; do not try to jump it.
• Wrong voltage is a hard stop. Most consumer packs are for 12V systems.
• Oversized engine may need a higher-output pack than a compact car would.
• Poor connections can mimic a dead jump starter even when the pack is fine.

So when a jump attempt fails, I do not immediately blame the lithium pack. I look at the vehicle battery age, clamp contact, terminal corrosion, and the charging system. If the car keeps needing boosts, the underlying problem is usually in the car, not in the emergency tool. That leads directly to the maintenance side, which is where these units either become dependable or become useless clutter.

How I would keep one ready for real roadside use

A lithium jump starter should be treated like emergency equipment, not like a gadget you forget about until the day it matters. My baseline rule is to top it up after use and check it every few months if it has been sitting unused. A practical target is to keep it above 75% state of charge when you expect it to perform under load.

Storage matters as well. A cool, dry place is better than a hot boot in summer or a freezing garage in winter. In UK conditions, that is more important than people admit, because repeated temperature swings are hard on both the cells and the clamps. I also inspect the cables before each use, because a damaged lead can make a good pack behave like a bad one.

• Recharge it after use instead of leaving it half-empty.
• Check the pack every 2 to 3 months if it is stored for long periods.
• Keep the clamps clean, dry, and free of corrosion.
• Do not leave it bouncing around loose in the boot.
• Replace the unit if the case, display, or protection logic behaves erratically.

That kind of discipline sounds boring, but it is exactly what makes emergency gear reliable. The best lithium jump starter is the one that still works after six months of neglect, but I would still rather not test that theory. If the pack is ready when the battery is not, the whole system feels simple in the best possible way.

The practical rule I use before I trust one on a dead car

If I had to reduce the whole topic to one sentence, I would say this: a lithium jump starter works because it combines a high-discharge lithium pack with smart protection electronics, then sends a short, controlled burst of power to the starter circuit. That is the real mechanism, and it is why these units can be small, safe, and genuinely useful at the roadside.

My own decision rule is equally simple. For a petrol hatchback, a compact unit with decent clamps and honest output is usually enough. For a larger SUV, van, or diesel, I want more headroom, thicker cables, and a pack that stays strong in cold weather. I would rather have a slightly larger unit that behaves predictably than a tiny one that only looks impressive on the box.

And if a vehicle needs boosts repeatedly, I treat the jump starter as a temporary fix, not the answer. At that point I am looking at the battery, alternator, terminals, and parasitic drain, because the emergency tool has done its job once and should not be asked to mask a real fault over and over again.
